R45313.0
R45313.0
R45313.0
R45313.0

R45313.0

UGC DOR5979536
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$378.71 CAD - $378.71 CAD
$378.71 CAD
$378.71 CAD - $378.71 CAD
$378.71 CAD

Vendu en lots de : 1

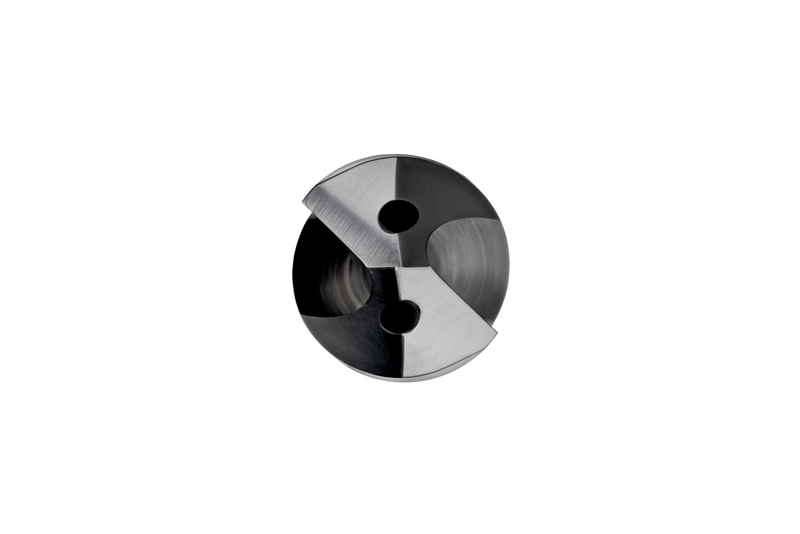

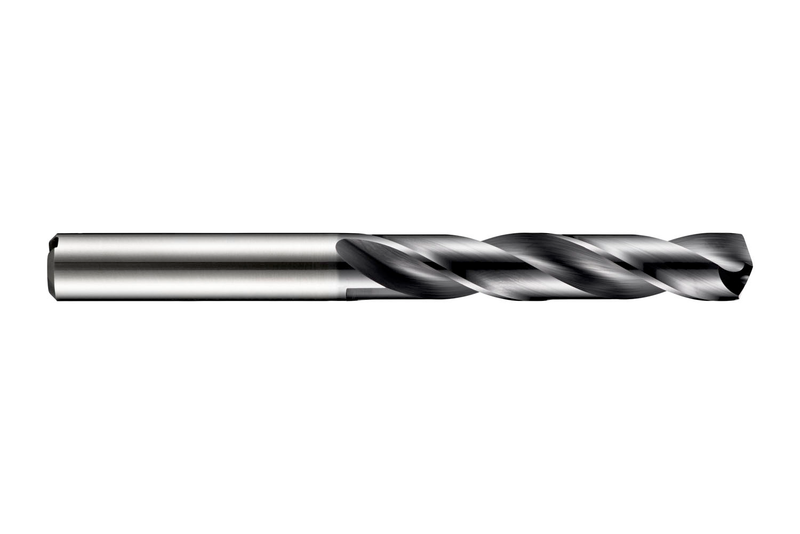

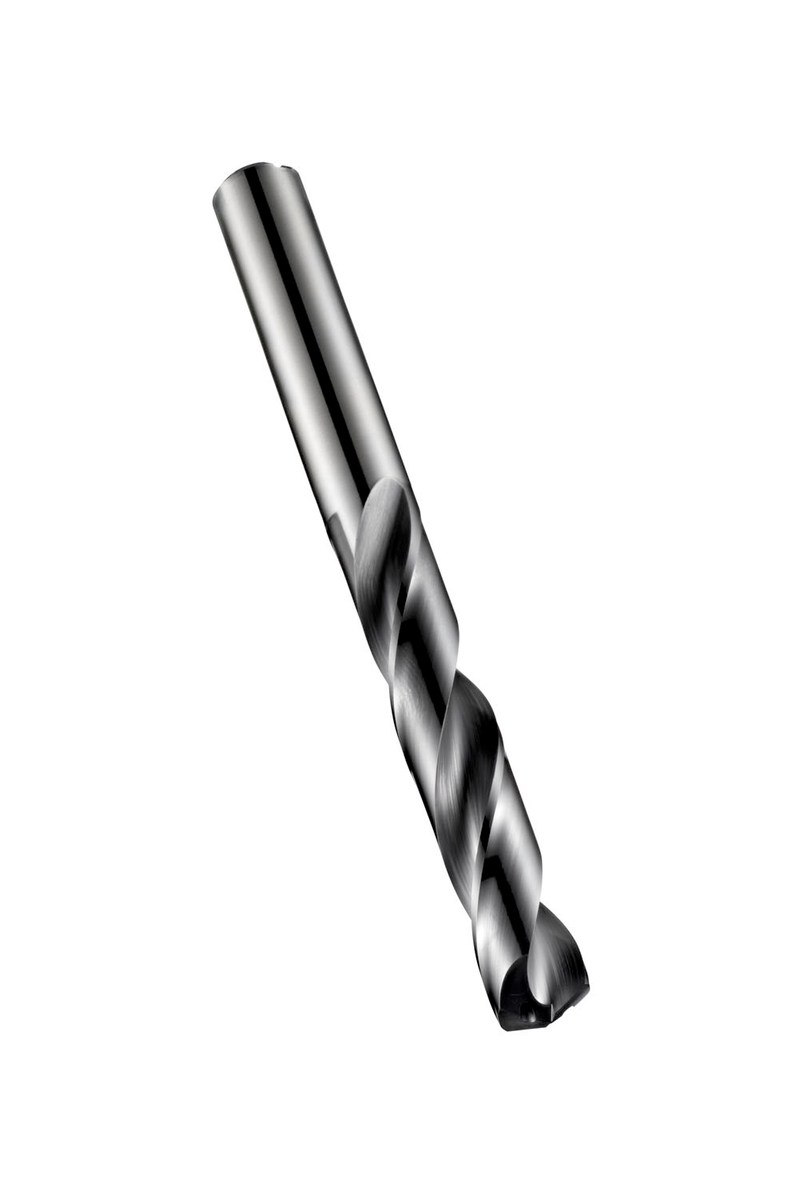

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 13mm avec une longueur totale de 124mm et une longueur de coupe de 76mm selon la norme DIN 6537 L avec une pointe 4 facettes auto-centrante modifiée de 140°, en carbure monobloc avec revêtement TiAlN, une âme affinée en continu et des trous d'arrosage intégrés pour le perçage 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les superalliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R45313.0
GradeTiAlN
Product Number5979536
Product FamilyR453
Dimensions
Cutting Diameter — in (DC)0.5118"
Cutting Diameter — mm (DC)13.0 mm
Overall Length — in (OAL)4.8819"
Overall Length — mm (OAL)124.0 mm
Flute Length — in (LCF)2.9921"
Flute Length — mm (LCF)76.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 L
Reference Numbers
EDP Number613979
EAN7320760613979
File Type Download
R45313.0 — 3D Model STP Download
R45313.0 — Line Drawing PDF Download
