UGC DOR5979559
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$541.36 CAD - $541.36 CAD
$541.36 CAD
$541.36 CAD - $541.36 CAD
$541.36 CAD

Vendu en lots de : 1

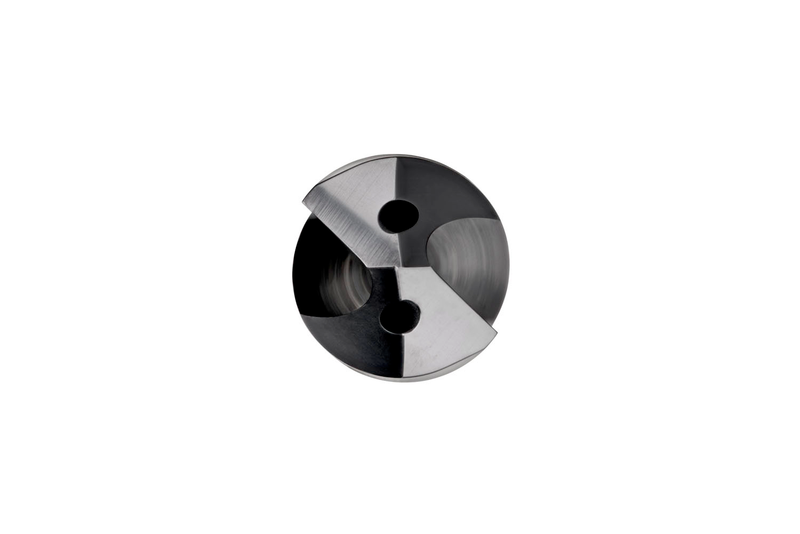

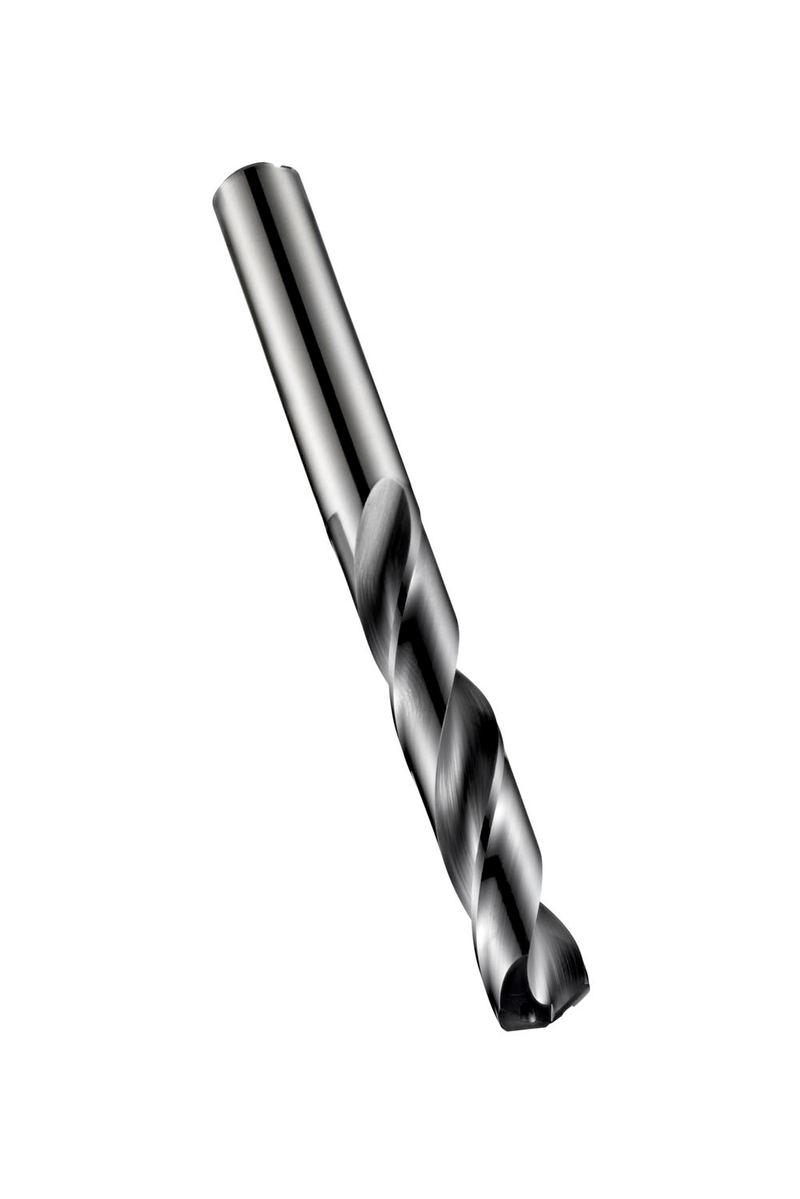

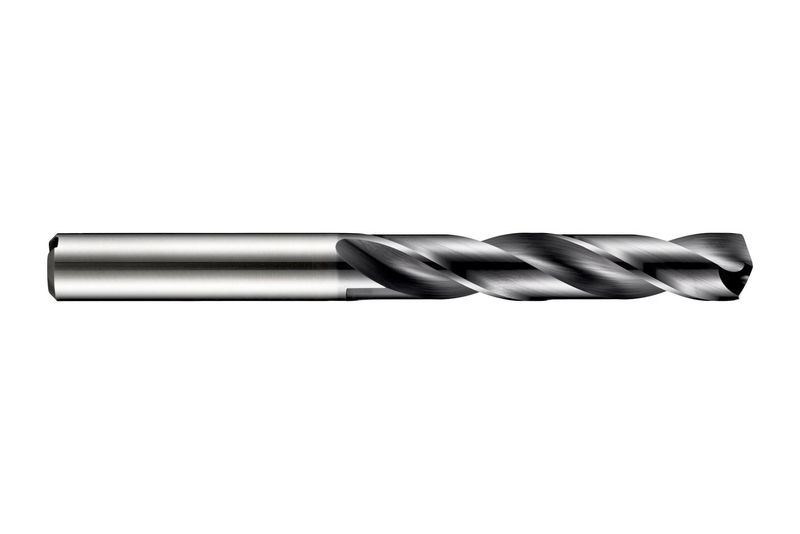

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 16mm avec une longueur totale de 133mm et une longueur de coupe de 82mm selon la norme DIN 6537 L avec pointe à 4 facettes et auto-centrante de 140° modifiée, en carbure monobloc avec revêtement TiAlN, âme amincie progressivement et arrosage central pour le perçage de 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les superalliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R45316.0
GradeTiAlN
Product Number5979559
Product FamilyR453
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — in (LCF)3.2283"
Flute Length — mm (LCF)82.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 L
Reference Numbers
EDP Number614044
EAN7320760614044
File Type Download
R45316.0 — 3D Model STP Download
R45316.0 — Line Drawing PDF Download
