UGC DOR5979570
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$378.71 CAD - $378.71 CAD
$378.71 CAD
$378.71 CAD - $378.71 CAD
$378.71 CAD

Vendu en lots de : 1

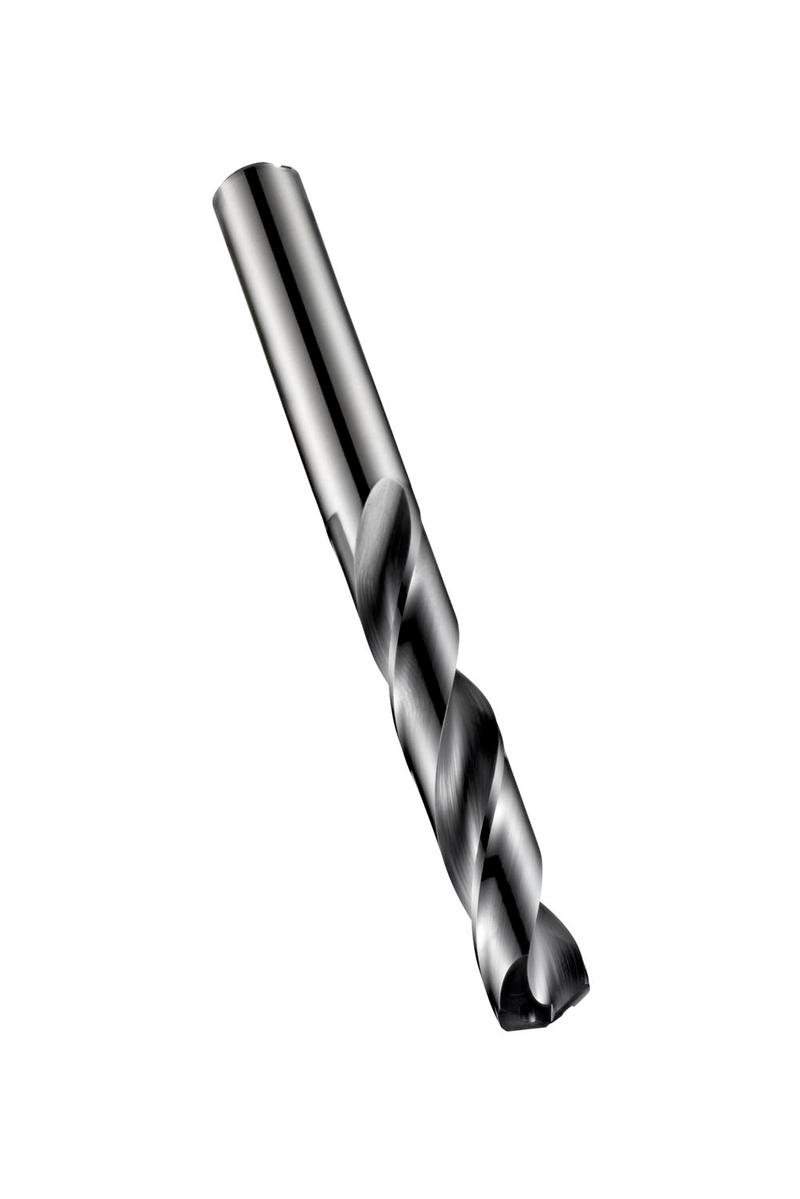

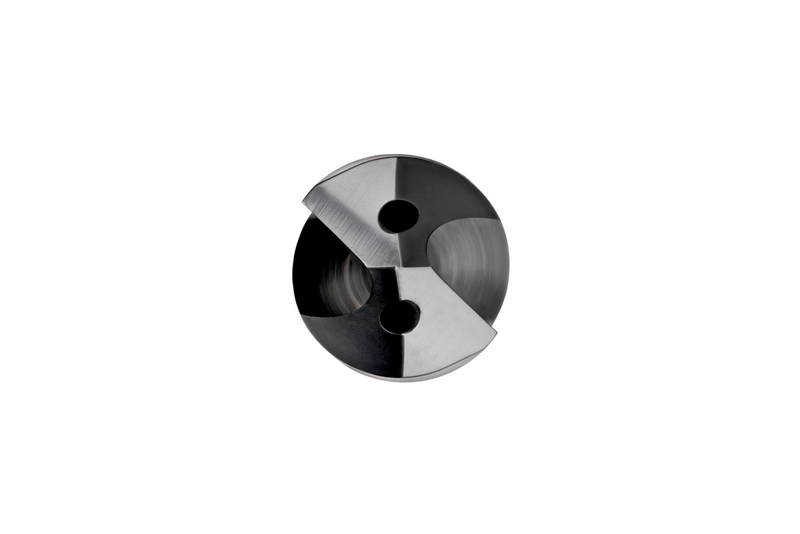

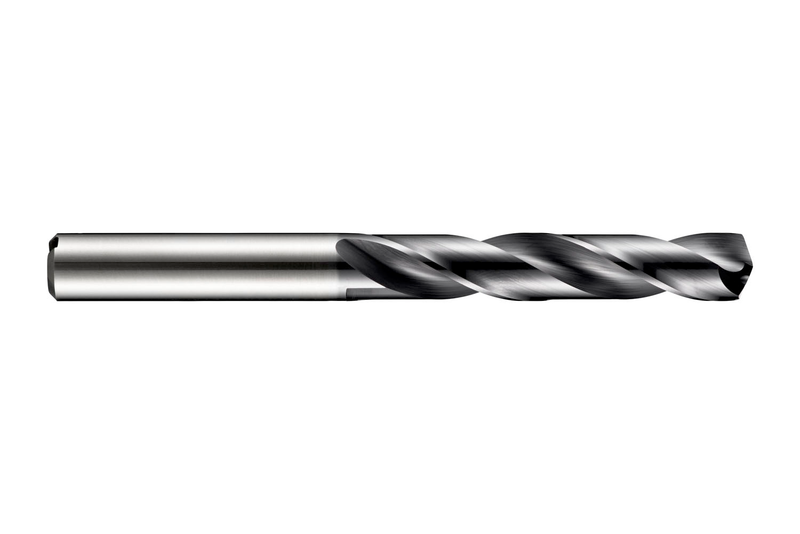

Foret FORCE X haute performance avec queue cylindrique DIN 6535HA NC, diamètre 13,5mm, longueur totale 124mm et longueur utile 76mm selon la norme DIN 6537 L avec pointe quadricoupe à 140° modifiée, carbure monobloc avec revêtement TiAlN, âme amincie en continu et arrosage interne pour perçage 5xD sans débourrage dans l'acier, l'inox, la fonte, les matériaux non ferreux, les superalliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)R45313,5
Product Name (ISO)R45313.5
GradeTiAlN
Product Number5979570
Product FamilyR453
Dimensions
Cutting Diameter — in (DC)0.5315"
Cutting Diameter — mm (DC)13.5 mm
Overall Length — in (OAL)4.8819"
Overall Length — mm (OAL)124.0 mm
Flute Length — in (LCF)2.9921"
Flute Length — mm (LCF)76.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 L
Reference Numbers
EDP Number613986
EAN7320760613986
File Type Download
R45313.5 — 3D Model STP Download
R45313.5 — Line Drawing PDF Download
