R45319.5
R45319.5
R45319.5
R45319.5

R45319.5

UGC DOR5979590
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$883.14 CAD - $883.14 CAD
$883.14 CAD
$883.14 CAD - $883.14 CAD
$883.14 CAD

Vendu en lots de : 1

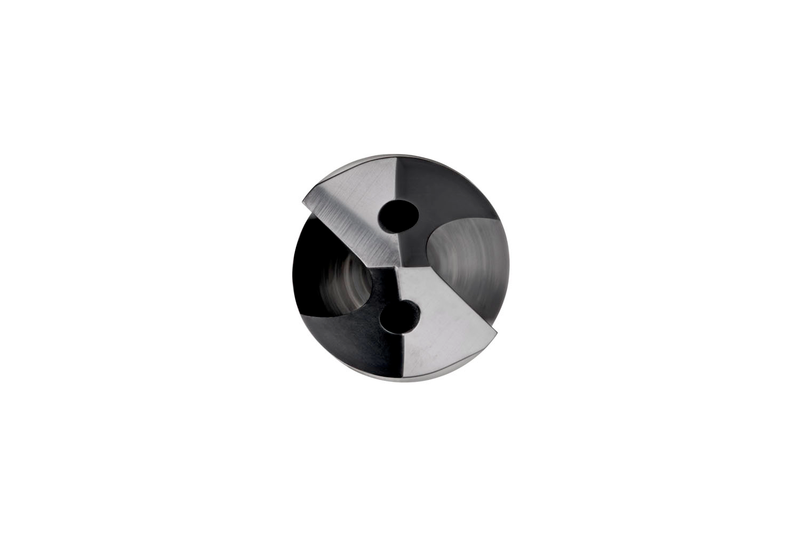

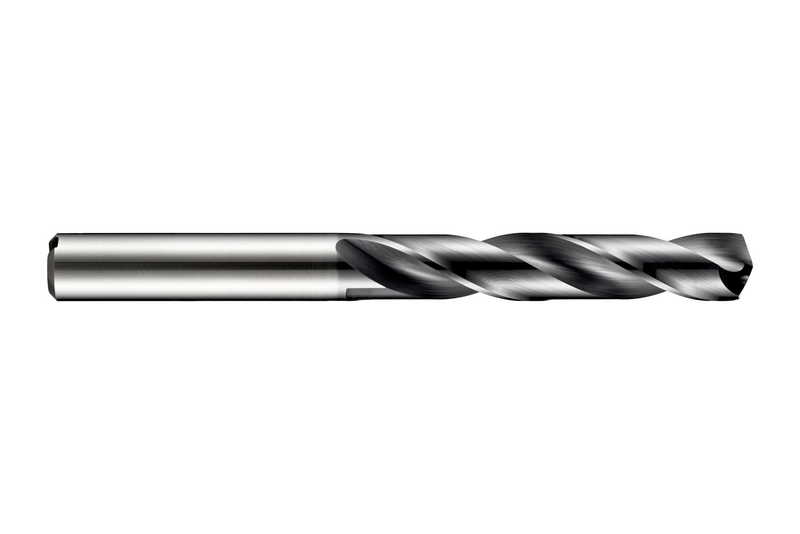

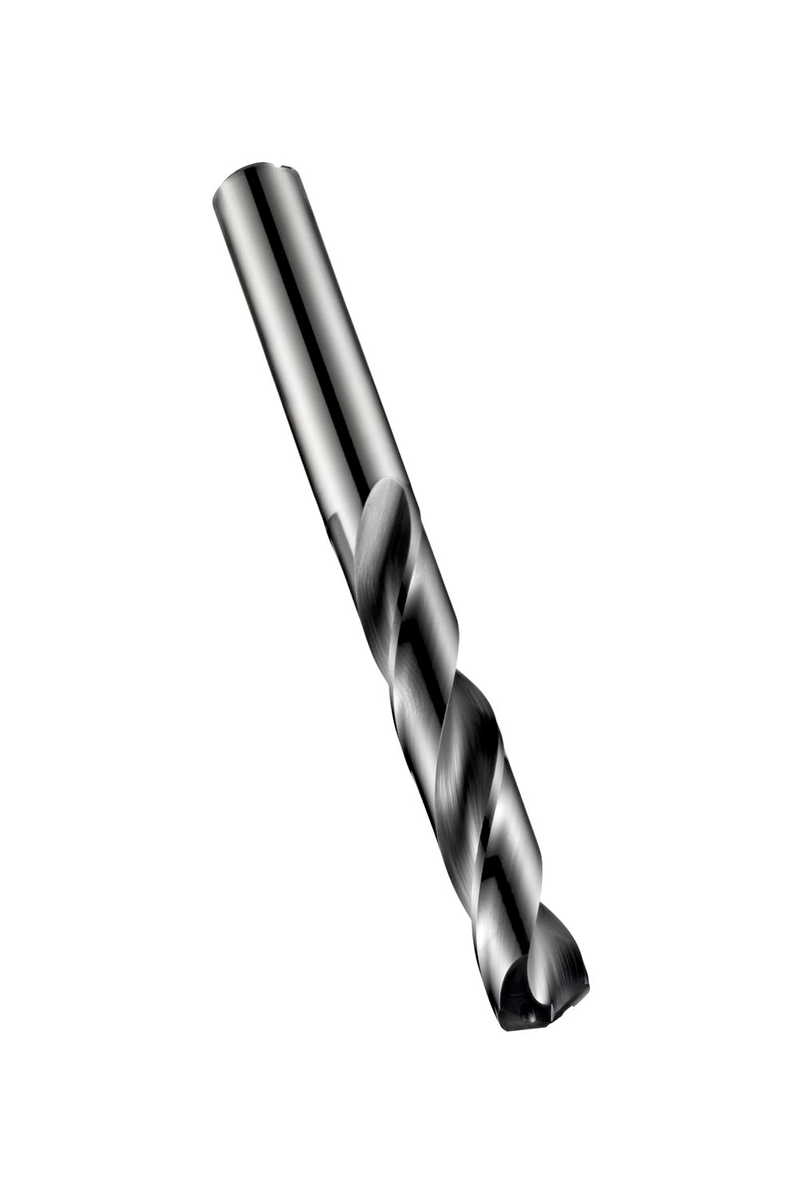

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 19,5 mm, longueur totale 153 mm et longueur de coupe 99 mm selon la norme DIN 6537 L, avec pointe de centrage 4 facettes à affûtage en croix de 140°, en carbure monobloc avec revêtement TiAlN, âme parallèle amincie en continu et arrosage interne pour perçage 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les superalliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R45319,5
GradeTiAlN
Product Number5979590
Product FamilyR453
Dimensions
Cutting Diameter — in (DC)0.7677"
Cutting Diameter — mm (DC)19.5 mm
Overall Length — in (OAL)6.0236"
Overall Length — mm (OAL)153.0 mm
Flute Length — in (LCF)3.8976"
Flute Length — mm (LCF)99.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 L
Reference Numbers
EDP Number625361
EAN7320760625361
File Type Download
R45319.5 — 3D Model STP Download
R45319.5 — Line Drawing PDF Download
