R12210,0
R12210,0
R12210,0
R12210,0

R12210,0

UGC DOR5979597
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$132.00 CAD - $132.00 CAD
$132.00 CAD
$132.00 CAD - $132.00 CAD
$132.00 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R12210.0
GradeLumineux
Product Number5979597
Product FamilyR122

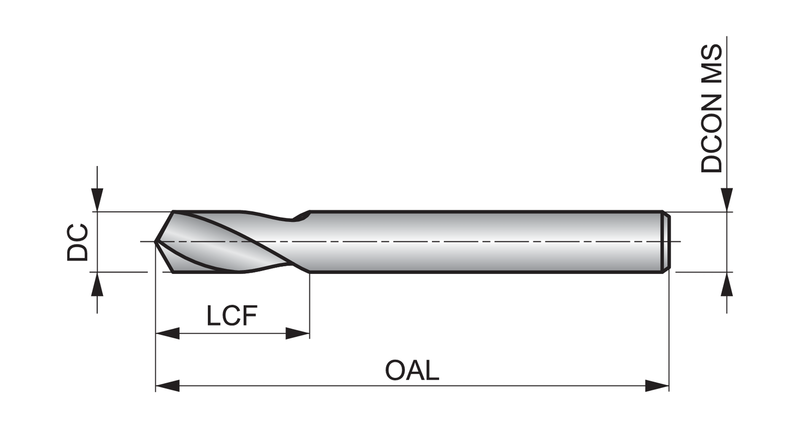

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Flute Length — in (LCF)1.0236"
Flute Length — mm (LCF)26.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number114643
EAN7320760114643
File Type Download
R12210,0 — 3D Model STP Download
R12210,0 — Line Drawing PDF Download
