R45323/64
R45323/64
R45323/64
R45323/64

R45323/64

UGC DOR5979620
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$217.64 CAD - $217.64 CAD
$217.64 CAD
$217.64 CAD - $217.64 CAD
$217.64 CAD

Vendu en lots de : 1

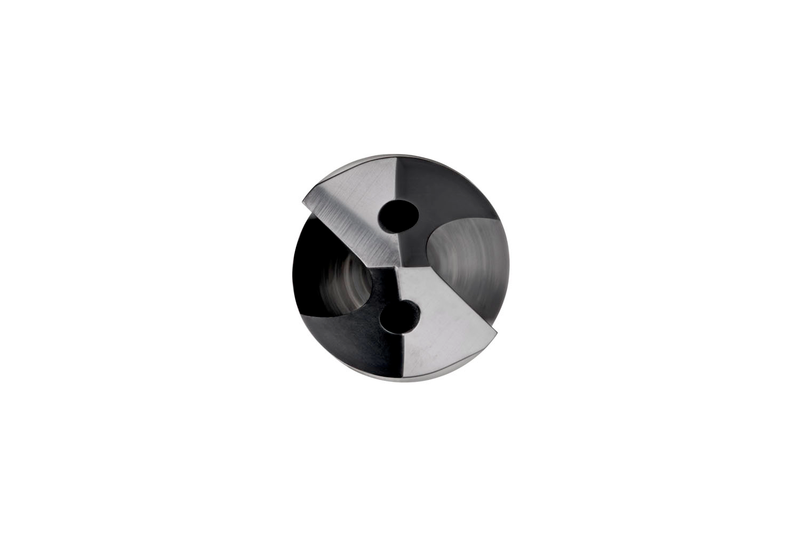

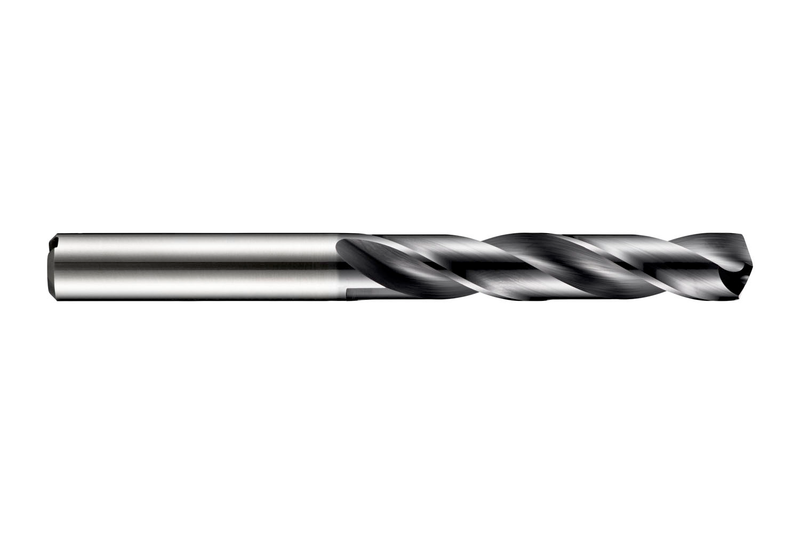

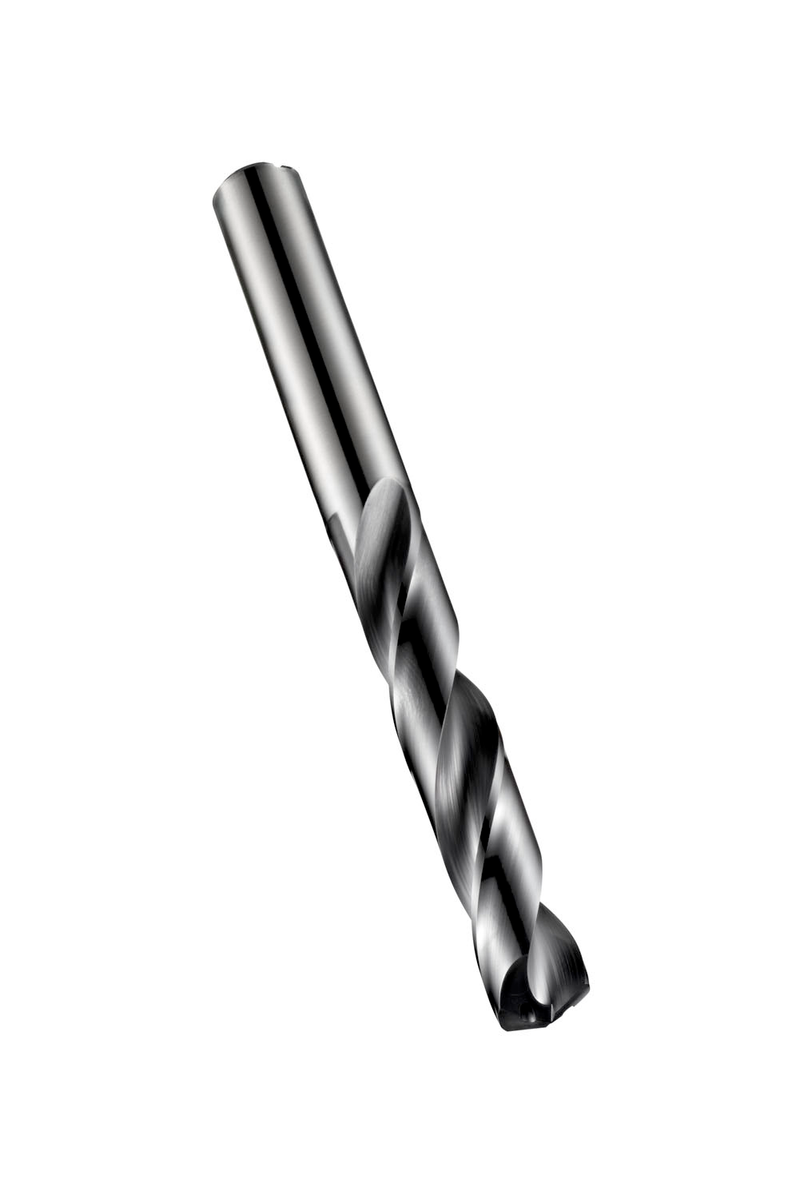

Forets haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 0,3594" (23/64) avec une longueur totale de 103mm et une longueur de coupe de 61mm selon la norme DIN 6537 L avec une pointe 4 facettes à 140° avec listel aminci, en carbure monobloc avec revêtement TiAlN, hélice amincie en continu et arrosage interne pour perçage 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non-ferreux, les super-alliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R45323/64
GradeTiAlN
Product Number5979620
Product FamilyR453
Dimensions
Cutting Diameter — in (DC)0.3594"
Cutting Diameter — mm (DC)9.13 mm
Cutting Diameter — Fractional23/64
Overall Length — in (OAL)4.0551"
Overall Length — mm (OAL)103.0 mm
Flute Length — in (LCF)2.4016"
Flute Length — mm (LCF)61.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 L
Reference Numbers
EDP Number623763
EAN7320760623763
File Type Download
R45323/64 — 3D Model STP Download
R45323/64 — Line Drawing PDF Download
