UGC DOR5979789
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$513.86 CAD - $513.86 CAD
$513.86 CAD
$513.86 CAD - $513.86 CAD
$513.86 CAD

Vendu en lots de : 1

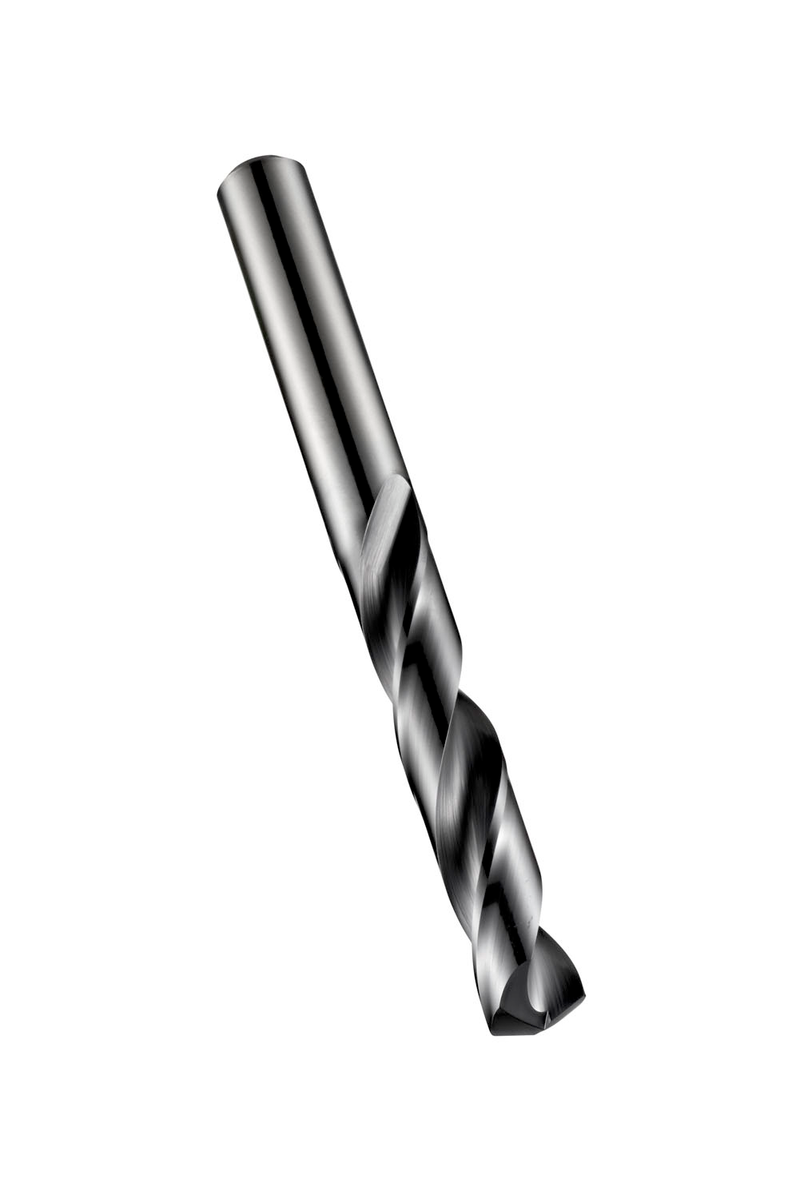

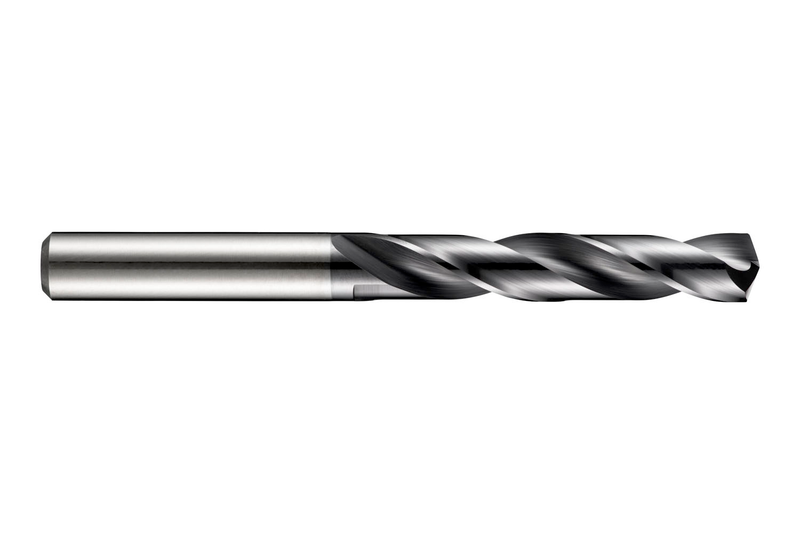

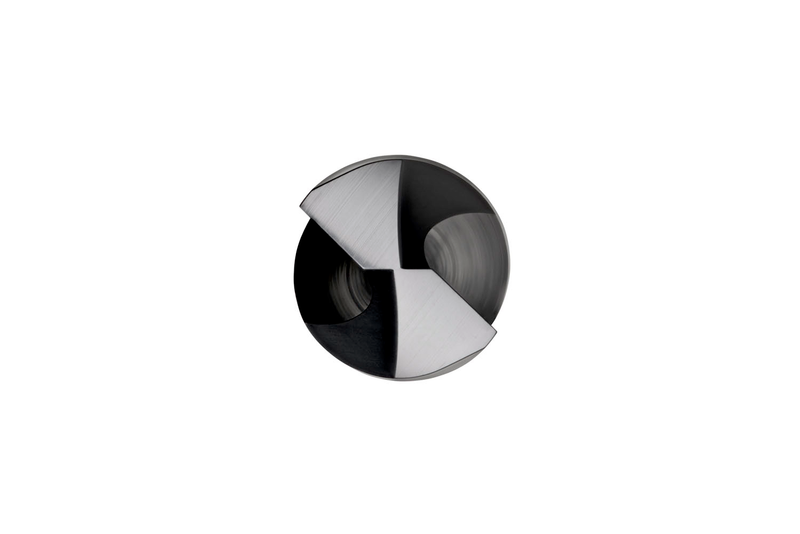

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 17,5 mm, longueur totale 143 mm et longueur de coupe 91 mm selon la norme DIN 6537 L, avec pointe à 4 facettes modifiée à 140°, en carbure monobloc avec revêtement TiAlN et âme parallèle amincie en continu pour perçage 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R45417.5
GradeTiAlN
Product Number5979789
Product FamilyR454

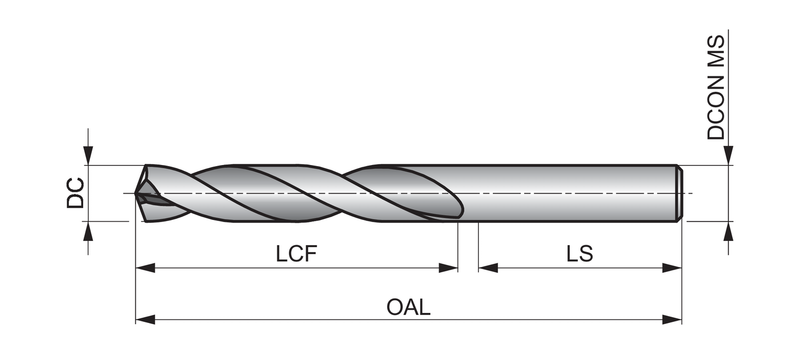

Dimensions
Cutting Diameter — in (DC)0.689"
Cutting Diameter — mm (DC)17.5 mm
Overall Length — in (OAL)5.6299"
Overall Length — mm (OAL)143.0 mm
Flute Length — in (LCF)3.5827"
Flute Length — mm (LCF)91.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant No
StandardDIN 6537 L
Reference Numbers
EDP Number134672
EAN7320760134672
File Type Download
R45417.5 — 3D Model STP Download
R45417.5 — Line Drawing PDF Download
