UGC DOR5979810
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$630.93 CAD - $630.93 CAD
$630.93 CAD
$630.93 CAD - $630.93 CAD
$630.93 CAD

Vendu en lots de : 1

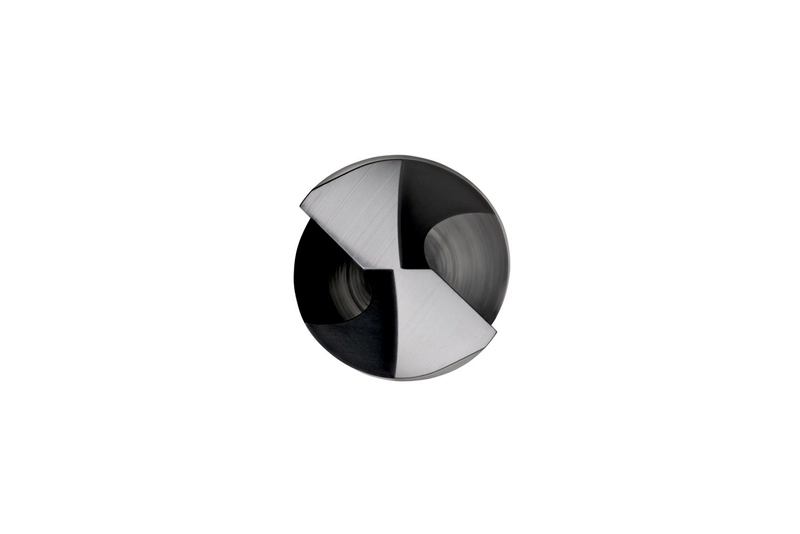

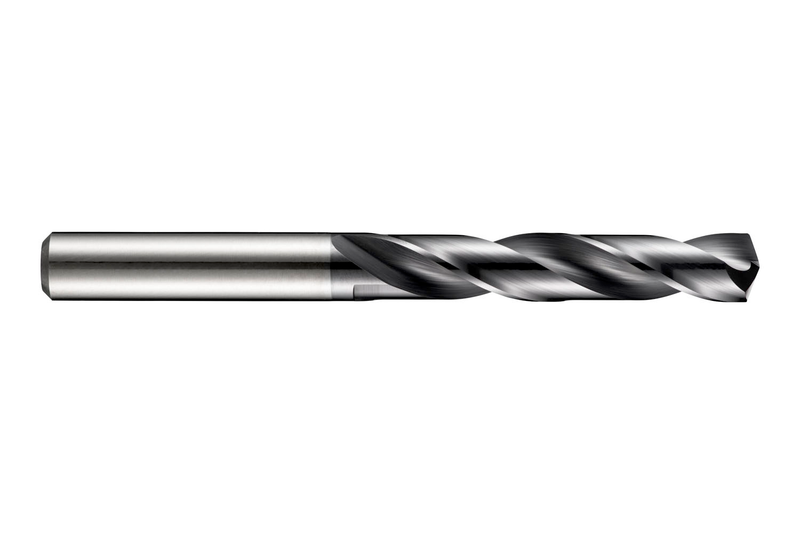

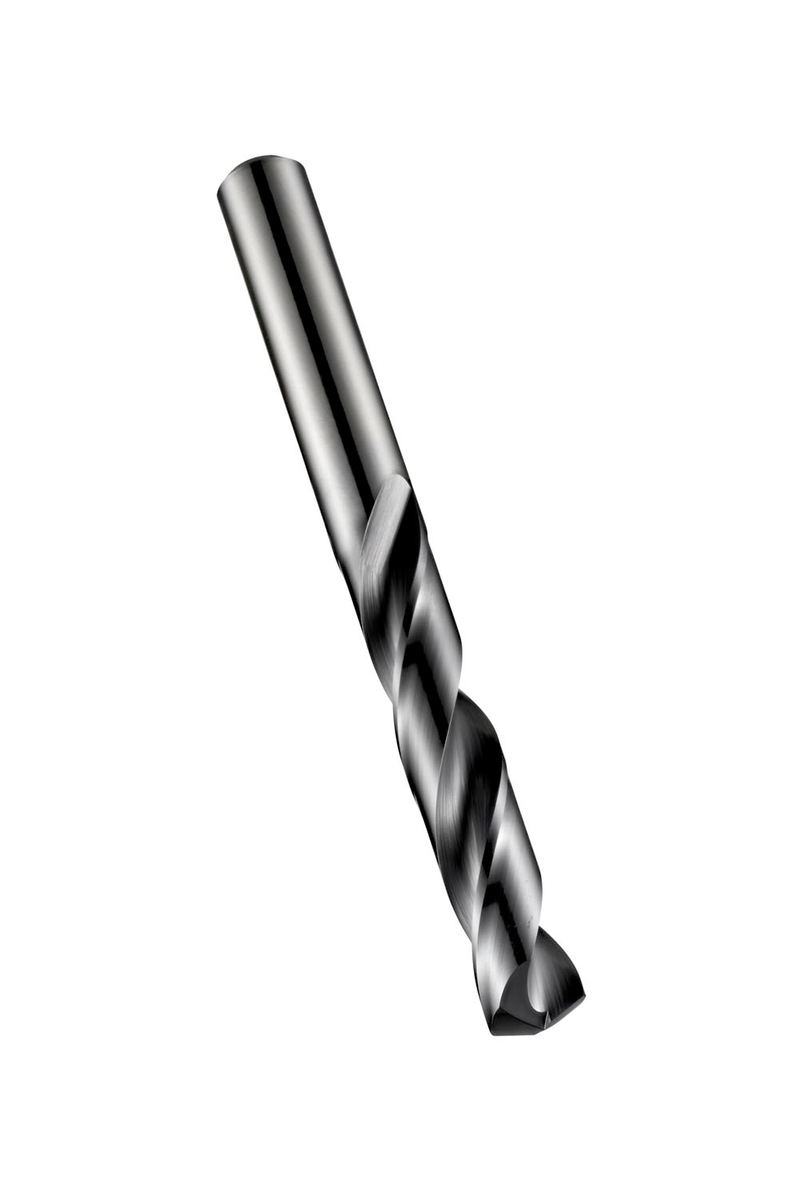

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 19,5mm avec une longueur totale de 153mm et une longueur de coupe de 99mm selon la norme DIN 6537 L avec une pointe 4 facettes à 140° avec listel aminci en continu pour le perçage à 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R45419.5
GradeTiAlN
Product Number5979810
Product FamilyR454

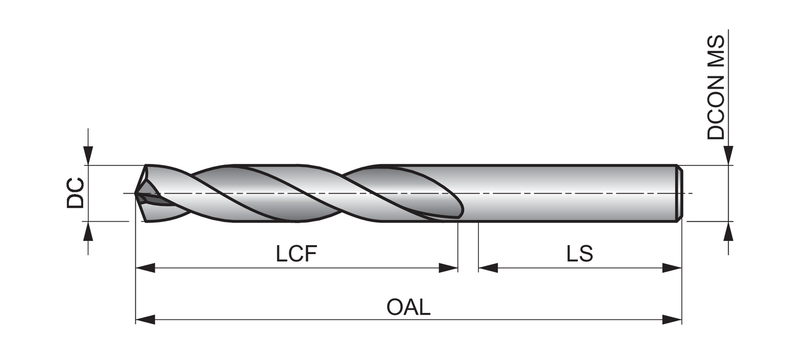

Dimensions
Cutting Diameter — in (DC)0.7677"
Cutting Diameter — mm (DC)19.5 mm
Overall Length — in (OAL)6.0236"
Overall Length — mm (OAL)153.0 mm
Flute Length — in (LCF)3.8976"
Flute Length — mm (LCF)99.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant No
StandardDIN 6537 L
Reference Numbers
EDP Number134726
EAN7320760134726
File Type Download
R45419.5 — 3D Model STP Download
R45419.5 — Line Drawing PDF Download
