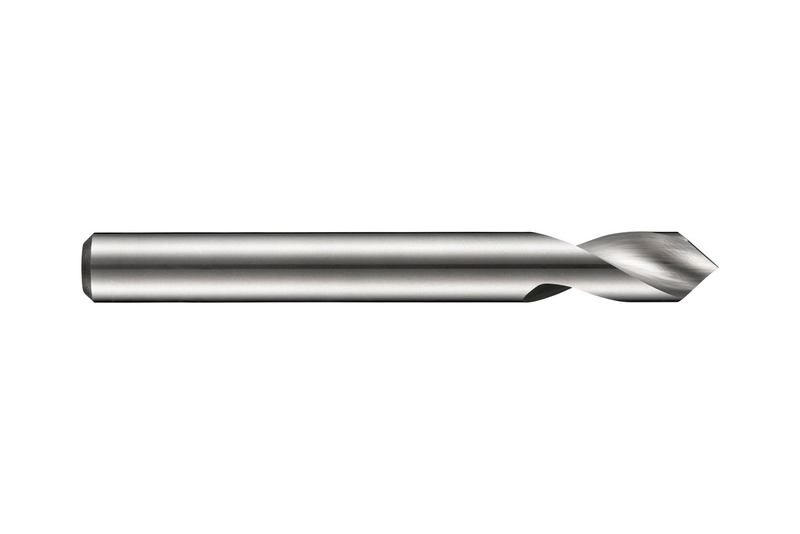

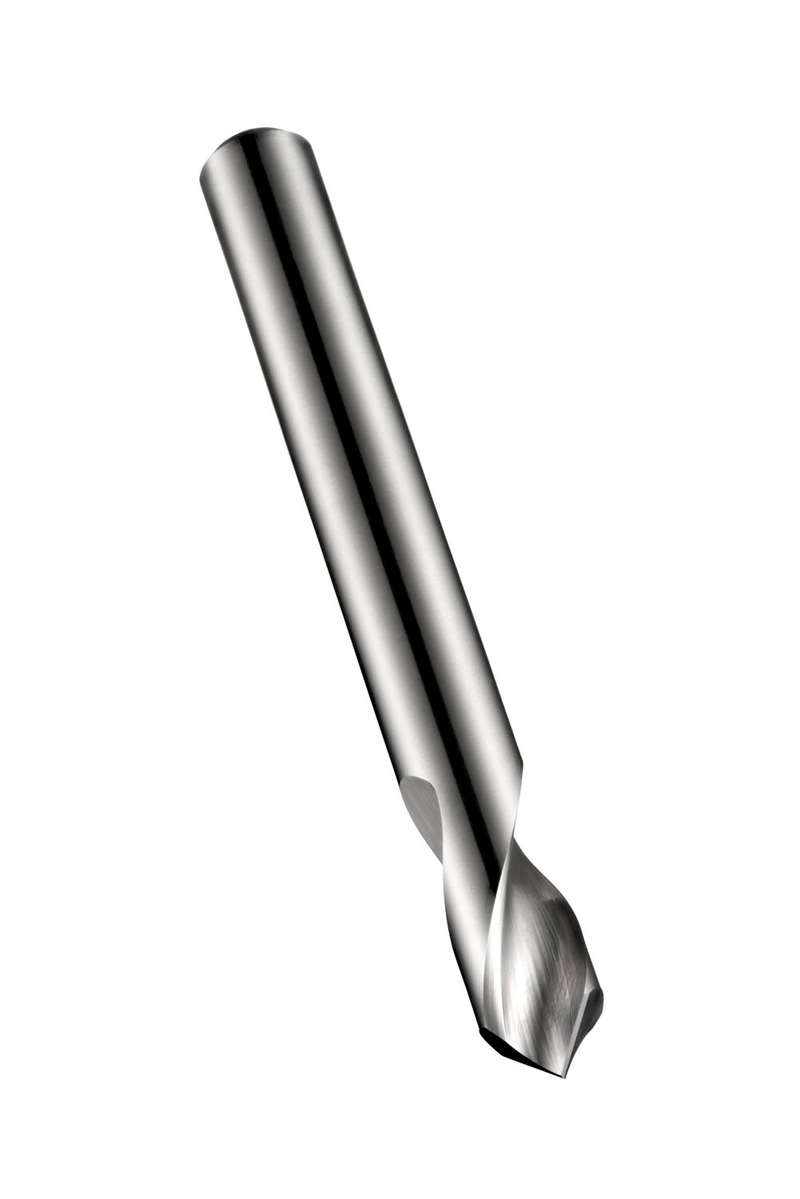

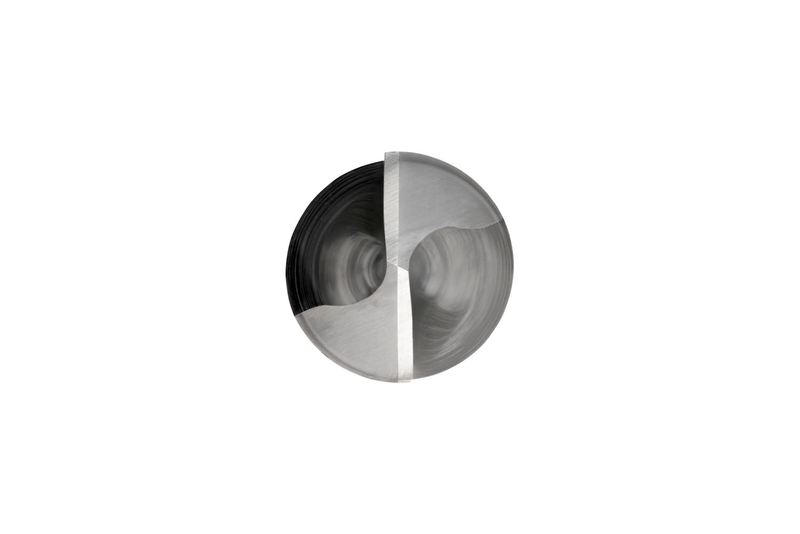

R12316.0
R12316.0
R12316.0
R12316.0

R12316.0

UGC DOR5979829
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$284.43 CAD - $284.43 CAD
$284.43 CAD
$284.43 CAD - $284.43 CAD
$284.43 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R12316.0
GradeLumineux
Product Number5979829
Product FamilyR123

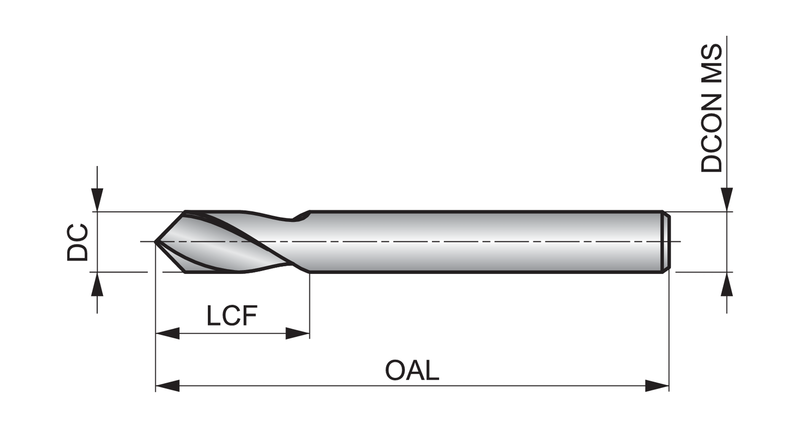

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)4.5276"
Overall Length — mm (OAL)115.0 mm
Flute Length — in (LCF)1.3386"
Flute Length — mm (LCF)34.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number114728
EAN7320760114728
File Type Download
R12316.0 — 3D Model STP Download
R12316.0 — Line Drawing PDF Download
