UGC DOR5979868
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$99.00 CAD - $99.00 CAD
$99.00 CAD
$99.00 CAD - $99.00 CAD
$99.00 CAD

Vendu en lots de : 1

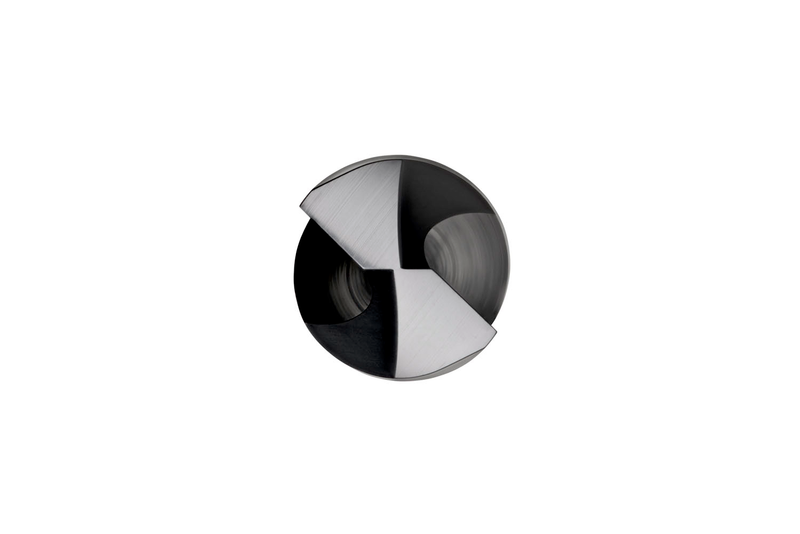

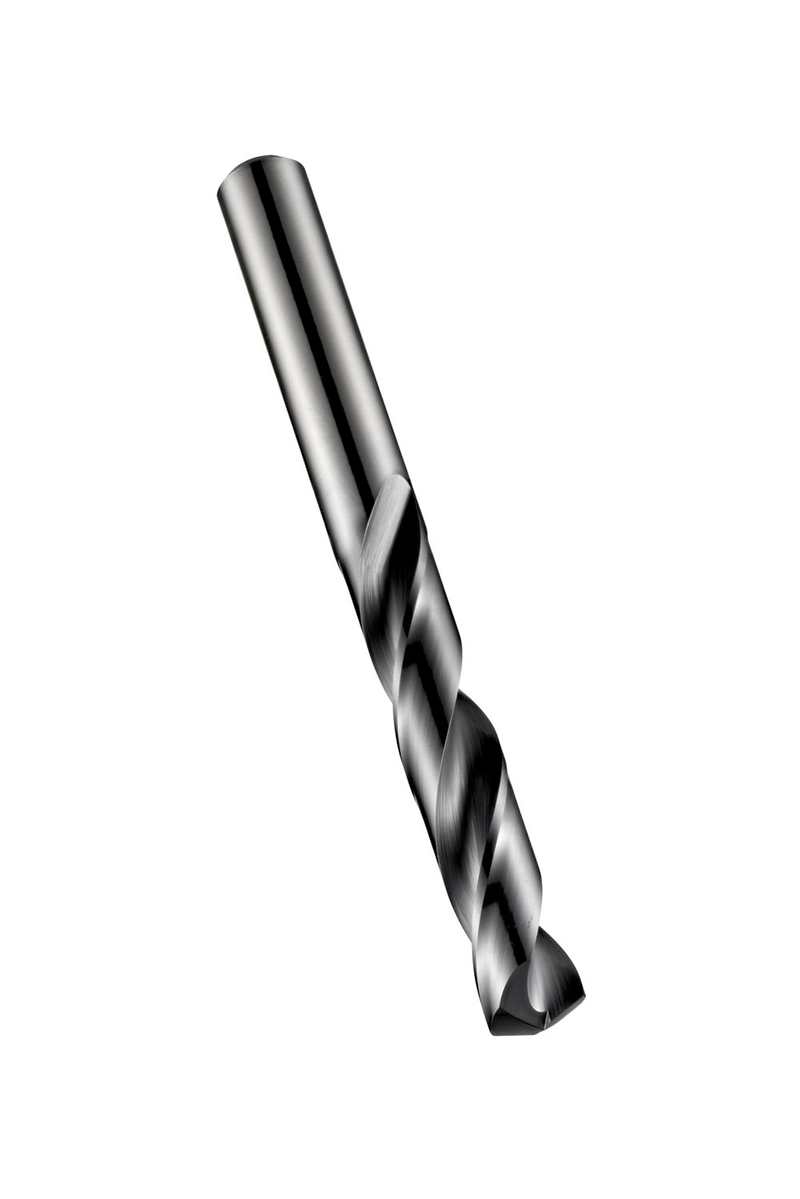

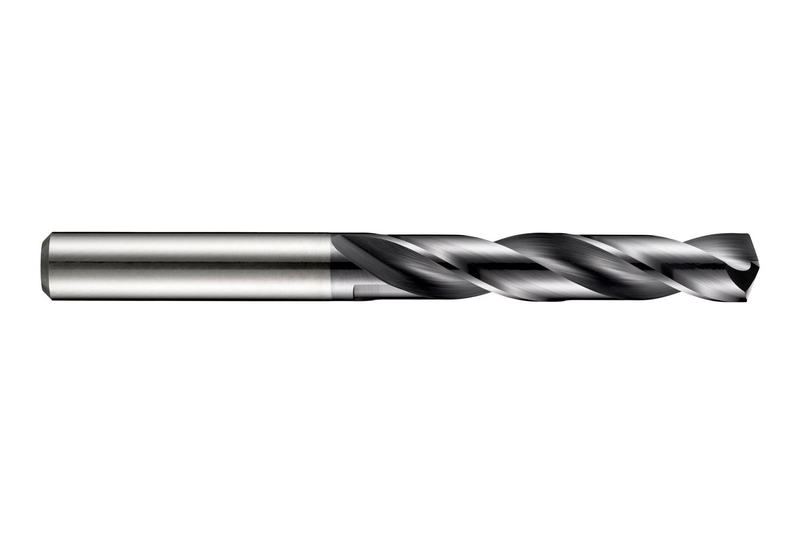

Foret FORCE X haute performance avec queue cylindrique DIN 6535HA NC, diamètre 3,5mm avec une longueur totale de 66mm et une longueur de coupe de 28mm selon la norme DIN 6537 L avec pointe à quatre facettes modifiée à 140° et auto-centrante, carbure monobloc avec revêtement TiAlN et âme amincie progressivement pour perçage 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non-ferreux et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)R4543,5
Product Name (ISO)R4543.5
GradeTiAlN
Product Number5979868
Product FamilyR454

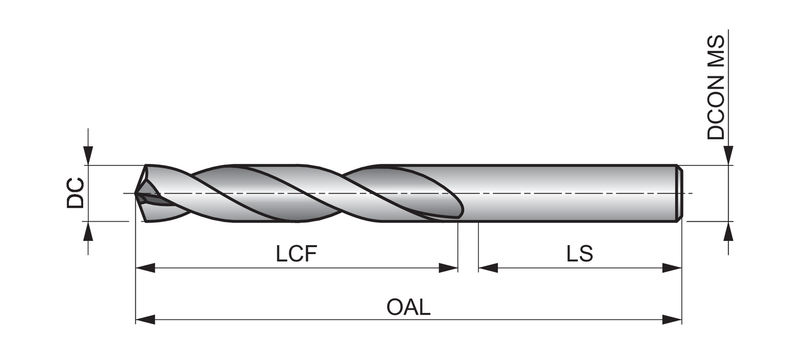

Dimensions
Cutting Diameter — in (DC)0.1378"
Cutting Diameter — mm (DC)3.5 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)1.1024"
Flute Length — mm (LCF)28.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant No
StandardDIN 6537 L
Reference Numbers
EDP Number614464
EAN7320760614464
File Type Download
R4543.5 — 3D Model STP Download
R4543.5 — Line Drawing PDF Download
