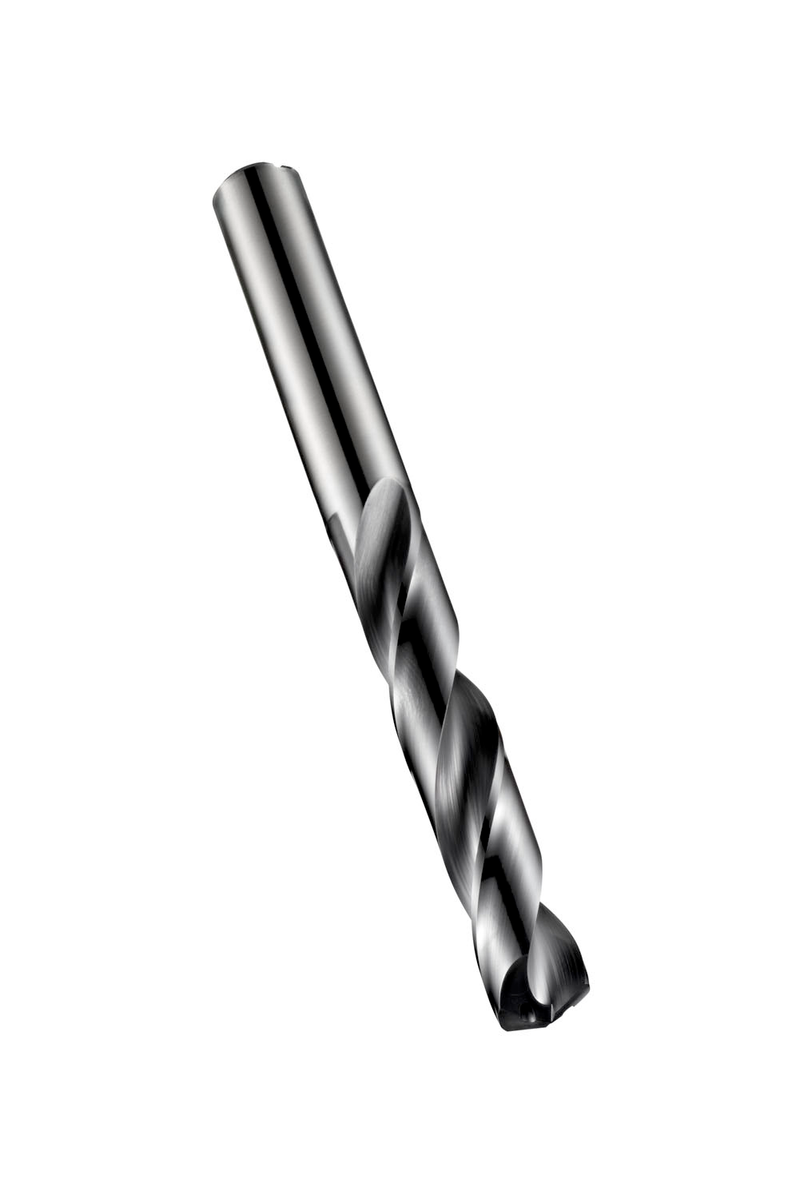

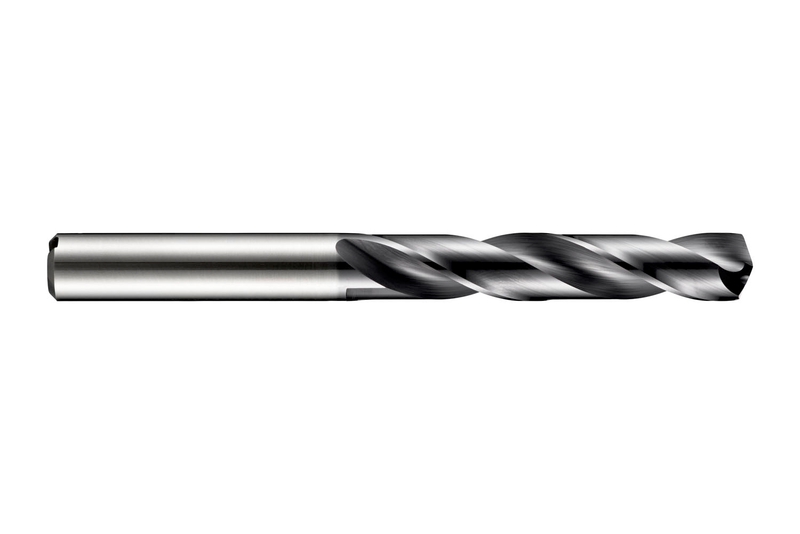

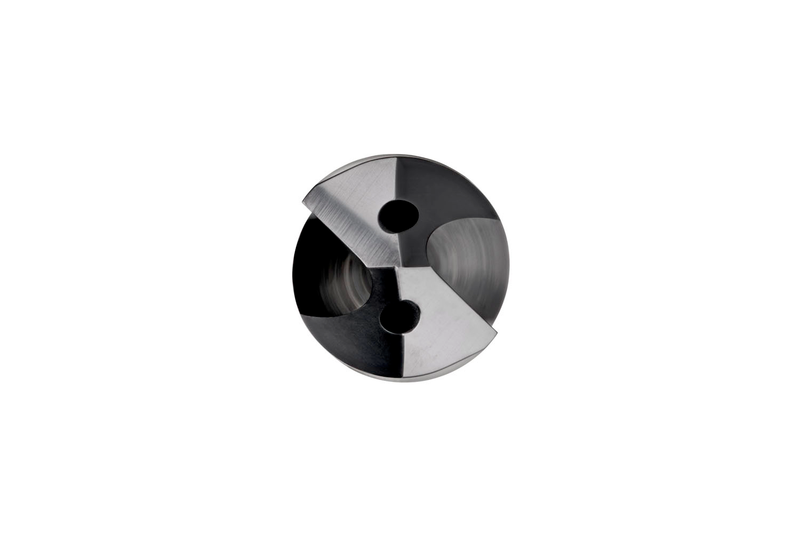

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 0,1992" (N8) avec une longueur totale de 82mm et une longueur de coupe de 44mm selon la norme DIN 6537 L avec pointe à quatre facettes modifiée à 140° et auto-centrante, en carbure monobloc avec revêtement TiAlN, âme amincie progressivement et trous d'arrosage intégrés pour perçage à 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les superalliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R453N8
GradeTiAlN
Product Number5979891
Product FamilyR453

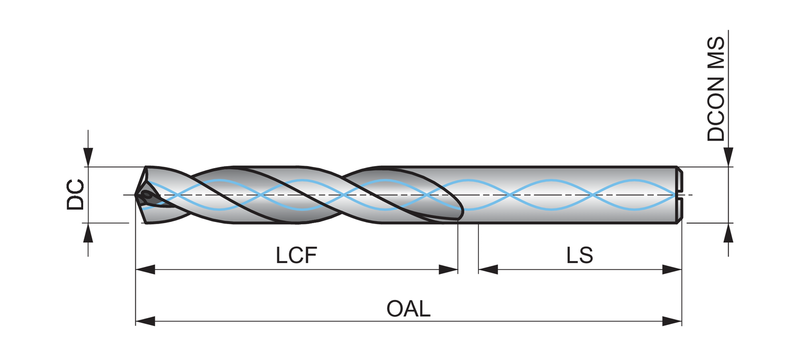

Dimensions
Cutting Diameter — in (DC)0.1992"
Cutting Diameter — mm (DC)5.06 mm
Overall Length — in (OAL)3.2283"
Overall Length — mm (OAL)82.0 mm
Flute Length — in (LCF)1.7323"
Flute Length — mm (LCF)44.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 L
Reference Numbers
EDP Number40614
EAN7320760040614
File Type Download
R453N8 — 3D Model STP Download
R453N8 — Line Drawing PDF Download
