UGC DOR5979937
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$108.43 CAD - $108.43 CAD
$108.43 CAD
$108.43 CAD - $108.43 CAD
$108.43 CAD

Vendu en lots de : 1

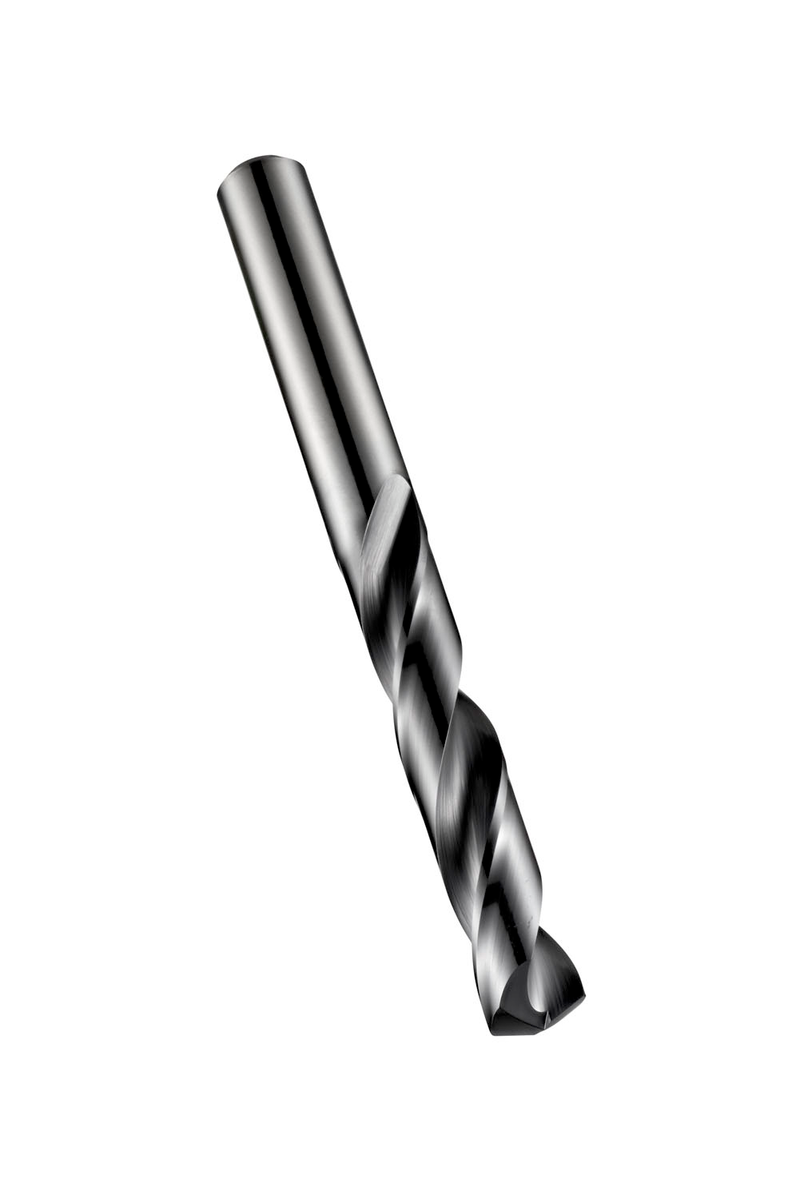

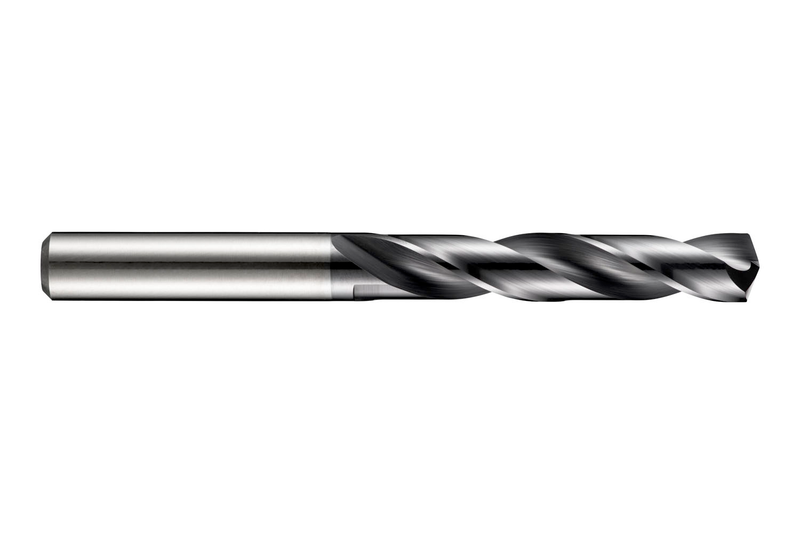

Forets hautes performances FORCE X à queue cylindrique NC DIN 6535HA, de diamètre 0,1961" (N9) et de longueur totale 82mm et de longueur utile 44mm selon la norme DIN 6537 L, à pointe à 4 facettes modifiée à 140° auto-centrante en carbure monobloc, revêtement TiAlN, pour des perçages 5xD sans débourrage dans les aciers, aciers inoxydables, fontes, alliages non ferreux et matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R454N9
GradeTiAlN
Product Number5979937
Product FamilyR454

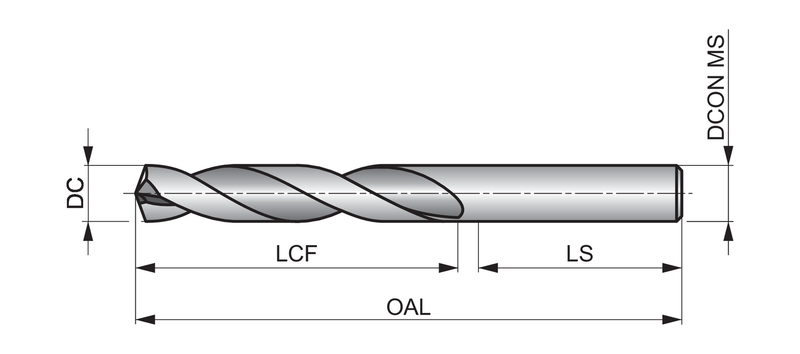

Dimensions
Cutting Diameter — in (DC)0.1961"
Cutting Diameter — mm (DC)4.98 mm
Overall Length — in (OAL)3.2283"
Overall Length — mm (OAL)82.0 mm
Flute Length — in (LCF)1.7323"
Flute Length — mm (LCF)44.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm

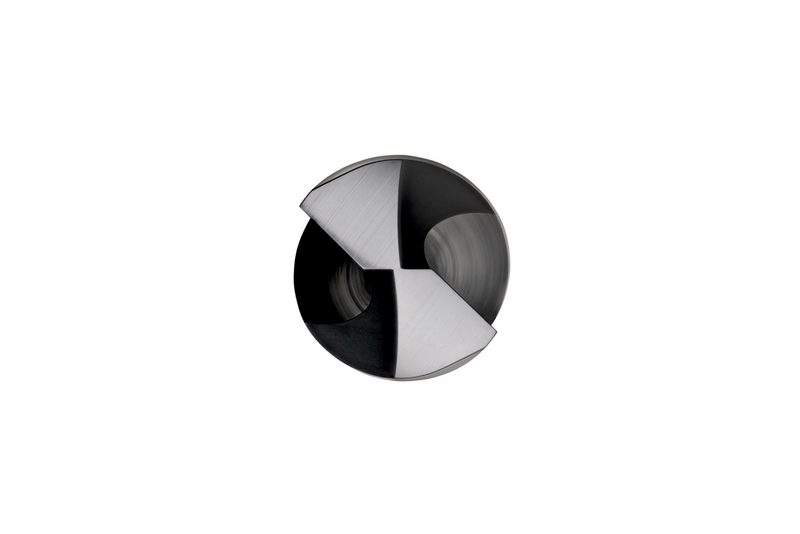

Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant No
StandardDIN 6537 L
Reference Numbers
EDP Number41611
EAN7320760041611
File Type Download
R454N9 — 3D Model STP Download
R454N9 — Line Drawing PDF Download
