UGC DOR5980075
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$136.71 CAD - $136.71 CAD
$136.71 CAD
$136.71 CAD - $136.71 CAD
$136.71 CAD

Vendu en lots de : 1

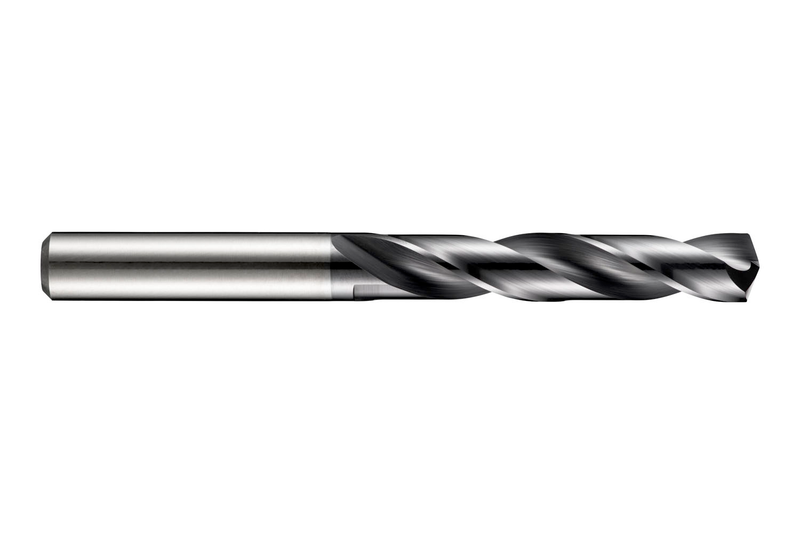

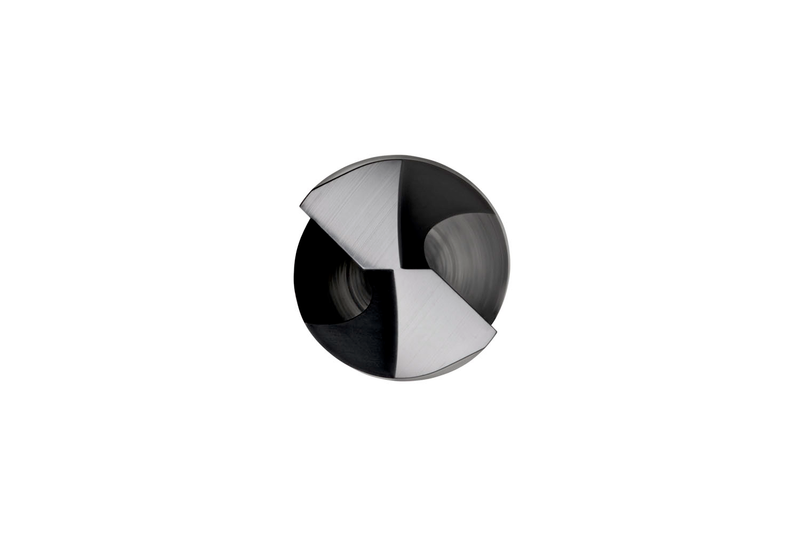

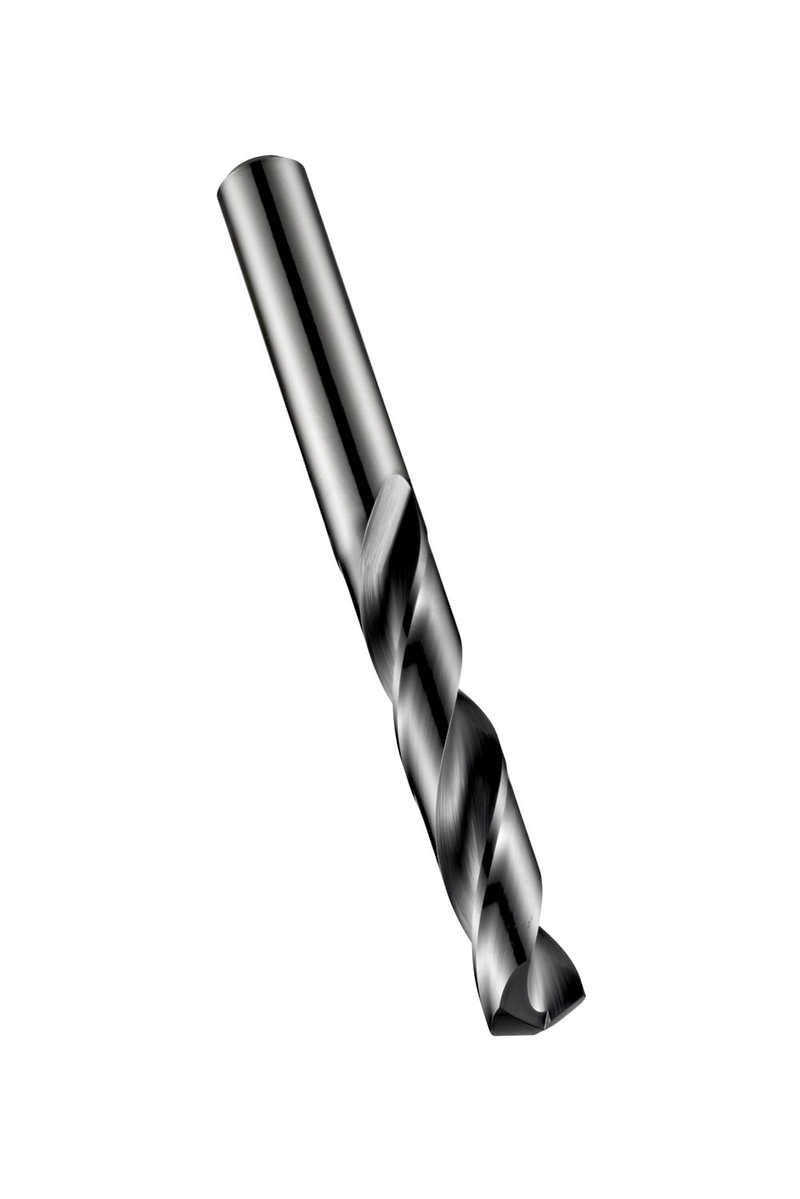

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 6 mm, longueur totale 82 mm et longueur utile 44 mm selon la norme DIN 6537 L, avec pointe de centrage 4 facettes à 140° modifiée, en carbure monobloc avec revêtement TiAlN et âme effilée en continu pour un perçage 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R4546.0
GradeTiAlN
Product Number5980075
Product FamilyR454

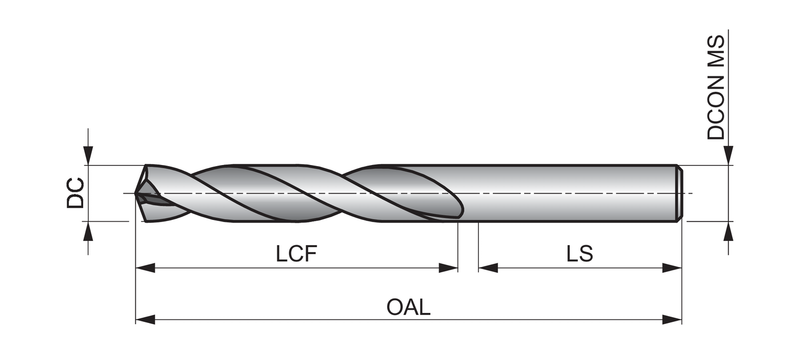

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)3.2283"
Overall Length — mm (OAL)82.0 mm
Flute Length — in (LCF)1.7323"
Flute Length — mm (LCF)44.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant No
StandardDIN 6537 L
Reference Numbers
EDP Number614549
EAN7320760614549
File Type Download
R4546.0 — 3D Model STP Download
R4546.0 — Line Drawing PDF Download
