UGC DOR5980081
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$387.36 CAD - $387.36 CAD
$387.36 CAD
$387.36 CAD - $387.36 CAD
$387.36 CAD

Vendu en lots de : 1

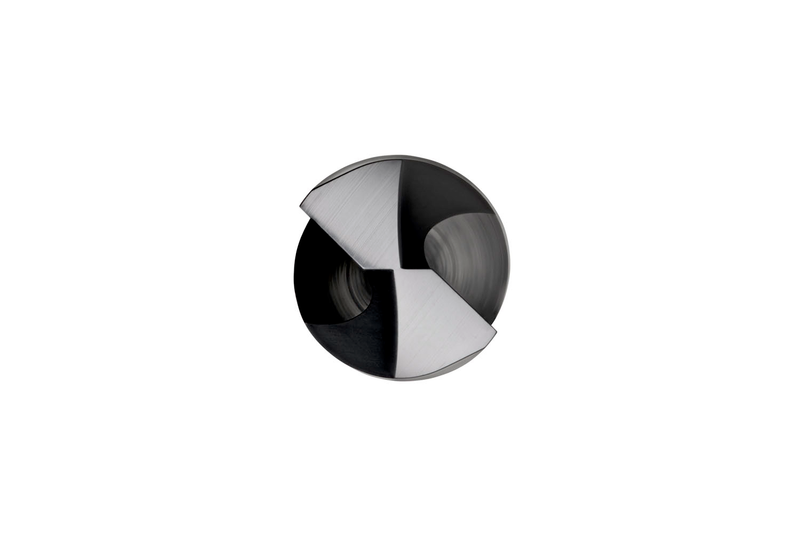

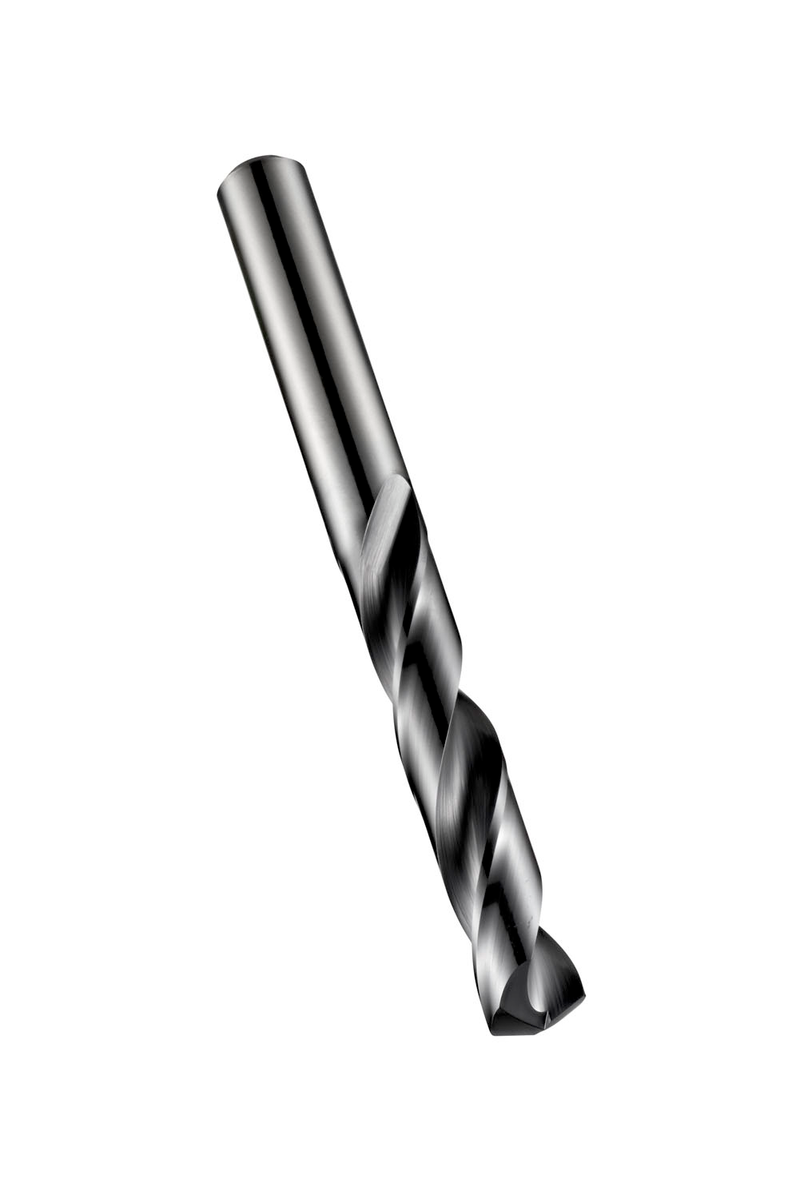

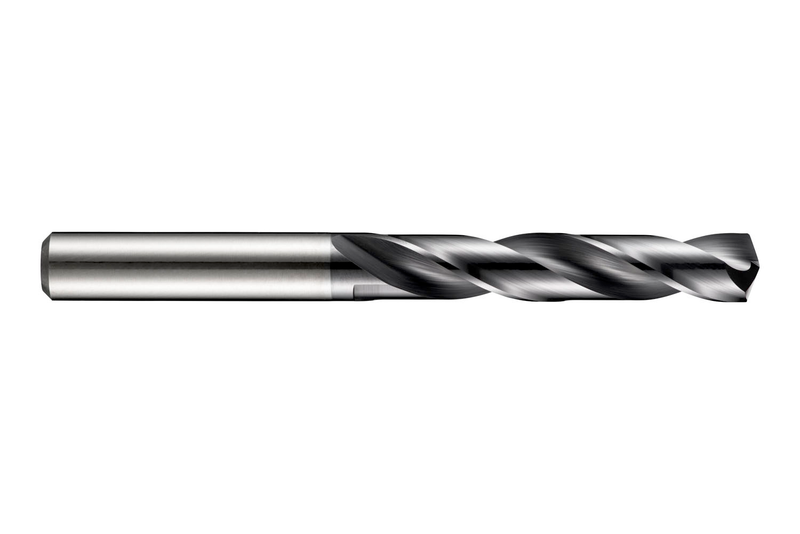

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 14,25mm, longueur totale 133mm et longueur utile 82mm selon la norme DIN 6537 L, avec pointe en croix à 4 facettes modifiée à 140°, carbure monobloc avec revêtement TiAlN et âme effilée continue pour le perçage à 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R45414.25
GradeTiAlN
Product Number5980081
Product FamilyR454

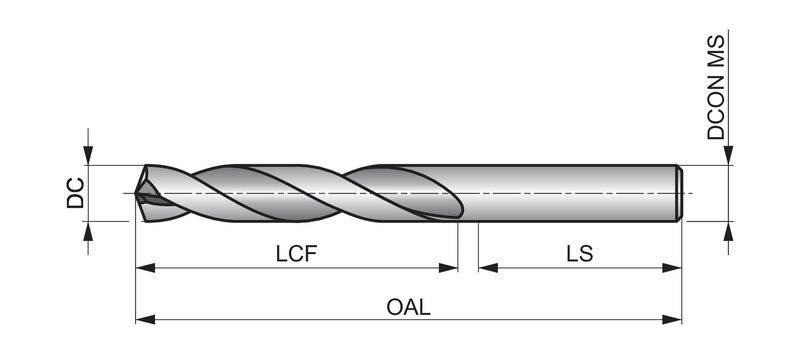

Dimensions
Cutting Diameter — in (DC)0.561"
Cutting Diameter — mm (DC)14.25 mm
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — in (LCF)3.2283"
Flute Length — mm (LCF)82.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant No
StandardDIN 6537 L
Reference Numbers
EDP Number614389
EAN7320760614389
File Type Download
R45414,25 — 3D Model STP Download
R45414,25 — Line Drawing PDF Download
