R458N4
R458N4
R458N4
R458N4

R458N4

UGC DOR5980237
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$91.14 CAD - $91.14 CAD
$91.14 CAD
$91.14 CAD - $91.14 CAD
$91.14 CAD

Vendu en lots de : 1

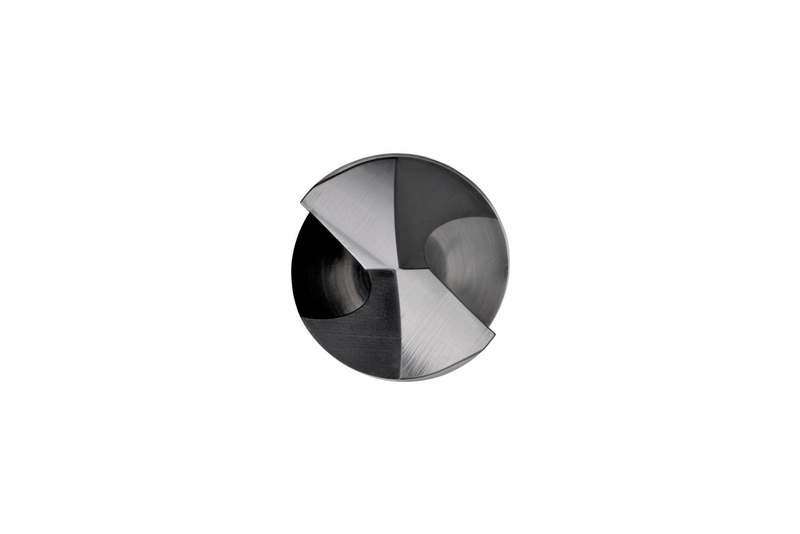

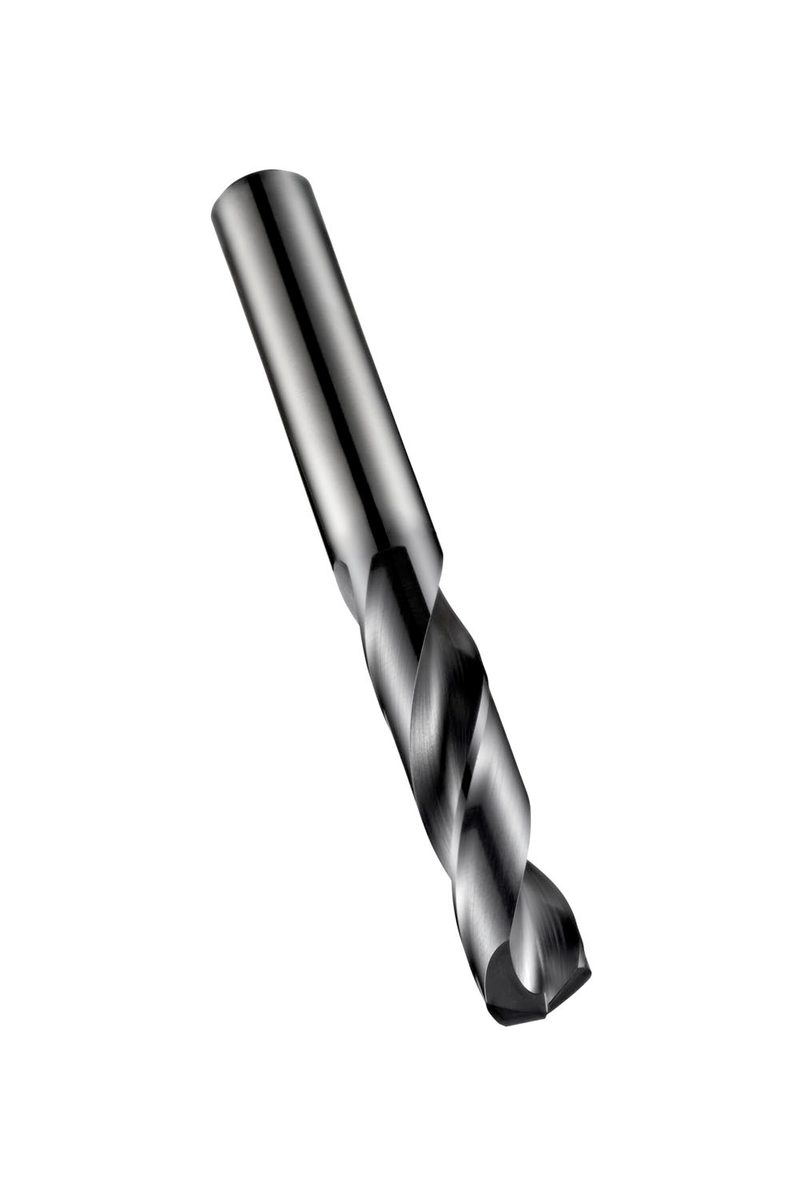

Forets hautes performances FORCE X à queue cylindrique DIN 6535HA NC, diamètre 0,2091" (N4) avec une longueur totale de 66 mm et une longueur de coupe de 28 mm selon la norme DIN 6537 K avec une pointe fendue modifiée à 4 facettes à 140°, en carbure monobloc avec revêtement TiAlN et une âme amincie de manière continue pour un perçage 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R458N4
GradeTiAlN
Product Number5980237
Product FamilyR458

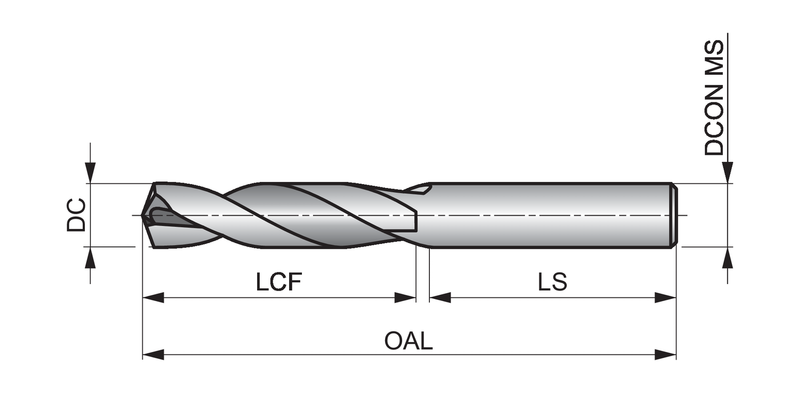

Dimensions
Cutting Diameter — in (DC)0.2091"
Cutting Diameter — mm (DC)5.31 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)1.1024"
Flute Length — mm (LCF)28.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant No
StandardDIN 6537 K
Reference Numbers
EDP Number42526
EAN7320760042526
File Type Download
R458N4 — 3D Model STP Download
R458N4 — Line Drawing PDF Download
