UGC DOR5980266
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$128.07 CAD - $128.07 CAD
$128.07 CAD
$128.07 CAD - $128.07 CAD
$128.07 CAD

Vendu en lots de : 1

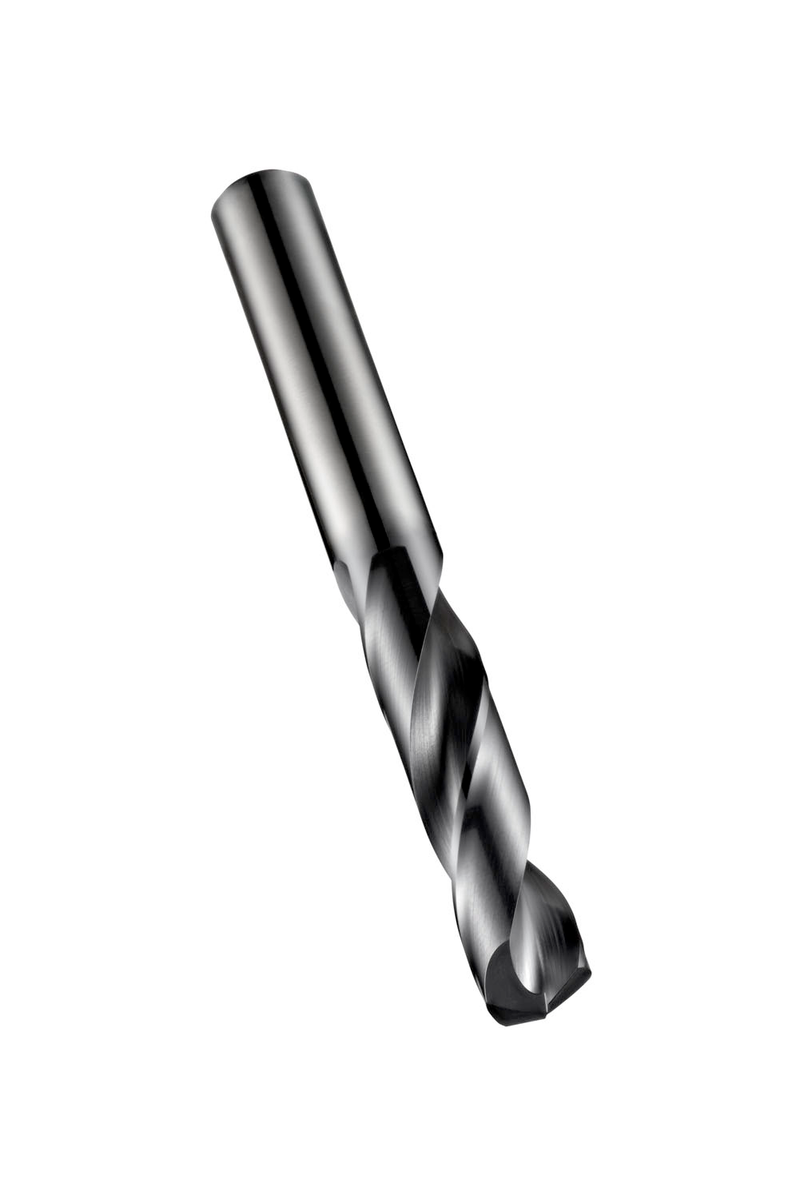

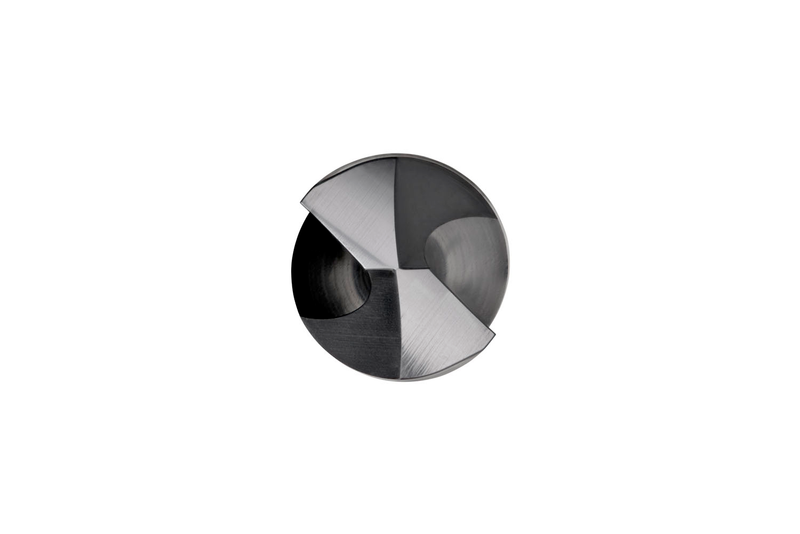

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 0,3681" (U), longueur totale de 89 mm et longueur de goujure de 47 mm selon la norme DIN 6537 K, avec pointe modifiée à 4 facettes et auto-centrante de 140°, en carbure monobloc avec revêtement TiAlN et âme continuellement amincie pour un perçage jusqu'à 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R458U
GradeTiAlN
Product Number5980266
Product FamilyR458

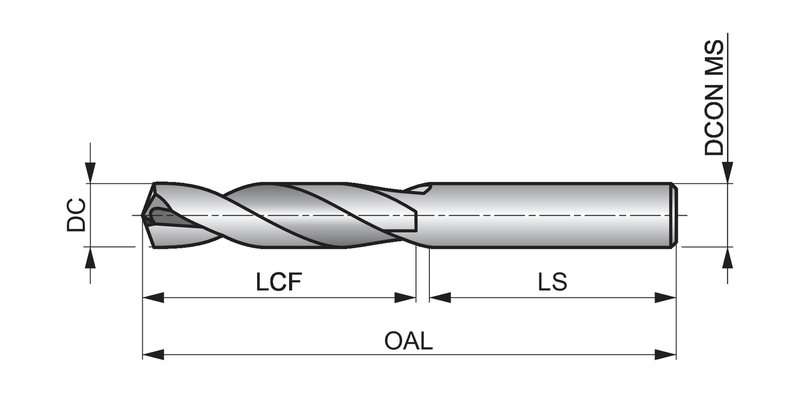

Dimensions
Cutting Diameter — in (DC)0.3681"
Cutting Diameter — mm (DC)9.35 mm
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Flute Length — in (LCF)1.8504"
Flute Length — mm (LCF)47.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant No
StandardDIN 6537 K
Reference Numbers
EDP Number42656
EAN7320760042656
File Type Download
R458U — 3D Model STP Download
R458U — Line Drawing PDF Download
