UGC DOR5980271
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$177.57 CAD - $177.57 CAD
$177.57 CAD
$177.57 CAD - $177.57 CAD
$177.57 CAD

Vendu en lots de : 1

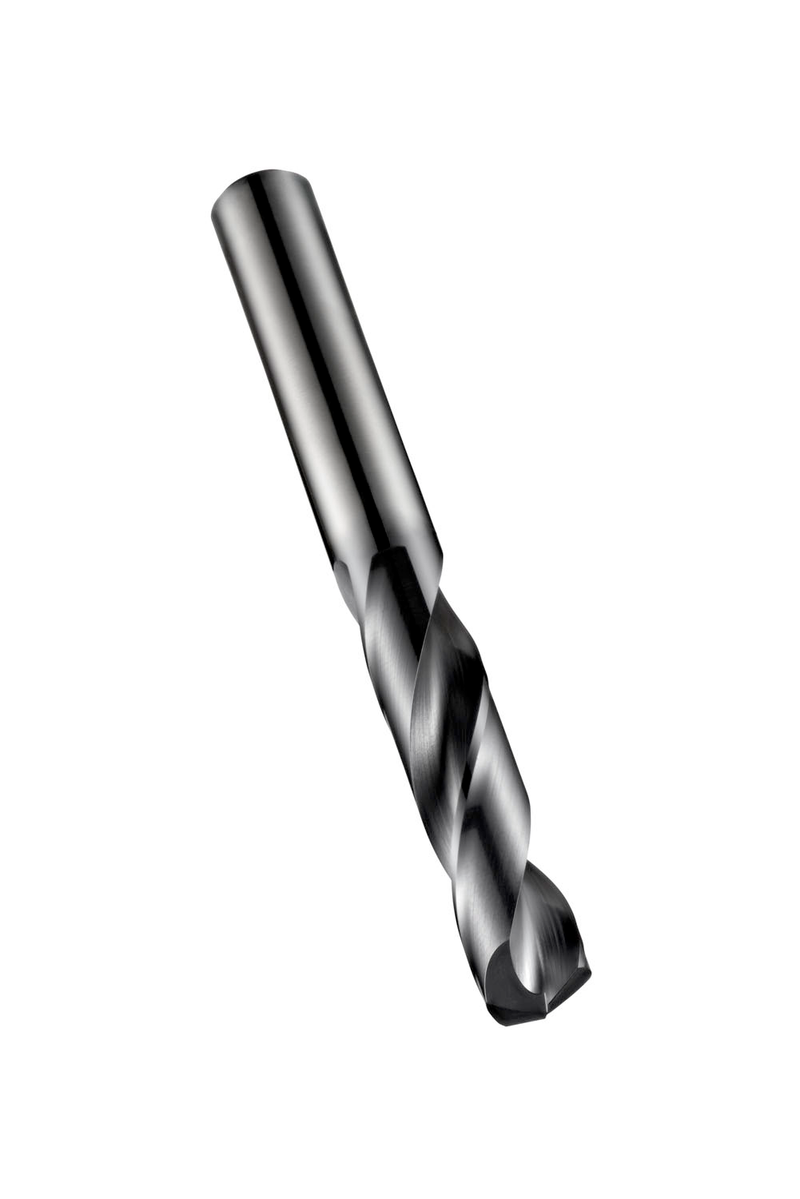

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 0,3969" () avec une longueur totale de 102mm et une longueur utile de 55mm selon la norme DIN 6537 K avec une pointe 4 facettes affûtage en croix 140° modifiée, carbure monobloc avec revêtement TiAlN et âme amincie en continu pour un perçage à 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R458X
GradeTiAlN
Product Number5980271
Product FamilyR458

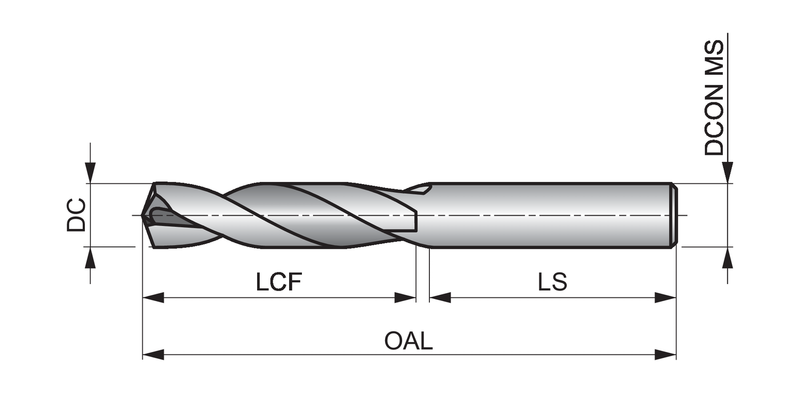

Dimensions
Cutting Diameter — in (DC)0.3969"
Cutting Diameter — mm (DC)10.08 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Flute Length — in (LCF)2.1654"
Flute Length — mm (LCF)55.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm

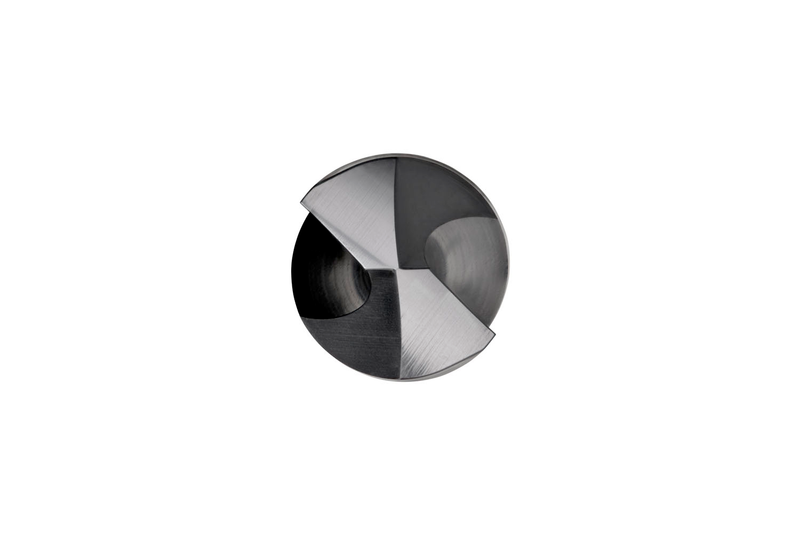

Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant No
StandardDIN 6537 K
Reference Numbers
EDP Number42663
EAN7320760042663
File Type Download
R458X — 3D Model STP Download
R458X — Line Drawing PDF Download
