UGC DOR5980296
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$150.86 CAD - $150.86 CAD
$150.86 CAD
$150.86 CAD - $150.86 CAD
$150.86 CAD

Vendu en lots de : 1

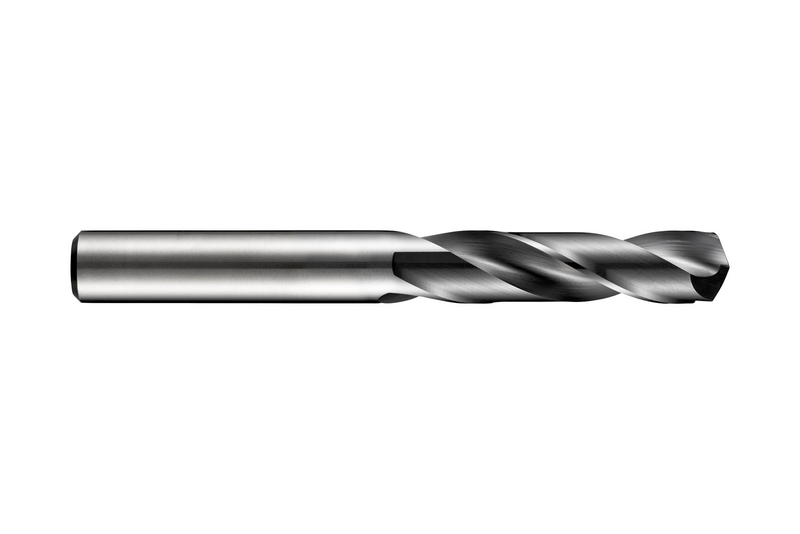

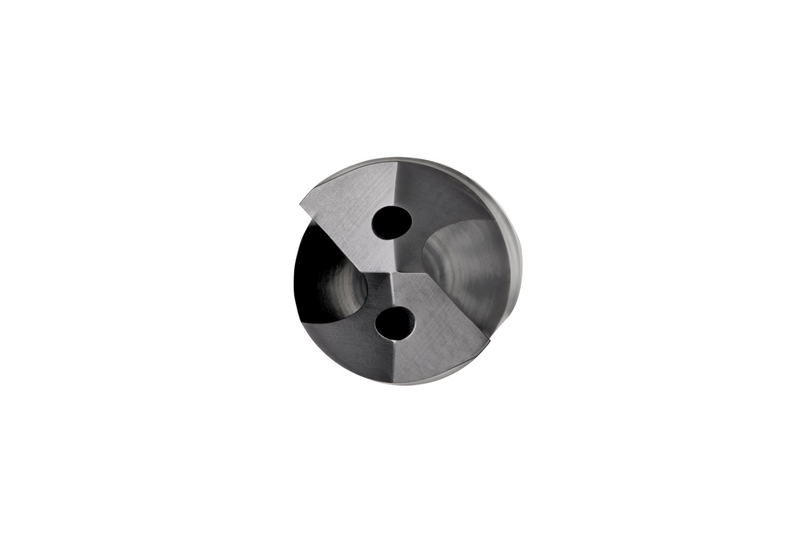

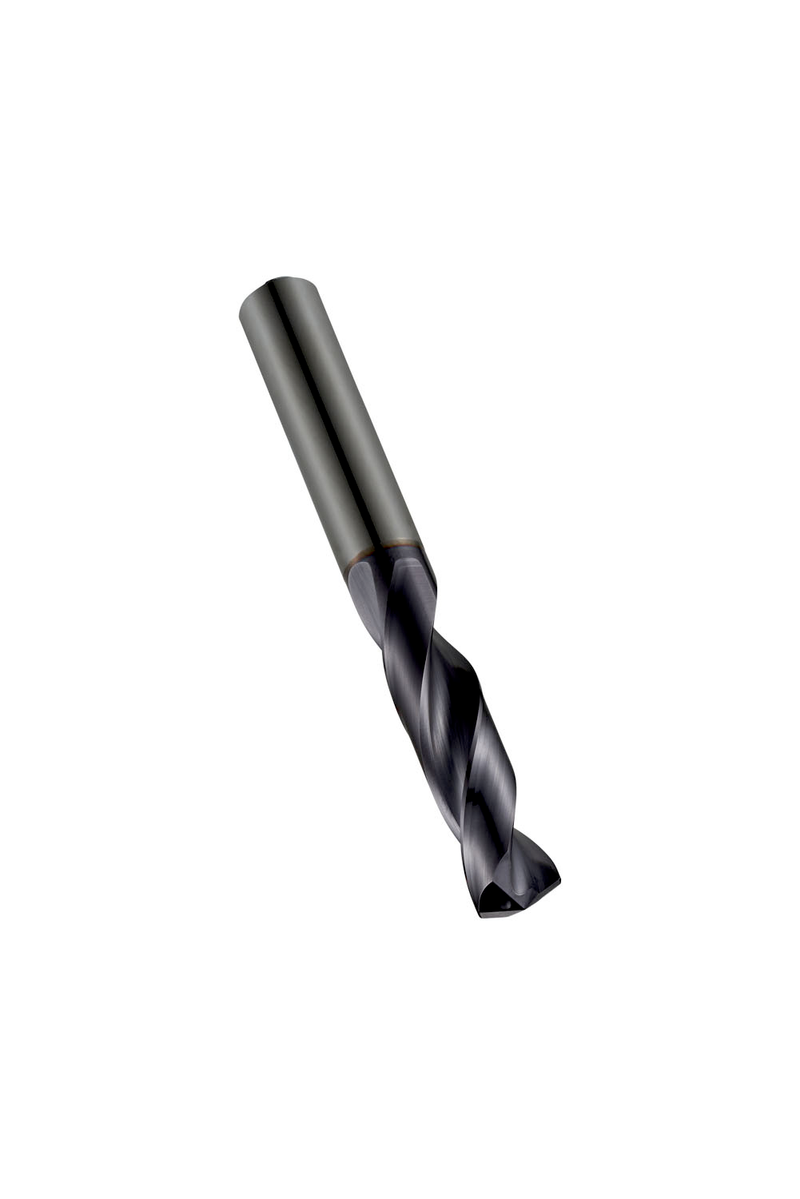

Foret FORCE X haute performance avec queue cylindrique DIN 6535HA NC, diamètre 0,3125" (5/16) avec une longueur totale de 79mm et une longueur utile de 41mm selon la norme DIN 6537 K avec pointe auto-centrante 4 facettes modifiée à 140°, carbure monobloc avec revêtement TiAlN, âme amincie progressivement et arrosage central pour le perçage 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non-ferreux, les super-alliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R4575/16
GradeTiAlN
Product Number5980296
Product FamilyR457

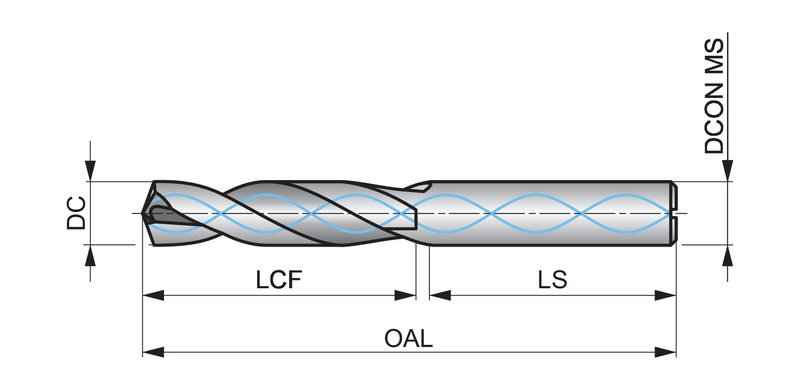

Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Flute Length — in (LCF)1.6142"
Flute Length — mm (LCF)41.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 K
Reference Numbers
EDP Number624746
EAN7320760624746
File Type Download
R4575/16 — 3D Model STP Download
R4575/16 — Line Drawing PDF Download
