R4586,5
R4586,5
R4586,5
R4586,5

R4586,5

UGC DOR5980342
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.86 CAD - $106.86 CAD
$106.86 CAD
$106.86 CAD - $106.86 CAD
$106.86 CAD

Vendu en lots de : 1

Forets hautes performances FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 6,5mm avec une longueur totale de 79mm et une longueur de coupe de 34mm selon la norme DIN 6537 K avec une pointe 4 facettes auto-centrante de 140°, carbure monobloc avec revêtement TiAlN et une âme continuellement amincie pour percer des profondeurs de 3xD sans débourrage dans l'acier, l'inox, la fonte, les matériaux non-ferreux et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R4586,5
GradeTiAlN
Product Number5980342
Product FamilyR458

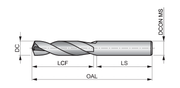

Dimensions
Cutting Diameter — in (DC)0.2559"
Cutting Diameter — mm (DC)6.5 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Flute Length — in (LCF)1.3386"
Flute Length — mm (LCF)34.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant No
StandardDIN 6537 K
Reference Numbers
EDP Number615447
EAN7320760615447
File Type Download
R4586,5 — 3D Model STP Download
R4586,5 — Line Drawing PDF Download
