R4588.0
R4588.0
R4588.0
R4588.0

R4588.0

UGC DOR5980400
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.86 CAD - $106.86 CAD
$106.86 CAD
$106.86 CAD - $106.86 CAD
$106.86 CAD

Vendu en lots de : 1

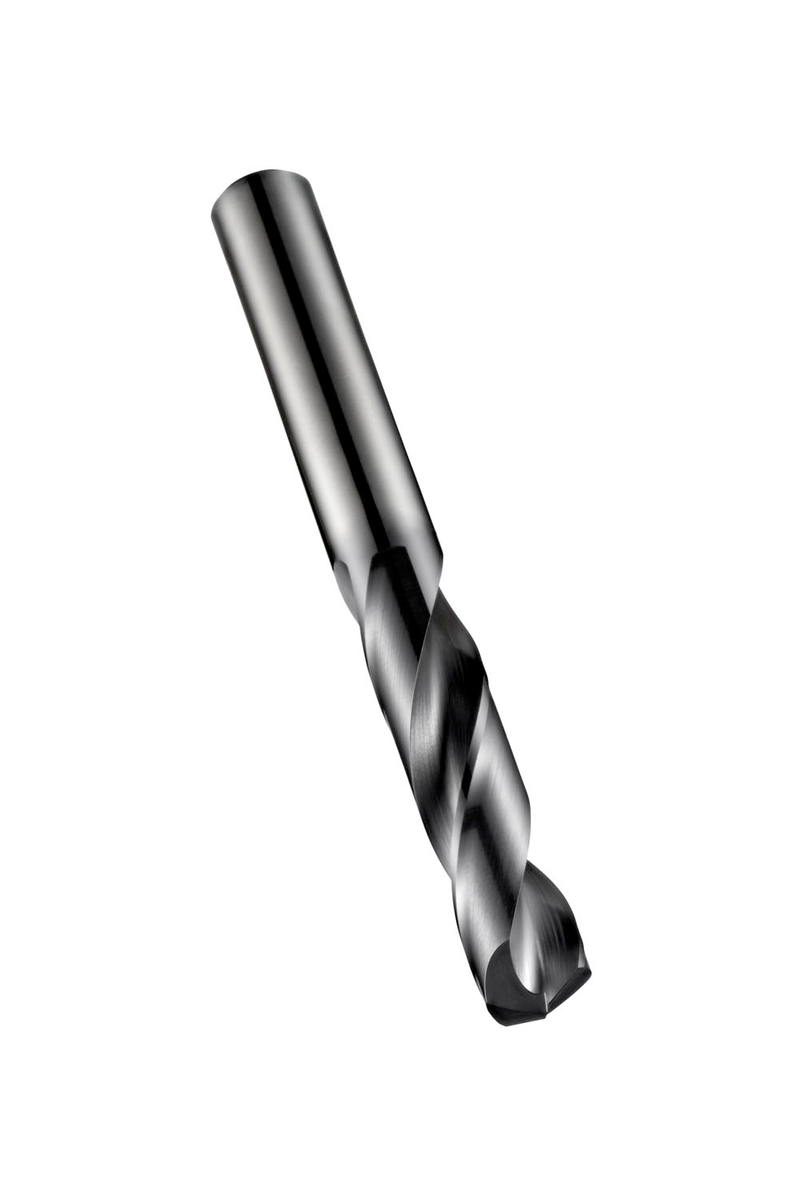

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 8 mm, longueur totale 79 mm et longueur de coupe 41 mm selon la norme DIN 6537 K, avec pointe auto-centrante 4 facettes à 140° (géométrie spéciale), en carbure monobloc avec revêtement TiAlN et âme amincie en continu pour un perçage jusqu'à 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R4588.0
GradeTiAlN
Product Number5980400
Product FamilyR458

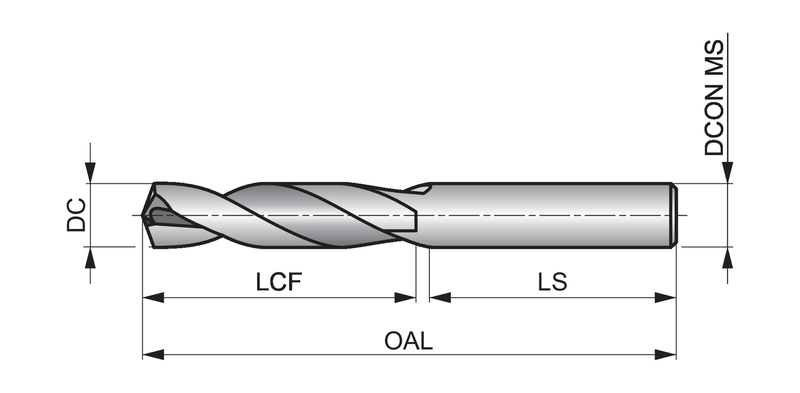

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Flute Length — in (LCF)1.6142"
Flute Length — mm (LCF)41.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant No
StandardDIN 6537 K
Reference Numbers
EDP Number615508
EAN7320760615508
File Type Download
R4588.0 — 3D Model STP Download
R4588.0 — Line Drawing PDF Download
