R51011.2
R51011.2
R51011.2
R51011.2

R51011.2

UGC DOR5980427
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$265.57 CAD - $265.57 CAD
$265.57 CAD
$265.57 CAD - $265.57 CAD
$265.57 CAD

Vendu en lots de : 1

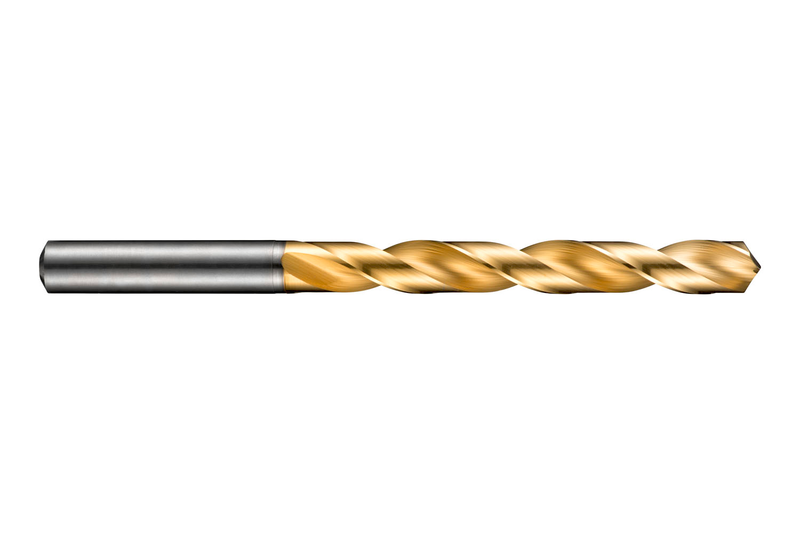

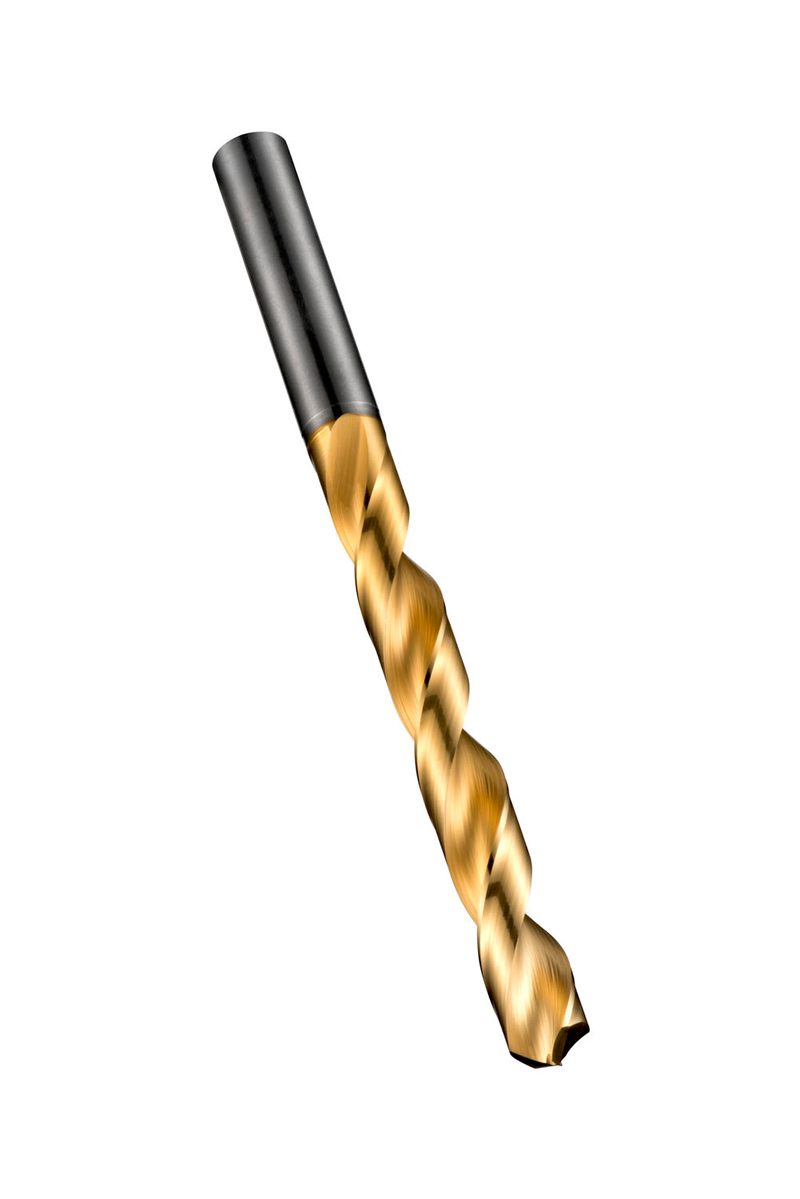

Foret CDX haute performance à queue cylindrique, diamètre 11,2 mm, longueur totale 142 mm et longueur utile 94 mm selon la norme DIN 338 avec une pointe en volute à 4 facettes de 130°, en carbure monobloc avec revêtement TiN pour un perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51011.2
GradeTiN
Product Number5980427
Product FamilyR510

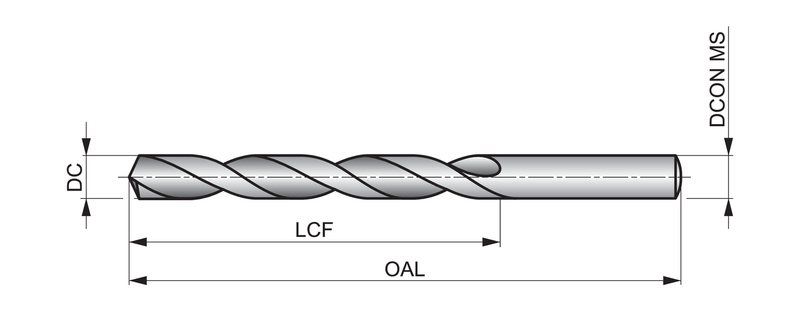

Dimensions
Cutting Diameter — in (DC)0.4409"
Cutting Diameter — mm (DC)11.2 mm
Overall Length — in (OAL)5.5906"
Overall Length — mm (OAL)142.0 mm
Flute Length — in (LCF)3.7008"
Flute Length — mm (LCF)94.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4409"
Connection Dia. — mm (DCON)11.2 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number216859
EAN7320760216859
File Type Download
R51011.2 — 3D Model STP Download
R51011.2 — Line Drawing PDF Download
