R51014.0
R51014.0
R51014.0
R51014.0

R51014.0

UGC DOR5980458
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$430.57 CAD - $430.57 CAD
$430.57 CAD
$430.57 CAD - $430.57 CAD
$430.57 CAD

Vendu en lots de : 1

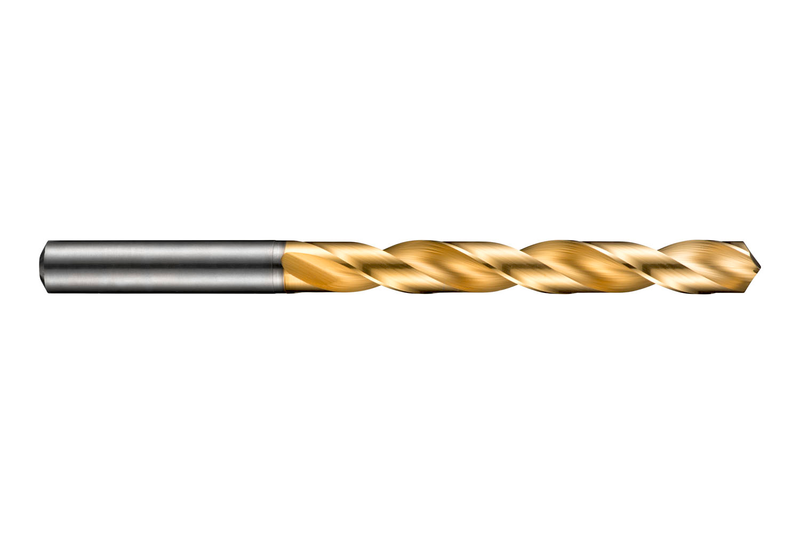

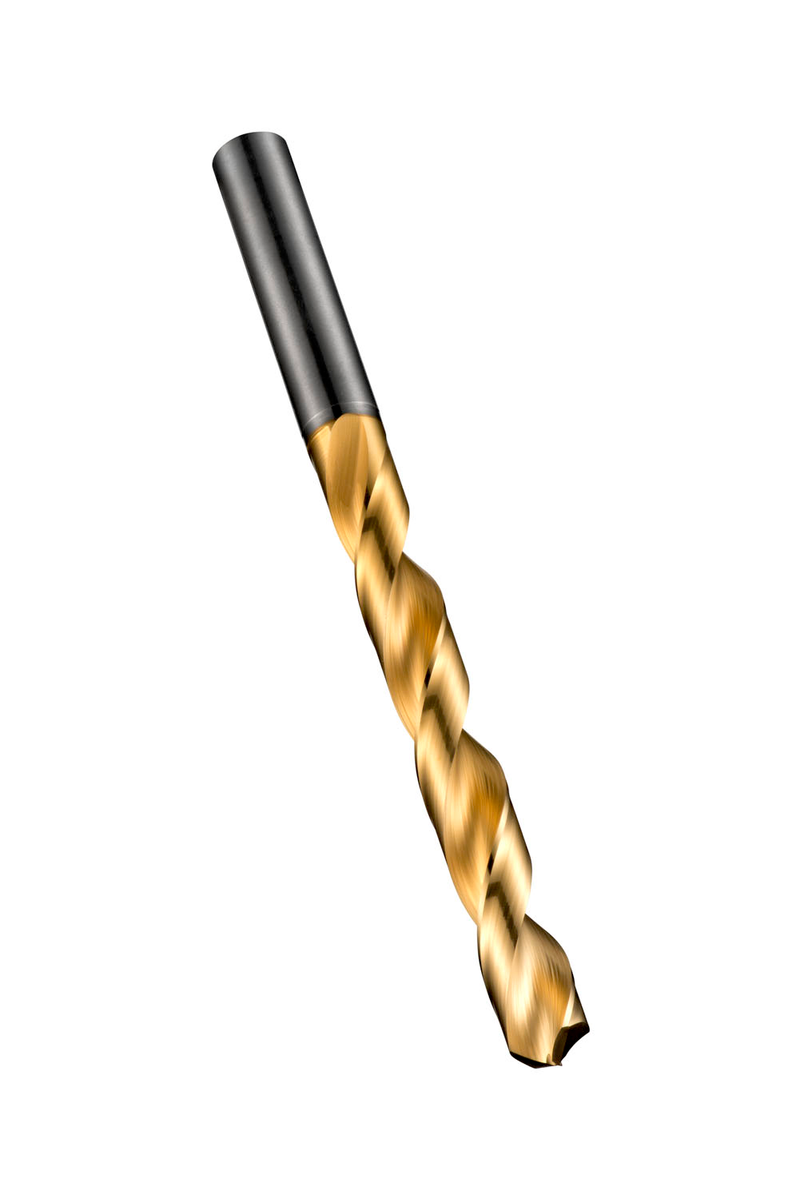

Foret CDX haute performance à queue cylindrique, diamètre 14mm avec une longueur totale de 160mm et une longueur de coupe de 108mm selon la norme DIN 338 avec une pointe en spirale à 4 facettes à 130°, en carbure monobloc avec revêtement TiN pour le perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51014.0
GradeTiN
Product Number5980458
Product FamilyR510

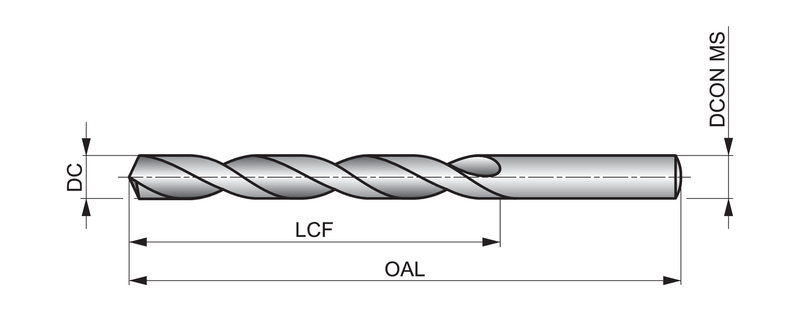

Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Flute Length — in (LCF)4.252"
Flute Length — mm (LCF)108.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number115633
EAN7320760115633
File Type Download
R51014.0 — 3D Model STP Download
R51014.0 — Line Drawing PDF Download
