UGC DOR5980499
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$429.00 CAD - $429.00 CAD
$429.00 CAD
$429.00 CAD - $429.00 CAD
$429.00 CAD

Vendu en lots de : 1

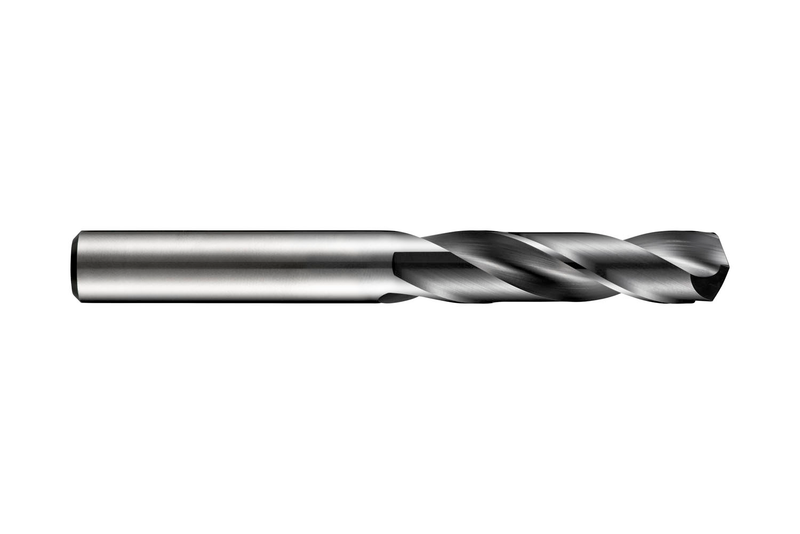

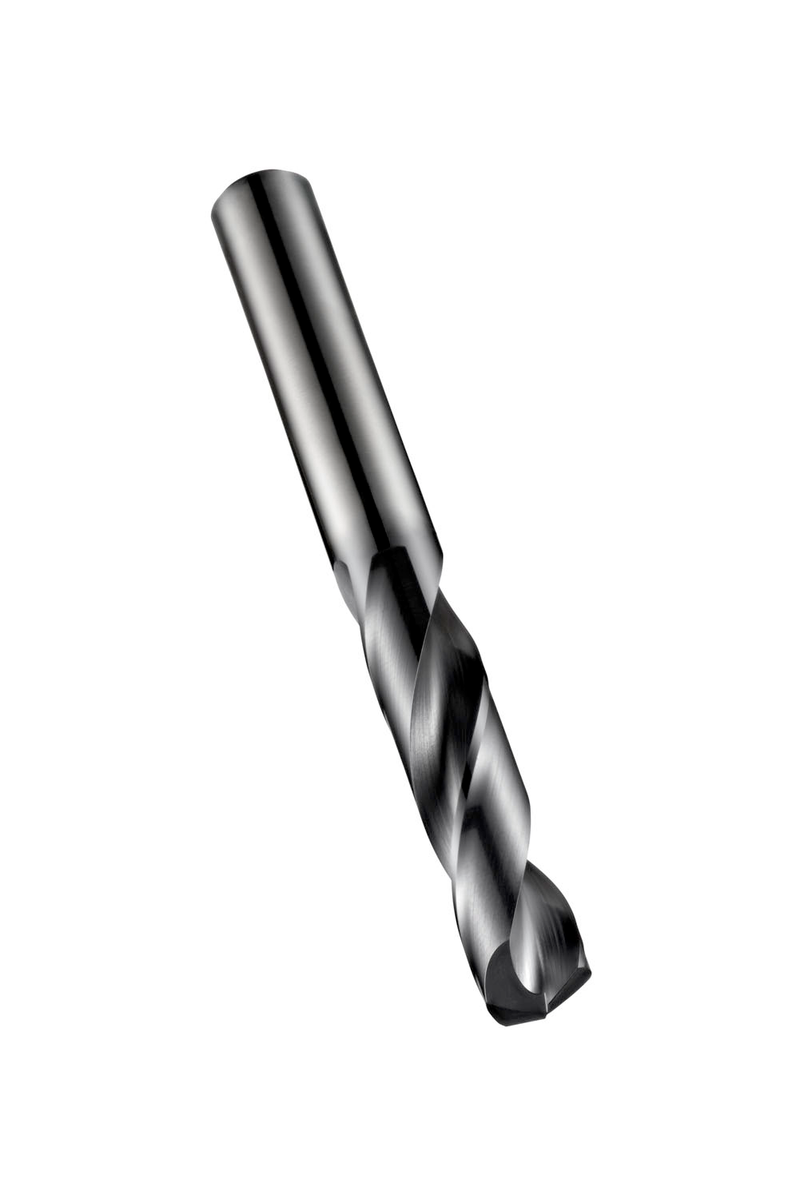

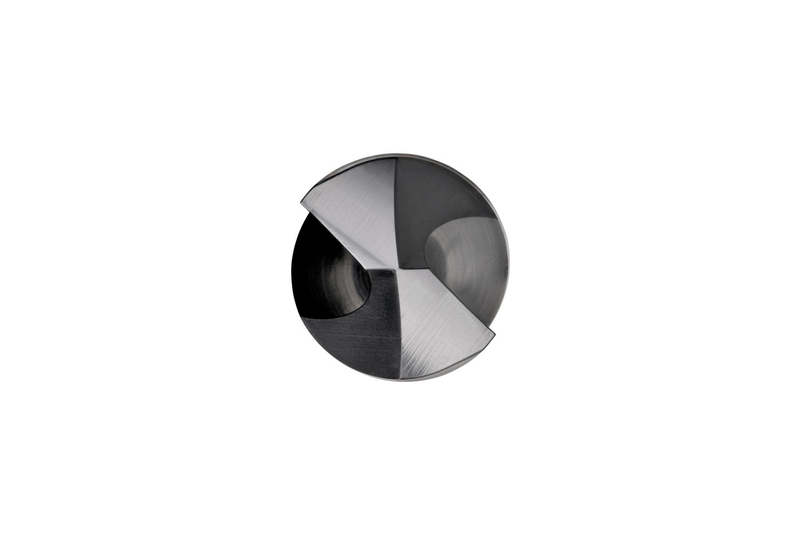

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 16,5 mm, longueur totale 123 mm et longueur de goujure 73 mm selon la norme DIN 6537 K avec une pointe 4 facettes fendue modifiée de 140°, carbure monobloc avec revêtement TiAlN et âme amincie en continu pour un perçage à 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R45816.5
GradeTiAlN
Product Number5980499
Product FamilyR458

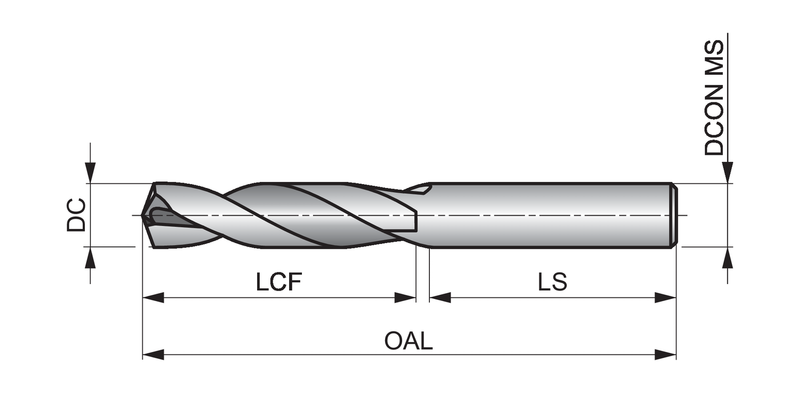

Dimensions
Cutting Diameter — in (DC)0.6496"
Cutting Diameter — mm (DC)16.5 mm
Overall Length — in (OAL)4.8425"
Overall Length — mm (OAL)123.0 mm
Flute Length — in (LCF)2.874"
Flute Length — mm (LCF)73.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant No
StandardDIN 6537 K
Reference Numbers
EDP Number135211
EAN7320760135211
File Type Download
R45816.5 — 3D Model STP Download
R45816.5 — Line Drawing PDF Download
