R5108.5
R5108.5
R5108.5
R5108.5

R5108.5

UGC DOR5980507
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$177.57 CAD - $177.57 CAD
$177.57 CAD
$177.57 CAD - $177.57 CAD
$177.57 CAD

Vendu en lots de : 1

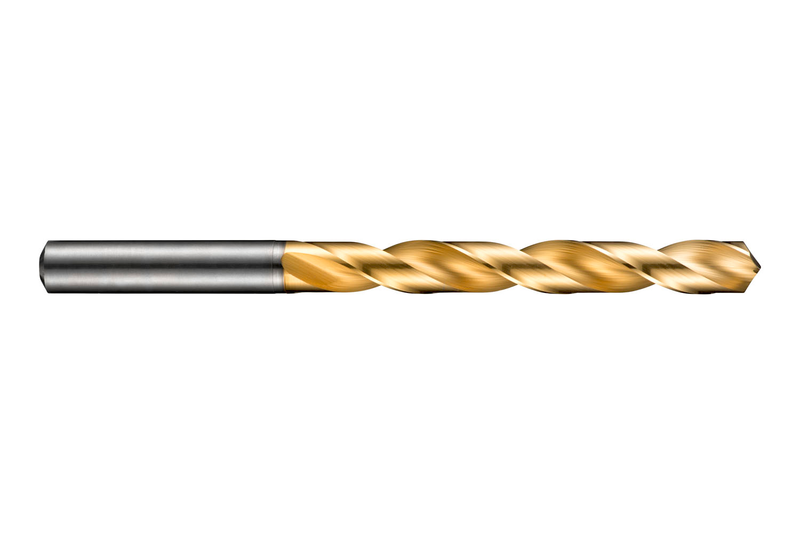

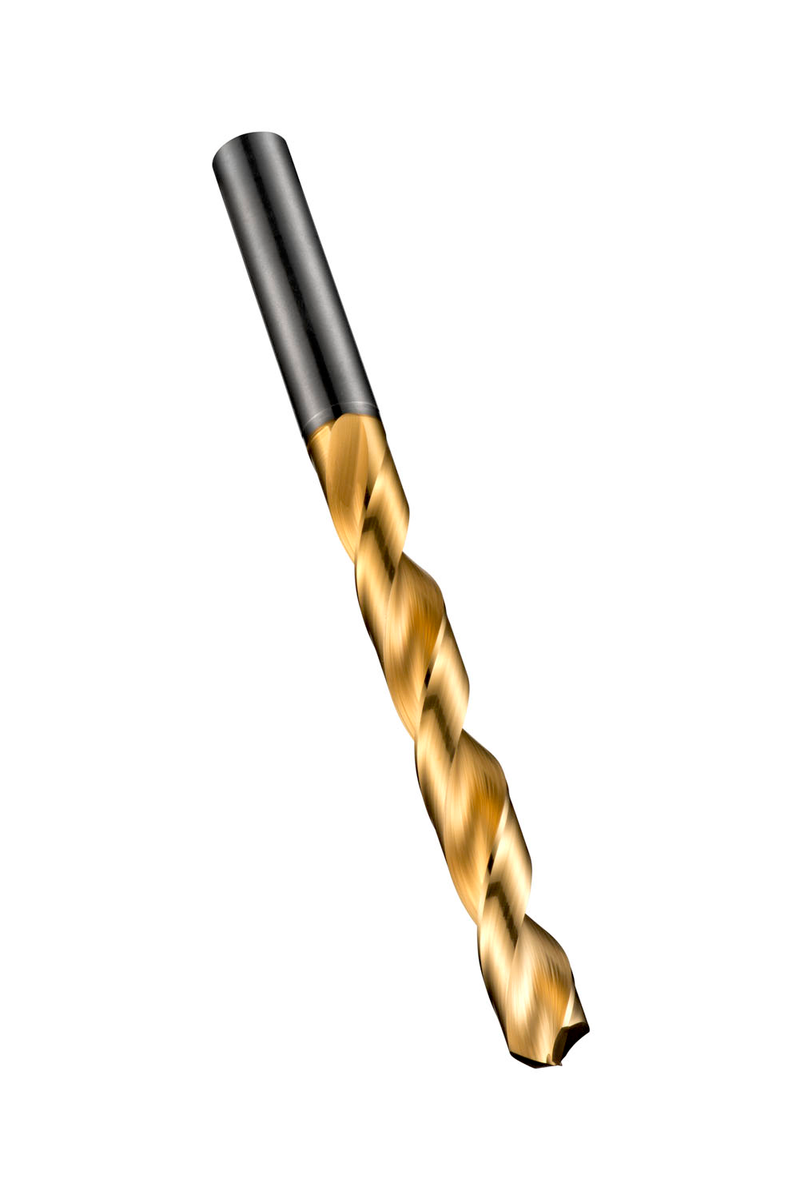

Foret CDX haute performance à queue cylindrique, diamètre 8,5 mm, longueur totale 117 mm et longueur de coupe 75 mm selon la norme DIN 338 avec pointe à hélice à 4 facettes de 130°, en carbure monobloc avec revêtement TiN pour le perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5108.5
GradeTiN
Product Number5980507
Product FamilyR510

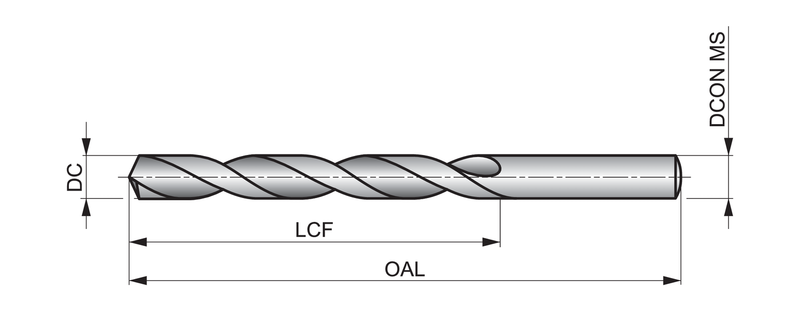

Dimensions
Cutting Diameter — in (DC)0.3346"
Cutting Diameter — mm (DC)8.5 mm
Overall Length — in (OAL)4.6063"
Overall Length — mm (OAL)117.0 mm
Flute Length — in (LCF)2.9528"
Flute Length — mm (LCF)75.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3346"
Connection Dia. — mm (DCON)8.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number115879
EAN7320760115879
File Type Download
R5108.5 — 3D Model STP Download
R5108.5 — Line Drawing PDF Download
