R5108.8
R5108.8
R5108.8
R5108.8

R5108.8

UGC DOR5980516
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$183.07 CAD - $183.07 CAD
$183.07 CAD
$183.07 CAD - $183.07 CAD
$183.07 CAD

Vendu en lots de : 1

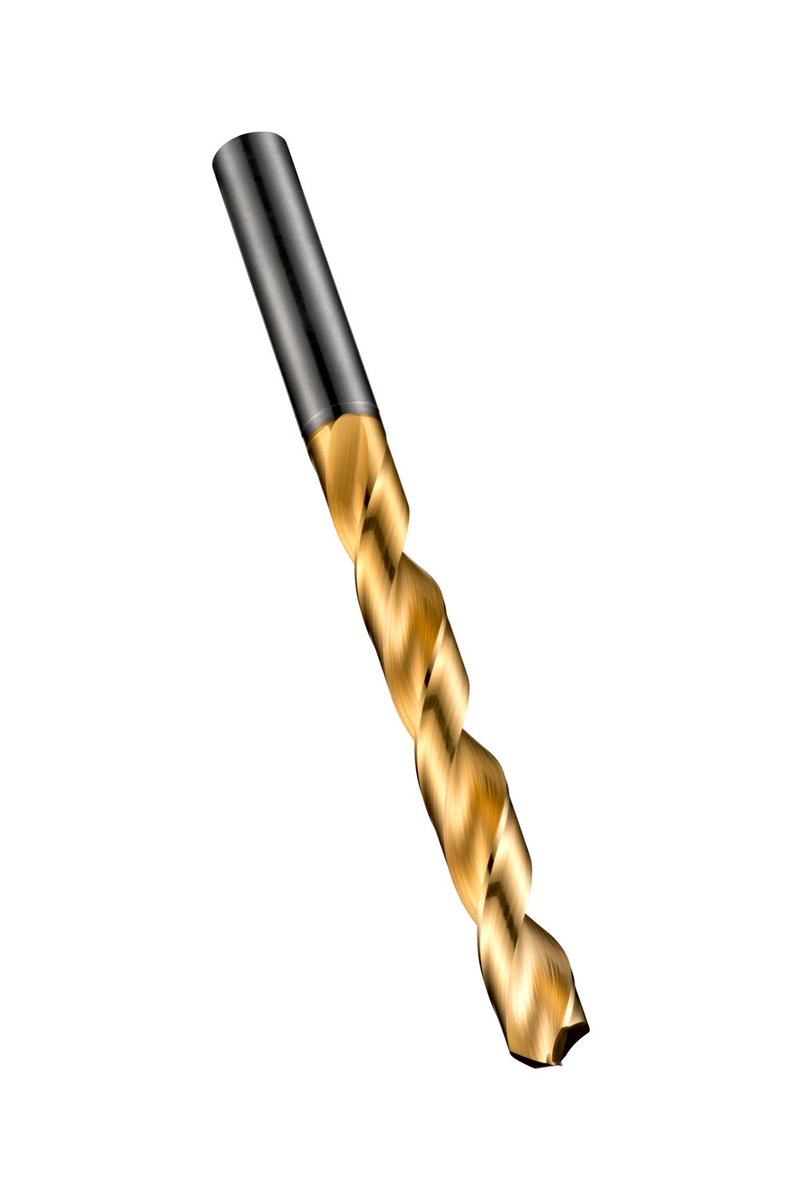

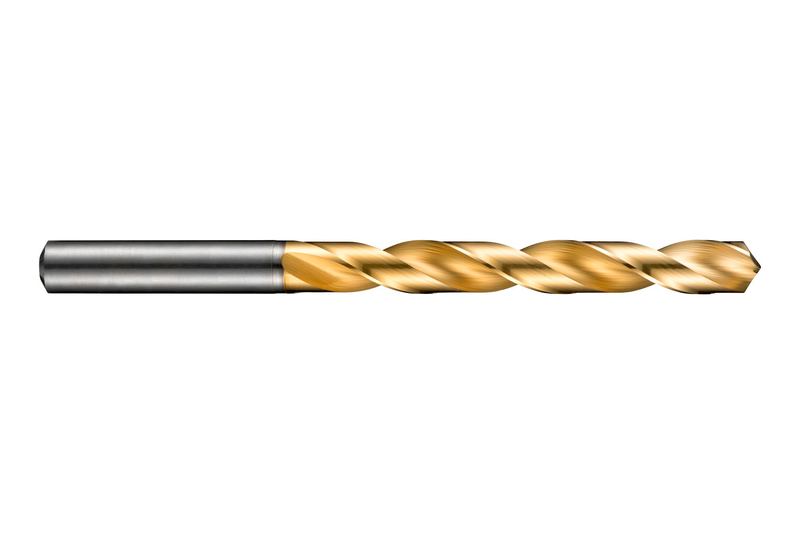

Foret CDX haute performance à queue droite, diamètre 8,8 mm avec une longueur totale de 125 mm et une longueur utile de 81 mm conforme à la norme DIN 338, à pointe en hélice 4 facettes de 130°, en carbure monobloc avec revêtement TiN pour le perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5108.8
GradeTiN
Product Number5980516
Product FamilyR510
Dimensions
Cutting Diameter — in (DC)0.3465"
Cutting Diameter — mm (DC)8.8 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Flute Length — in (LCF)3.189"
Flute Length — mm (LCF)81.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3465"
Connection Dia. — mm (DCON)8.8 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number345283
EAN7320760345283
File Type Download
R5108.8 — 3D Model STP Download

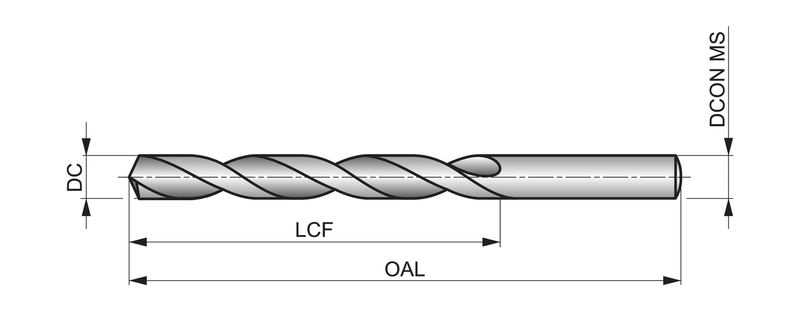

R5108.8 — Line Drawing PDF Download
