R5109.2
R5109.2
R5109.2
R5109.2

R5109.2

UGC DOR5980521
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$189.36 CAD - $189.36 CAD
$189.36 CAD
$189.36 CAD - $189.36 CAD
$189.36 CAD

Vendu en lots de : 1

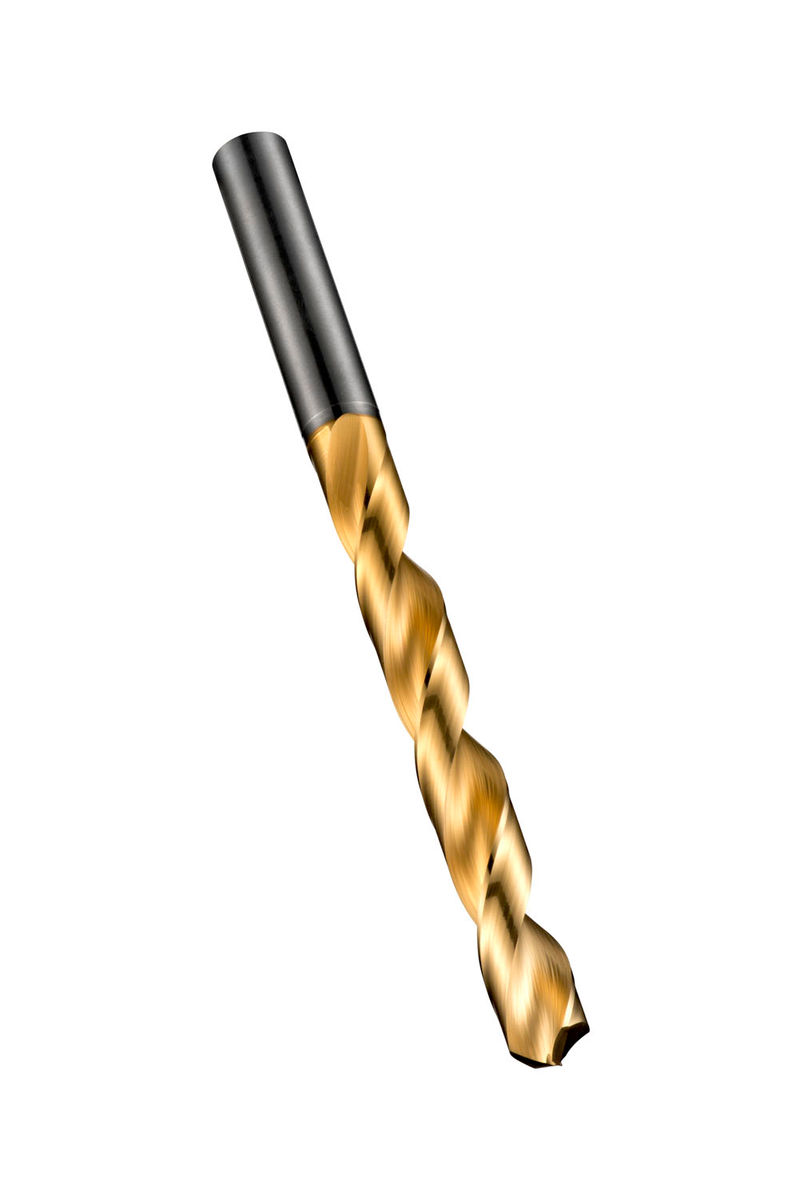

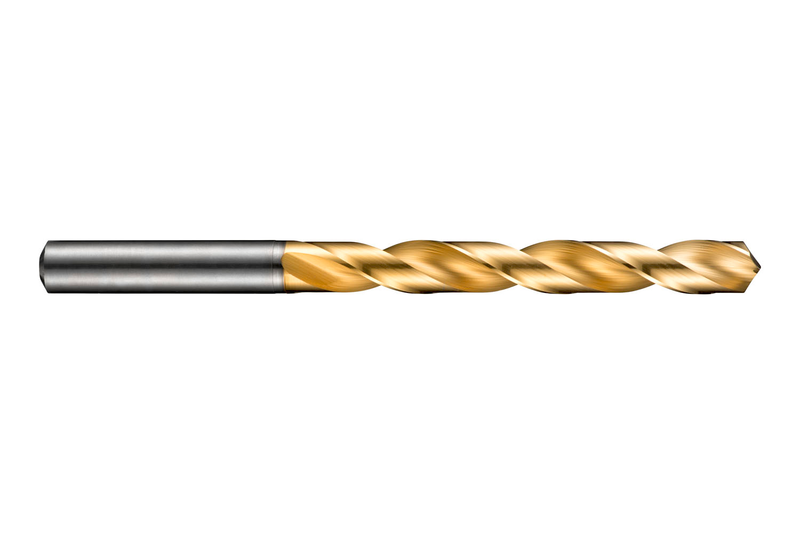

Foret CDX haute performance à queue cylindrique, diamètre 9,2mm, longueur totale de 125mm et longueur utile de 81mm selon la norme DIN 338, avec pointe hélicoïdale à 4 facettes de 130°, en carbure monobloc avec revêtement TiN pour le perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5109.2
GradeTiN
Product Number5980521
Product FamilyR510

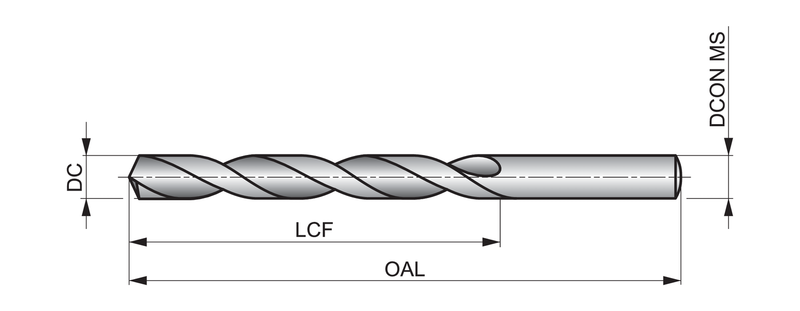

Dimensions
Cutting Diameter — in (DC)0.3622"
Cutting Diameter — mm (DC)9.2 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Flute Length — in (LCF)3.189"
Flute Length — mm (LCF)81.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3622"
Connection Dia. — mm (DCON)9.2 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number115893
EAN7320760115893
File Type Download
R5109.2 — 3D Model STP Download
R5109.2 — Line Drawing PDF Download
