UGC DOR5980546
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$108.43 CAD - $108.43 CAD
$108.43 CAD
$108.43 CAD - $108.43 CAD
$108.43 CAD

Vendu en lots de : 1

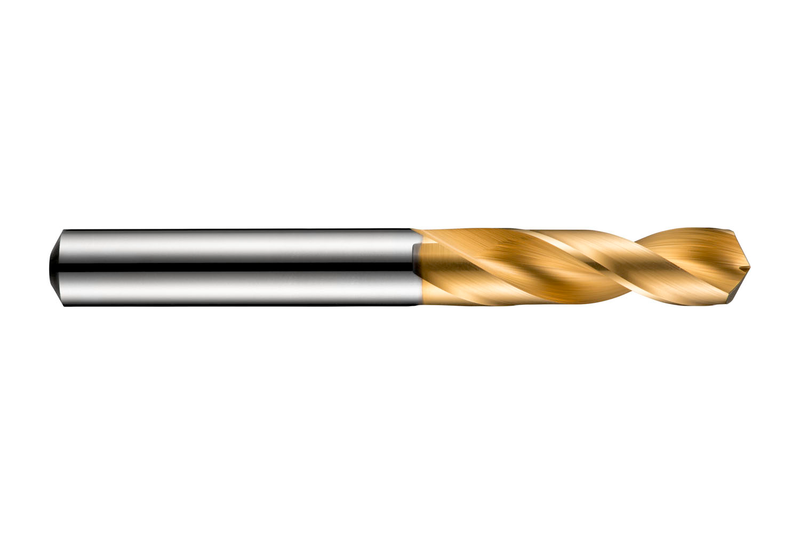

Foret CDX haute performance à queue cylindrique, diamètre 0,2500" (1/4) avec une longueur totale de 70 mm et une longueur de coupe de 31 mm selon la norme DIN 6539 avec une pointe à 4 facettes à hélice de 130°, en carbure monobloc avec revêtement TiN pour le perçage 2.5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5201/4
GradeTiN
Product Number5980546
Product FamilyR520
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Flute Length — in (LCF)1.2205"
Flute Length — mm (LCF)31.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 6539
Reference Numbers
EDP Number210741
EAN7320760210741
File Type Download
R5201/4 — 3D Model STP Download
R5201/4 — Line Drawing PDF Download
