R5201/8
R5201/8
R5201/8
R5201/8

R5201/8

UGC DOR5980549
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$67.66 CAD - $67.66 CAD
$67.66 CAD
$67.66 CAD - $67.66 CAD
$67.66 CAD

Vendu en lots de : 1

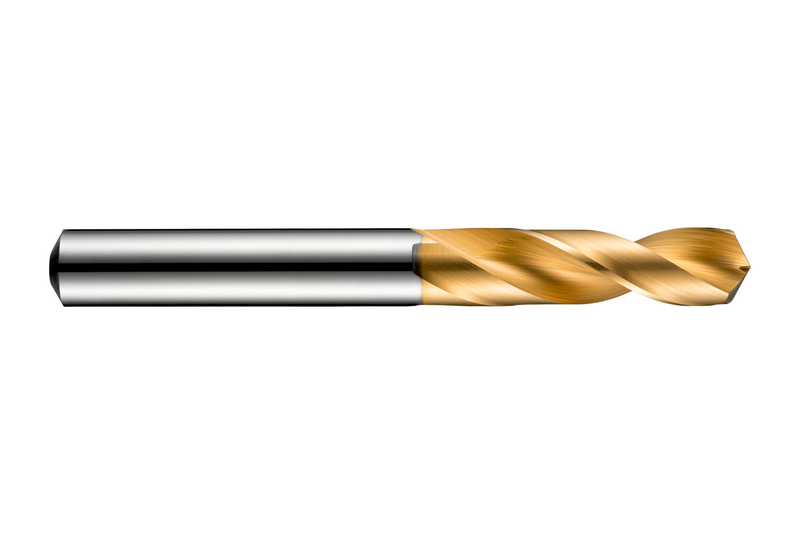

Foret CDX haute performance à queue cylindrique, diamètre 0,1252" (1/8) avec une longueur totale de 49mm et une longueur de coupe de 18mm selon la norme DIN 6539 avec une pointe 4 facettes à hélice de 130°, en carbure monobloc avec revêtement TiN pour le perçage à 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5201/8
GradeTiN
Product Number5980549
Product FamilyR520
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)1.9291"
Overall Length — mm (OAL)49.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1252"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 6539
Reference Numbers
EDP Number210666
EAN7320760210666
File Type Download
R5201/8 — 3D Model STP Download
R5201/8 — Line Drawing PDF Download
