R52011.0
R52011.0
R52011.0
R52011.0

R52011.0

UGC DOR5980569
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$189.36 CAD - $189.36 CAD
$189.36 CAD
$189.36 CAD - $189.36 CAD
$189.36 CAD

Vendu en lots de : 1

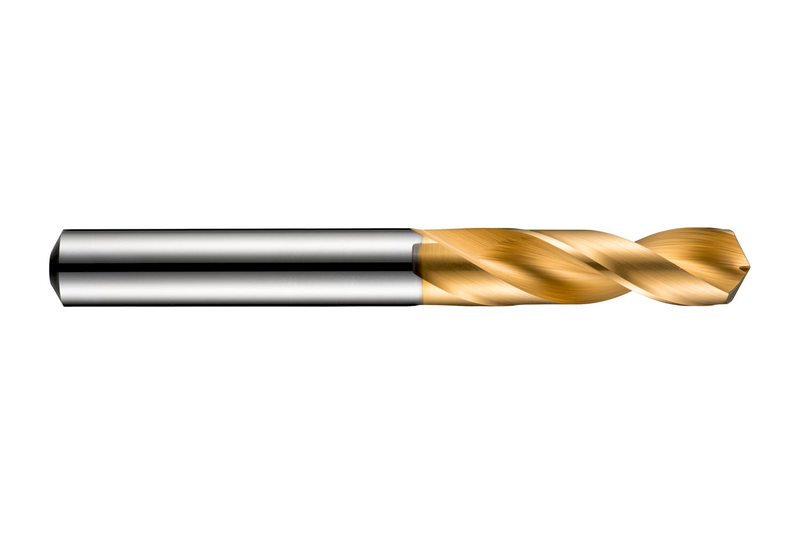

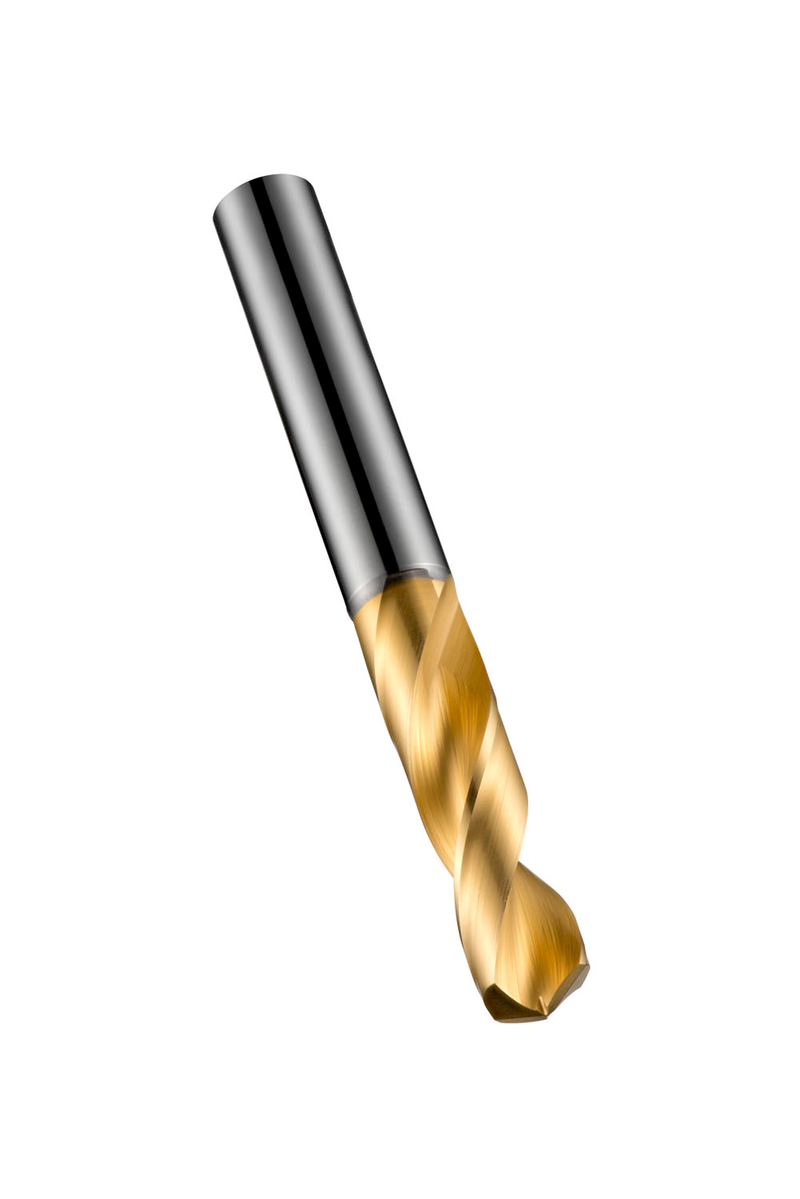

Foret CDX haute performance à queue cylindrique, diamètre 11 mm avec une longueur totale de 95 mm et une longueur de coupe de 47 mm selon la norme DIN 6539, pointe en volute à 4 facettes de 130°, en carbure monobloc avec revêtement TiN pour perçage 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R52011.0
GradeTiN
Product Number5980569
Product FamilyR520

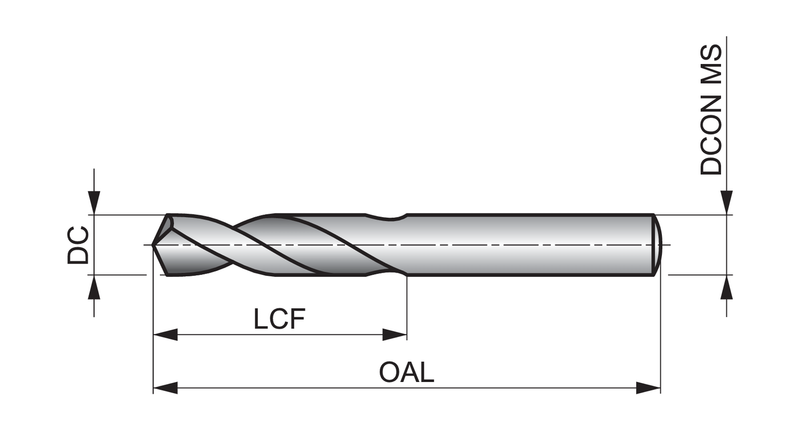

Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)3.7402"
Overall Length — mm (OAL)95.0 mm
Flute Length — in (LCF)1.8504"
Flute Length — mm (LCF)47.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm

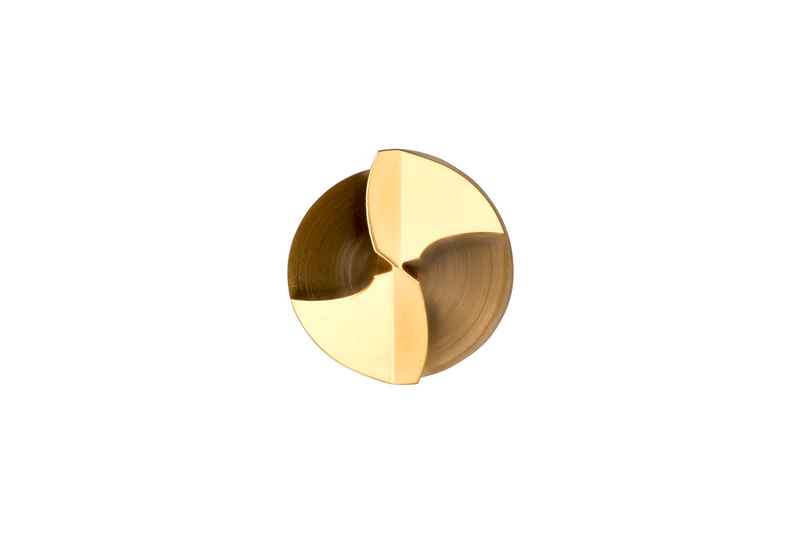

Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 6539
Reference Numbers
EDP Number115961
EAN7320760115961
File Type Download
R52011.0 — 3D Model STP Download
R52011.0 — Line Drawing PDF Download
