R51010.5
R51010.5
R51010.5
R51010.5

R51010.5

UGC DOR5980581
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$227.86 CAD - $227.86 CAD
$227.86 CAD
$227.86 CAD - $227.86 CAD
$227.86 CAD

Vendu en lots de : 1

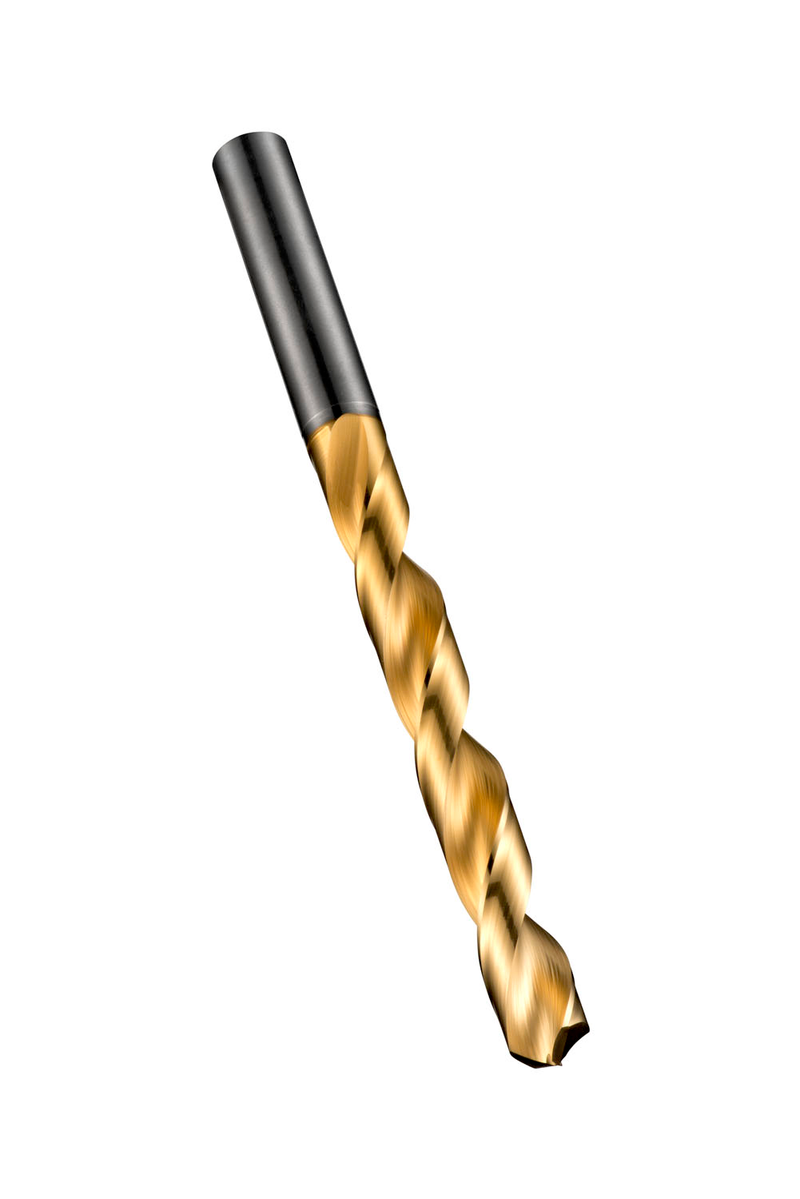

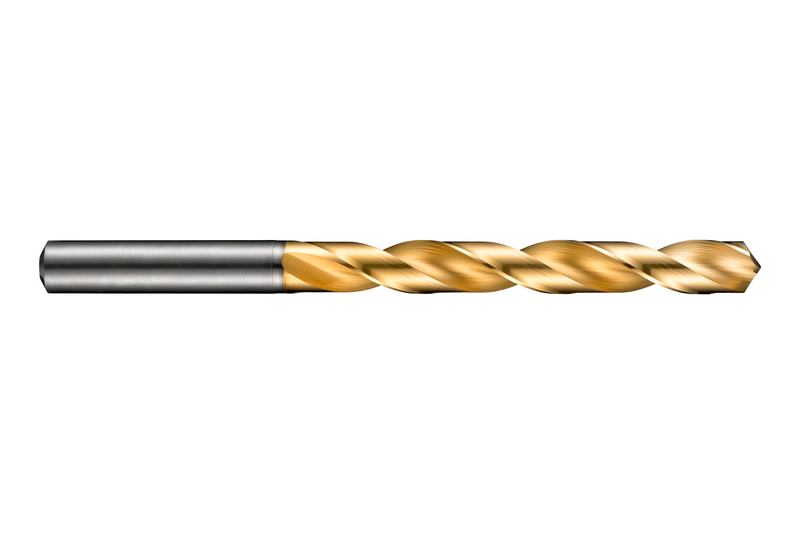

Foret CDX haute performance à queue cylindrique, diamètre de 10,5 mm, longueur totale de 133 mm et longueur de goujure de 87 mm selon la norme DIN 338, avec pointe en spirale à 4 facettes de 130°, en carbure monobloc avec revêtement TiN pour le perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51010.5
GradeTiN
Product Number5980581
Product FamilyR510

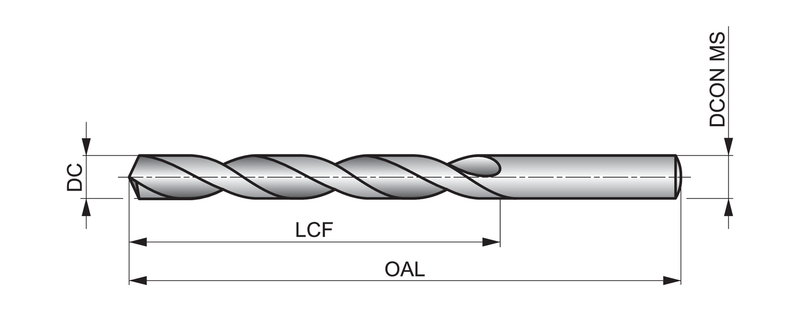

Dimensions
Cutting Diameter — in (DC)0.4134"
Cutting Diameter — mm (DC)10.5 mm
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — in (LCF)3.4252"
Flute Length — mm (LCF)87.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4134"
Connection Dia. — mm (DCON)10.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number115589
EAN7320760115589
File Type Download
R51010.5 — 3D Model STP Download
R51010.5 — Line Drawing PDF Download
