UGC DOR5980612
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$252.21 CAD - $252.21 CAD
$252.21 CAD
$252.21 CAD - $252.21 CAD
$252.21 CAD

Vendu en lots de : 1

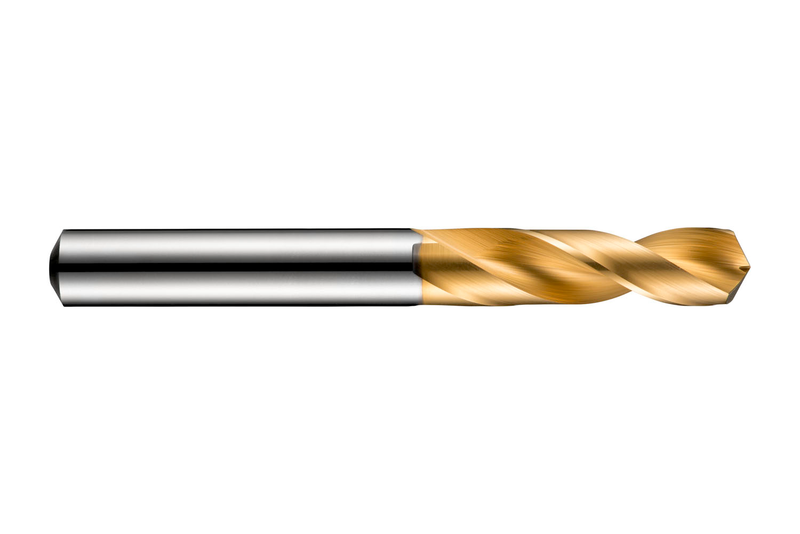

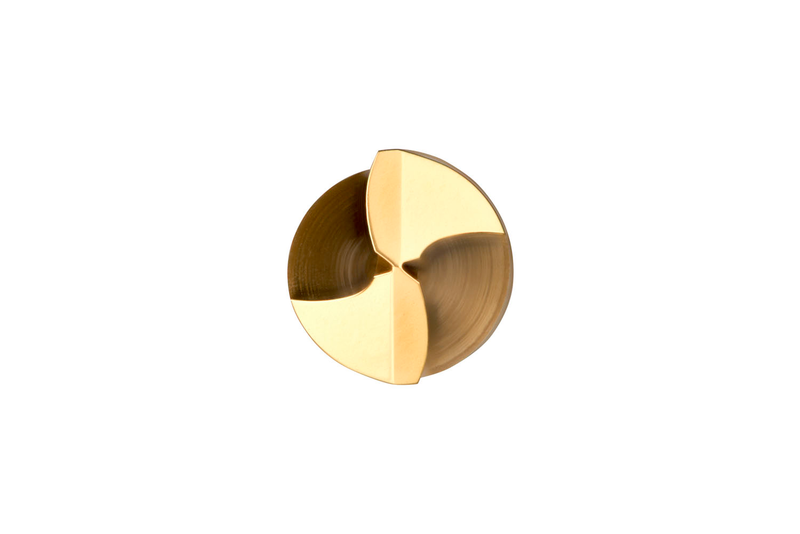

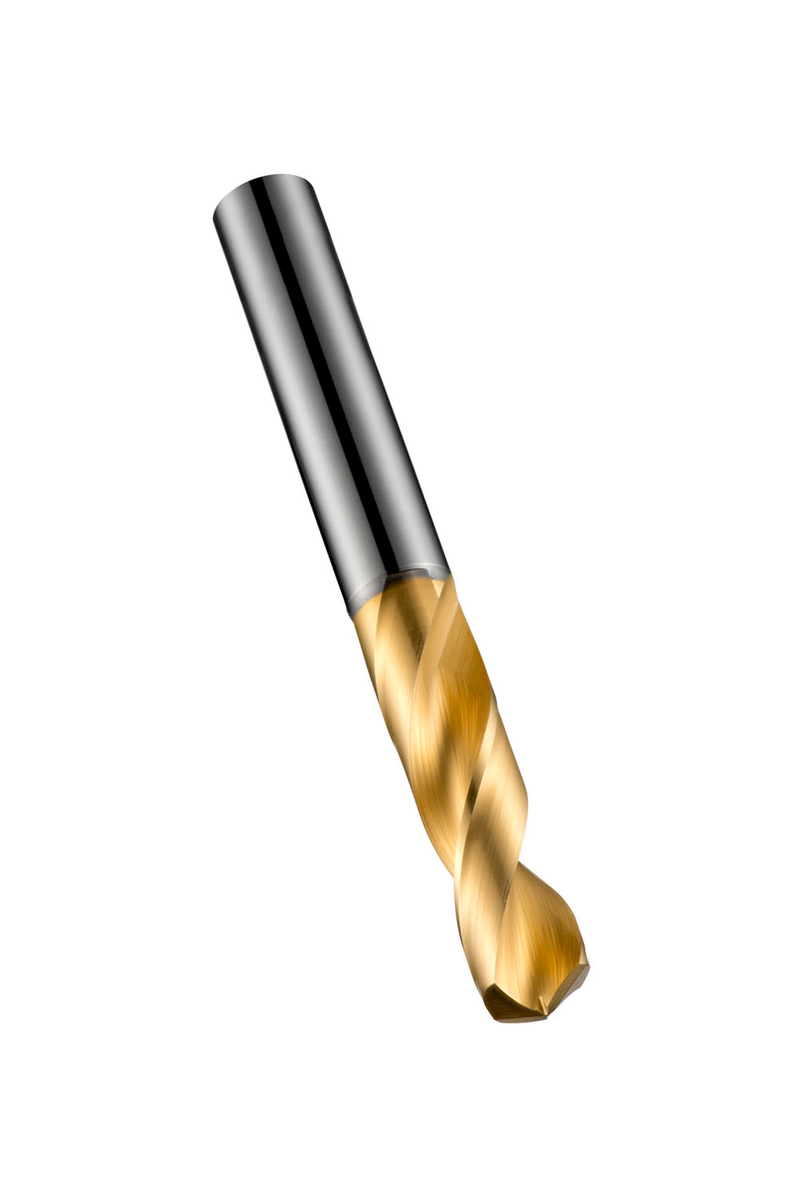

Foret CDX haute performance à queue cylindrique, diamètre 14mm avec une longueur totale de 107mm et une longueur de coupe de 54mm selon la norme DIN 6539 avec une pointe hélicoïdale à 4 facettes à 130°, en carbure monobloc avec revêtement TiN pour le perçage de 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R52014.0
GradeTiN
Product Number5980612
Product FamilyR520

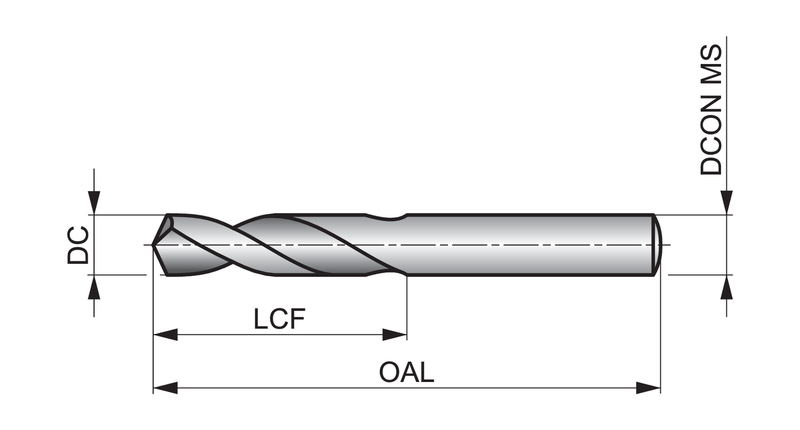

Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)4.2126"
Overall Length — mm (OAL)107.0 mm
Flute Length — in (LCF)2.126"
Flute Length — mm (LCF)54.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 6539
Reference Numbers
EDP Number116012
EAN7320760116012
File Type Download
R52014.0 — 3D Model STP Download
R52014.0 — Line Drawing PDF Download
