R5106.8
R5106.8
R5106.8
R5106.8

R5106.8

UGC DOR5980622
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$144.57 CAD - $144.57 CAD
$144.57 CAD
$144.57 CAD - $144.57 CAD
$144.57 CAD

Vendu en lots de : 1

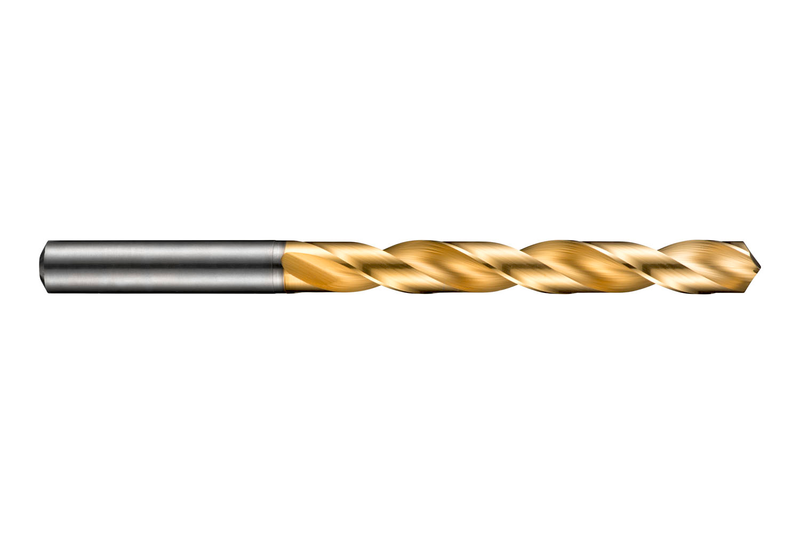

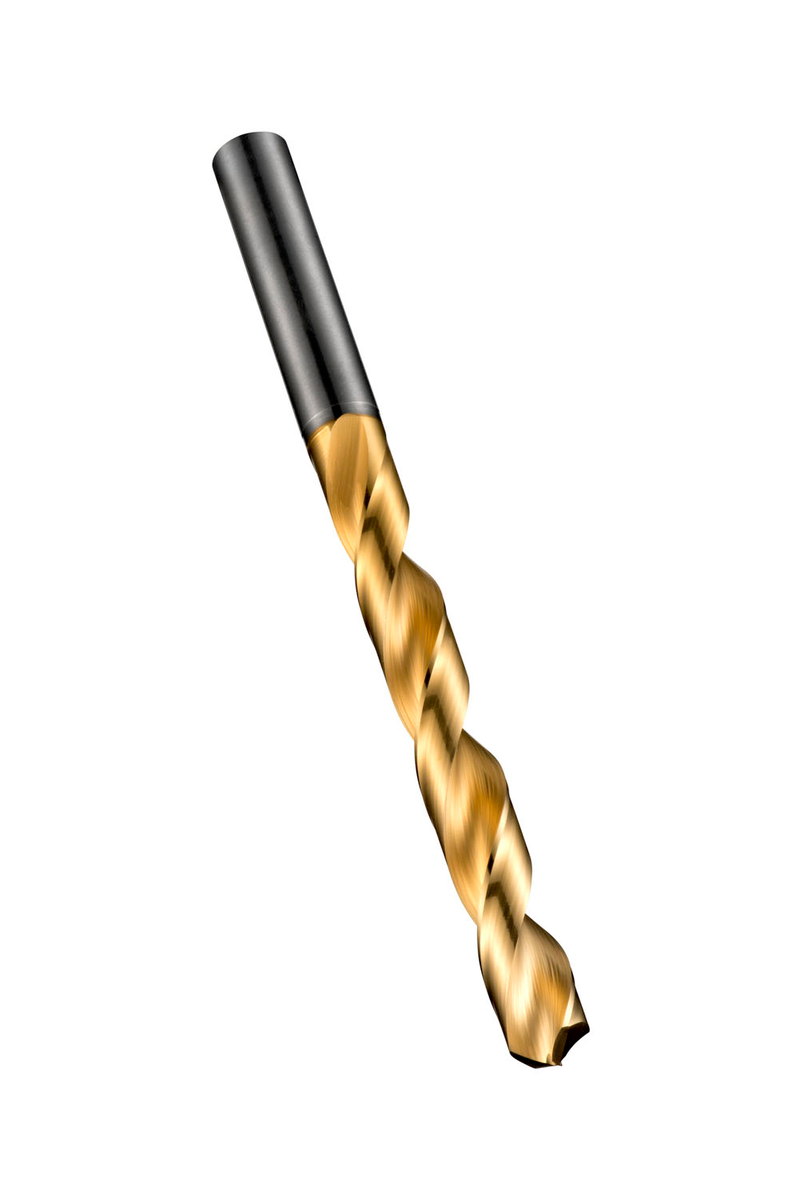

Foret CDX haute performance à queue cylindrique, diamètre 6,8 mm avec une longueur totale de 109 mm et une longueur de coupe de 69 mm selon la norme DIN 338 avec une pointe à volute à 4 facettes à 130°, en carbure monobloc avec revêtement TiN pour le perçage à 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5106.8
GradeTiN
Product Number5980622
Product FamilyR510

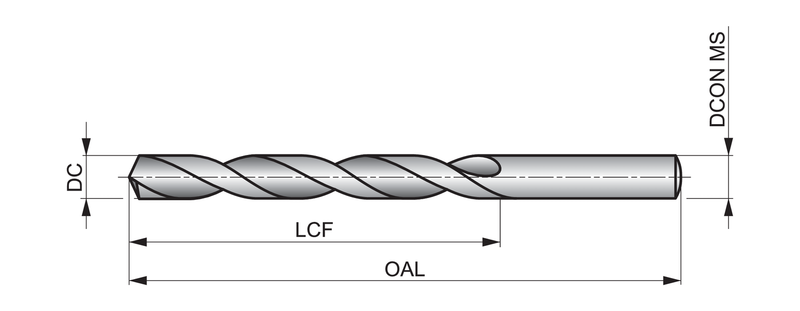

Dimensions
Cutting Diameter — in (DC)0.2677"
Cutting Diameter — mm (DC)6.8 mm
Overall Length — in (OAL)4.2913"
Overall Length — mm (OAL)109.0 mm
Flute Length — in (LCF)2.7165"
Flute Length — mm (LCF)69.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2677"
Connection Dia. — mm (DCON)6.8 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number115800
EAN7320760115800
File Type Download
R5106.8 — 3D Model STP Download
R5106.8 — Line Drawing PDF Download
