R5208.7
R5208.7
R5208.7
R5208.7

R5208.7

UGC DOR5981150
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$132.00 CAD - $132.00 CAD
$132.00 CAD
$132.00 CAD - $132.00 CAD
$132.00 CAD

Vendu en lots de : 1

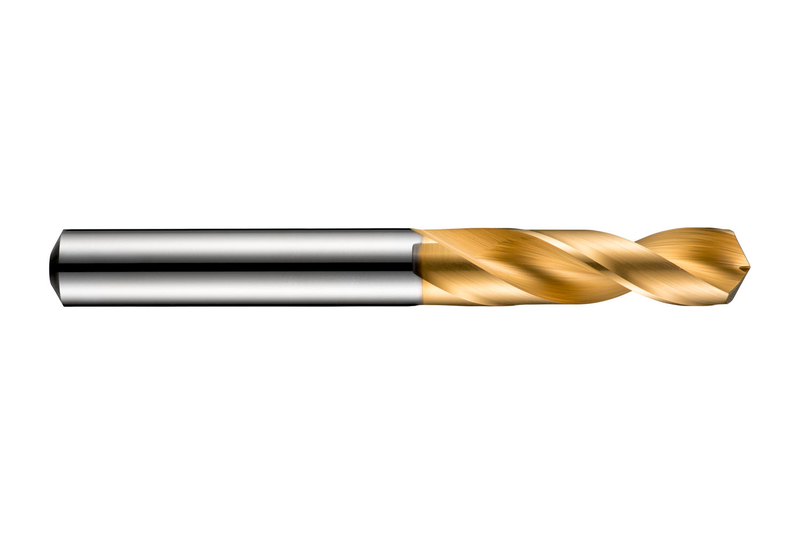

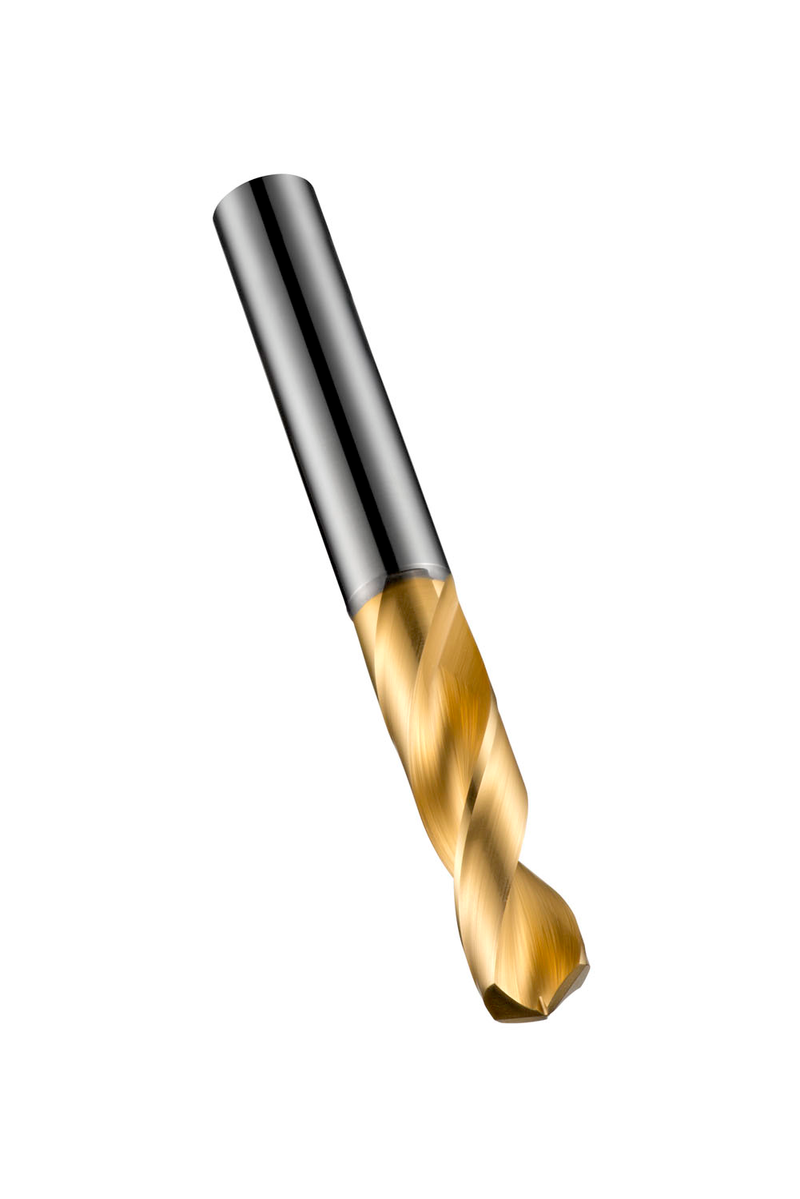

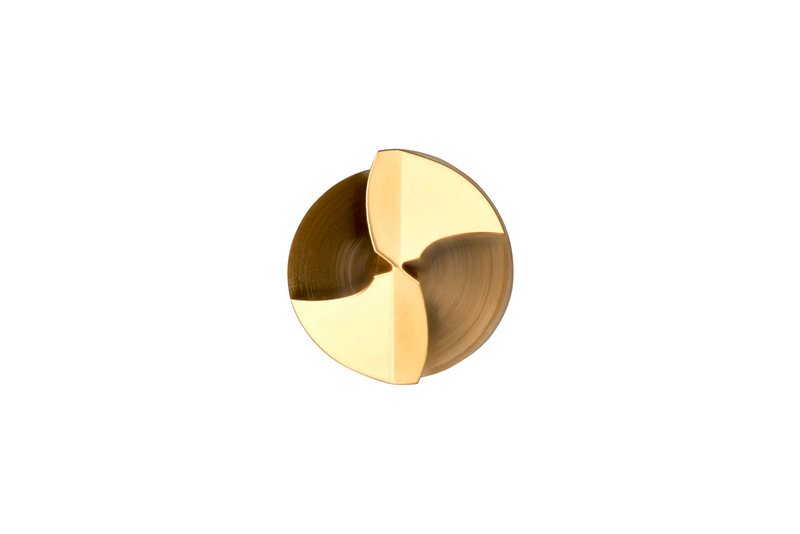

Foret CDX haute performance à queue droite, diamètre 8,7 mm avec une longueur totale de 84 mm et une longueur de coupe de 40 mm selon la norme DIN 6539 avec une pointe de volute à 4 facettes de 130°, en carbure monobloc avec revêtement TiN pour un perçage à 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5208.7
GradeTiN
Product Number5981150
Product FamilyR520

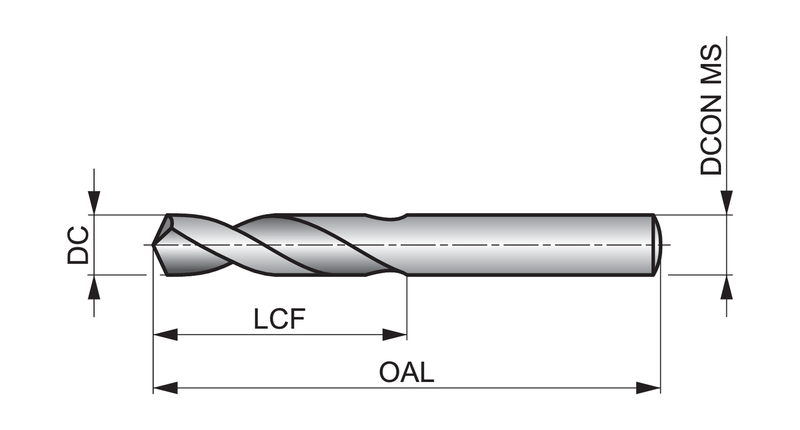

Dimensions
Cutting Diameter — in (DC)0.3425"
Cutting Diameter — mm (DC)8.7 mm
Overall Length — in (OAL)3.3071"
Overall Length — mm (OAL)84.0 mm
Flute Length — in (LCF)1.5748"
Flute Length — mm (LCF)40.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3425"
Connection Dia. — mm (DCON)8.7 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 6539
Reference Numbers
EDP Number216866
EAN7320760216866
File Type Download
R5208.7 — 3D Model STP Download
R5208.7 — Line Drawing PDF Download
