R5203.5
R5203.5
R5203.5
R5203.5

R5203.5

UGC DOR5981167
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.09 CAD - $70.09 CAD
$70.09 CAD
$70.09 CAD - $70.09 CAD
$70.09 CAD

Vendu en lots de : 1

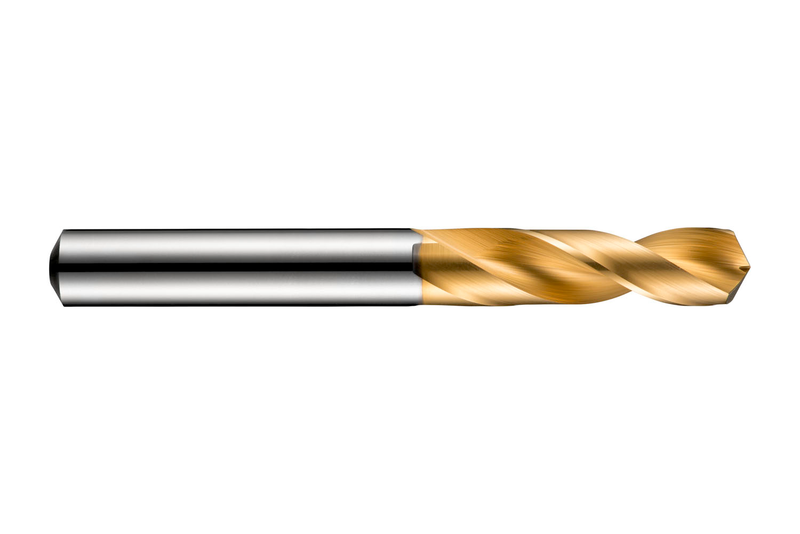

Foret CDX haute performance à queue cylindrique, diamètre 3,5 mm, longueur totale 52 mm et longueur de coupe 20 mm, conforme à la norme DIN 6539, avec pointe volute à 4 facettes de 130°, en carbure monobloc avec revêtement TiN pour le perçage 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5203.5
GradeTiN
Product Number5981167
Product FamilyR520
Dimensions
Cutting Diameter — in (DC)0.1378"
Cutting Diameter — mm (DC)3.5 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Flute Length — in (LCF)0.7874"
Flute Length — mm (LCF)20.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 6539
Reference Numbers
EDP Number116111
EAN7320760116111
File Type Download
R5203.5 — 3D Model STP Download
R5203.5 — Line Drawing PDF Download
