UGC DOR5981194
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$146.14 CAD - $146.14 CAD
$146.14 CAD
$146.14 CAD - $146.14 CAD
$146.14 CAD

Vendu en lots de : 1

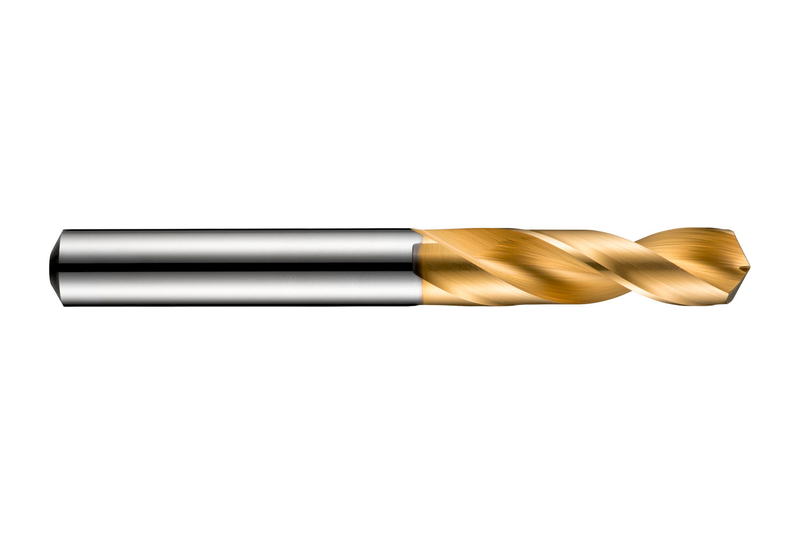

Foret CDX haute performance à queue cylindrique, diamètre 9,8 mm avec une longueur totale de 89 mm et une longueur de coupe de 43 mm selon la norme DIN 6539 avec une pointe à hélice à 4 facettes de 130°, en carbure monobloc avec revêtement TiN pour le perçage de 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5209.8
GradeTiN
Product Number5981194
Product FamilyR520
Dimensions
Cutting Diameter — in (DC)0.3858"
Cutting Diameter — mm (DC)9.8 mm
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Flute Length — in (LCF)1.6929"
Flute Length — mm (LCF)43.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3858"
Connection Dia. — mm (DCON)9.8 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 6539
Reference Numbers
EDP Number346570
EAN7320760346570
File Type Download
R5209.8 — 3D Model STP Download
R5209.8 — Line Drawing PDF Download
