R5204.2
R5204.2
R5204.2
R5204.2

R5204.2

UGC DOR5981208
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.33 CAD - $74.33 CAD
$74.33 CAD
$74.33 CAD - $74.33 CAD
$74.33 CAD

Vendu en lots de : 1

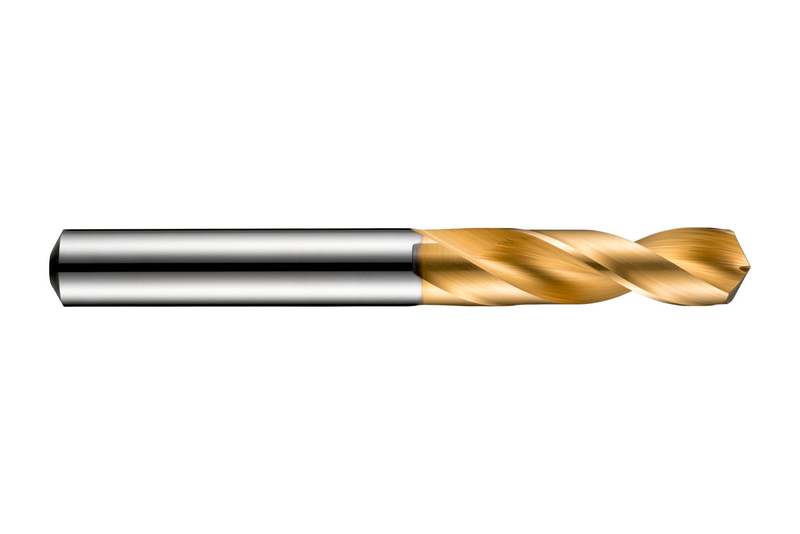

Foret CDX haute performance à queue droite, diamètre 4,2 mm, longueur totale 55 mm et longueur de coupe 22 mm selon la norme DIN 6539, pointe en volute 4 facettes à 130°, carbure monobloc avec revêtement TiN pour le perçage à 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5204.2
GradeTiN
Product Number5981208
Product FamilyR520
Dimensions
Cutting Diameter — in (DC)0.1654"
Cutting Diameter — mm (DC)4.2 mm
Overall Length — in (OAL)2.1654"
Overall Length — mm (OAL)55.0 mm
Flute Length — in (LCF)0.8661"
Flute Length — mm (LCF)22.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1654"
Connection Dia. — mm (DCON)4.2 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 6539
Reference Numbers
EDP Number116180
EAN7320760116180
File Type Download
R5204.2 — 3D Model STP Download
R5204.2 — Line Drawing PDF Download
