R5204.3
R5204.3
R5204.3
R5204.3

R5204.3

UGC DOR5981212
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.33 CAD - $74.33 CAD
$74.33 CAD
$74.33 CAD - $74.33 CAD
$74.33 CAD

Vendu en lots de : 1

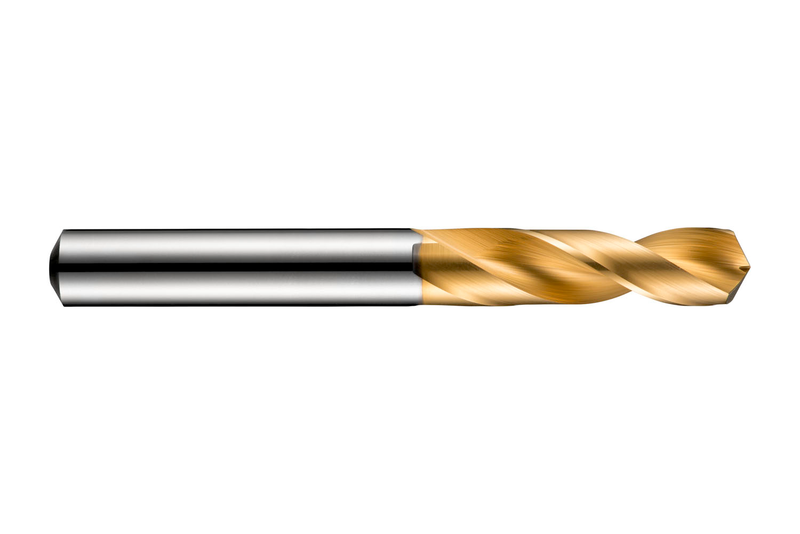

Foret CDX haute performance à queue cylindrique, diamètre 4,3 mm avec une longueur totale de 58 mm et une longueur de coupe de 24 mm selon la norme DIN 6539, avec une pointe à volute à 4 facettes de 130°, en carbure monobloc avec revêtement TiN pour le perçage à 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5204.3
GradeTiN
Product Number5981212
Product FamilyR520
Dimensions
Cutting Diameter — in (DC)0.1693"
Cutting Diameter — mm (DC)4.3 mm
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Flute Length — in (LCF)0.9449"
Flute Length — mm (LCF)24.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1693"
Connection Dia. — mm (DCON)4.3 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 6539
Reference Numbers
EDP Number116197
EAN7320760116197
File Type Download
R5204.3 — 3D Model STP Download
R5204.3 — Line Drawing PDF Download
