R5204.6
R5204.6
R5204.6
R5204.6

R5204.6

UGC DOR5981225
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.36 CAD - $79.36 CAD
$79.36 CAD
$79.36 CAD - $79.36 CAD
$79.36 CAD

Vendu en lots de : 1

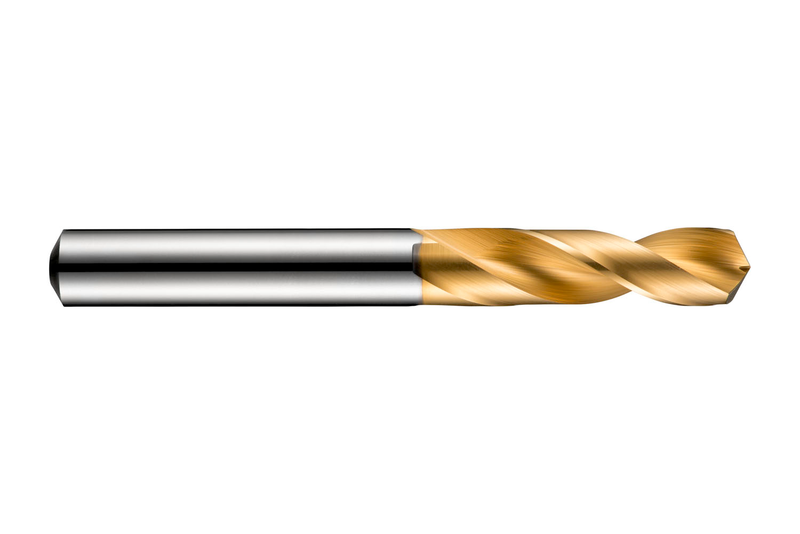

Foret CDX haute performance à queue cylindrique, diamètre 4,6 mm, longueur totale 58 mm et longueur de coupe 24 mm selon la norme DIN 6539, avec pointe à 4 facettes à volute de 130°, en carbure monobloc avec revêtement TiN pour le perçage 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5204.6
GradeTiN
Product Number5981225
Product FamilyR520
Dimensions
Cutting Diameter — in (DC)0.1811"
Cutting Diameter — mm (DC)4.6 mm
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Flute Length — in (LCF)0.9449"
Flute Length — mm (LCF)24.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1811"
Connection Dia. — mm (DCON)4.6 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 6539
Reference Numbers
EDP Number116227
EAN7320760116227
File Type Download
R5204.6 — 3D Model STP Download
R5204.6 — Line Drawing PDF Download
