R5205.9
R5205.9
R5205.9
R5205.9

R5205.9

UGC DOR5981269
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$92.71 CAD - $92.71 CAD
$92.71 CAD
$92.71 CAD - $92.71 CAD
$92.71 CAD

Vendu en lots de : 1

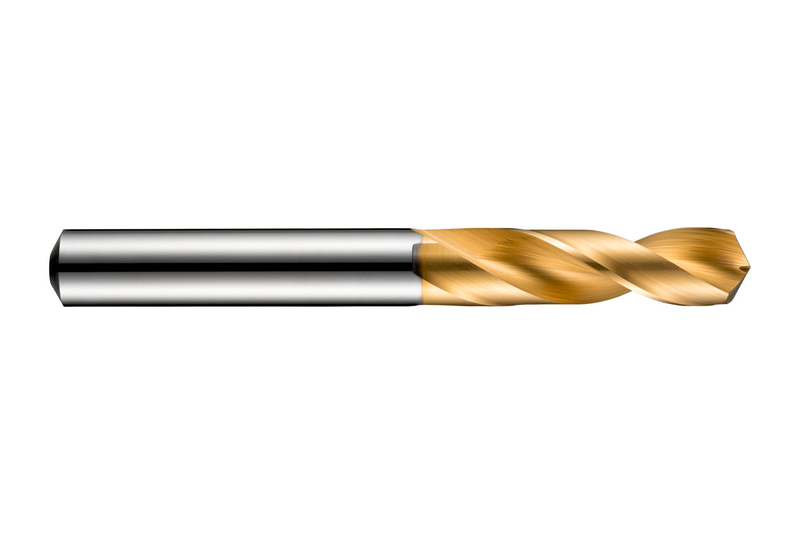

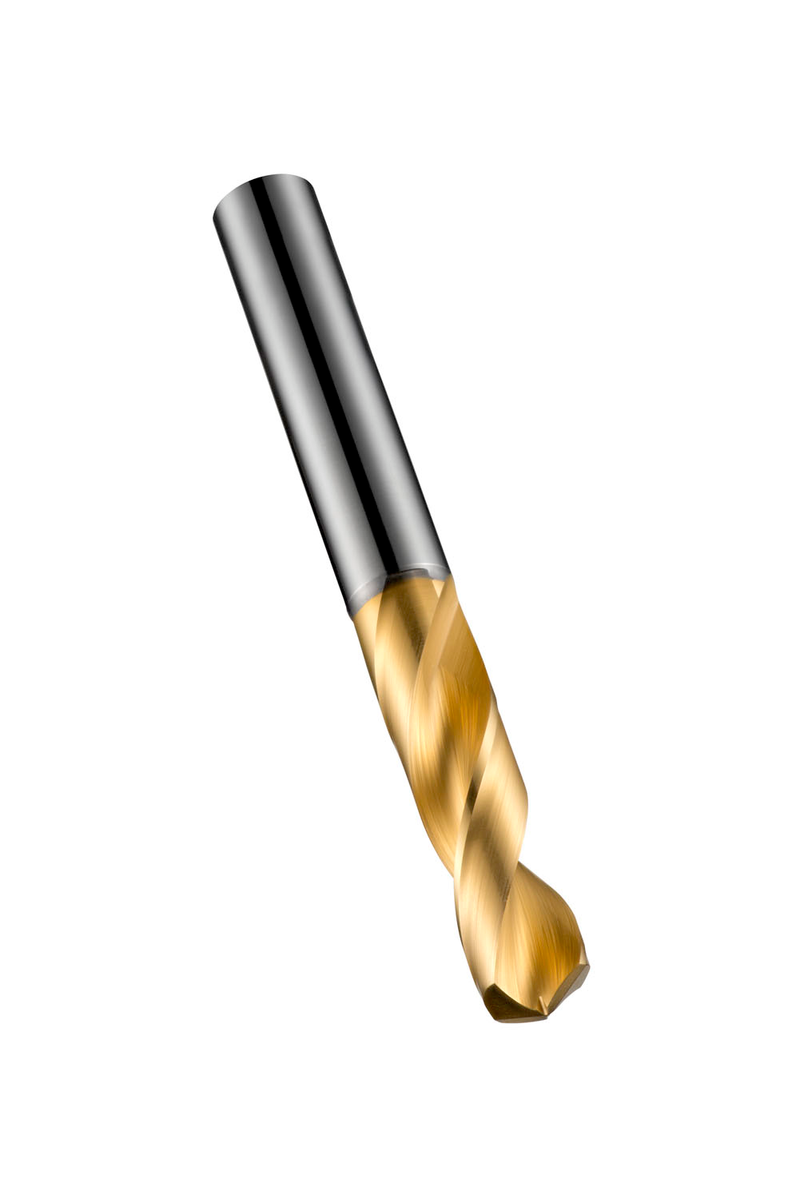

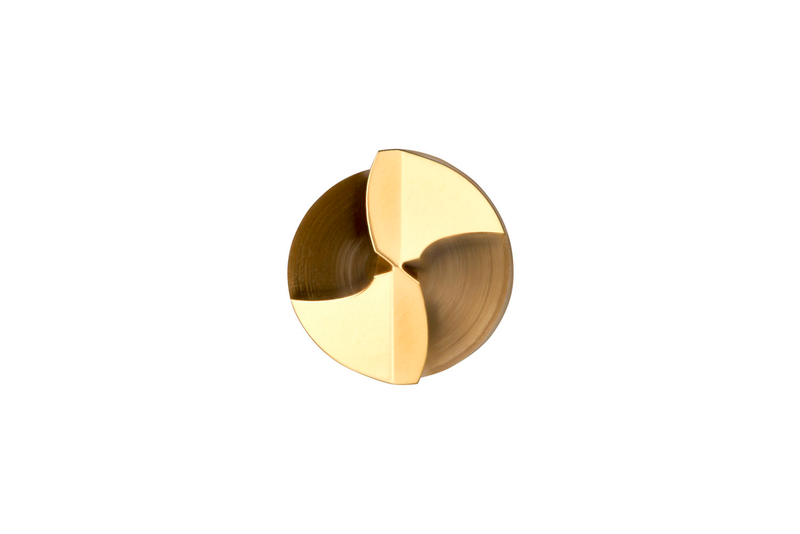

Foret CDX haute performance à queue cylindrique, diamètre 5,9 mm, longueur totale 66 mm et longueur de coupe 28 mm selon la norme DIN 6539, avec pointe à volute 4 facettes de 130°, en carbure monobloc avec revêtement TiN pour le perçage à 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5205.9
GradeTiN
Product Number5981269
Product FamilyR520

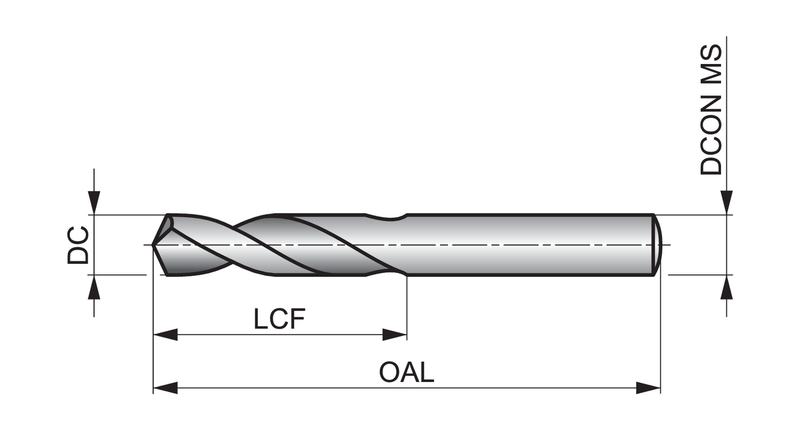

Dimensions
Cutting Diameter — in (DC)0.2323"
Cutting Diameter — mm (DC)5.9 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)1.1024"
Flute Length — mm (LCF)28.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.2323"
Connection Dia. — mm (DCON)5.9 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 6539
Reference Numbers
EDP Number116357
EAN7320760116357
File Type Download
R5205.9 — 3D Model STP Download
R5205.9 — Line Drawing PDF Download
