S803HB10.0
S803HB10.0
S803HB10.0
S803HB10.0

S803HB10.0

UGC DOR5982517
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.13 CAD - $104.13 CAD
$104.13 CAD
$104.13 CAD - $104.13 CAD
$104.13 CAD

Vendu en lots de : 1

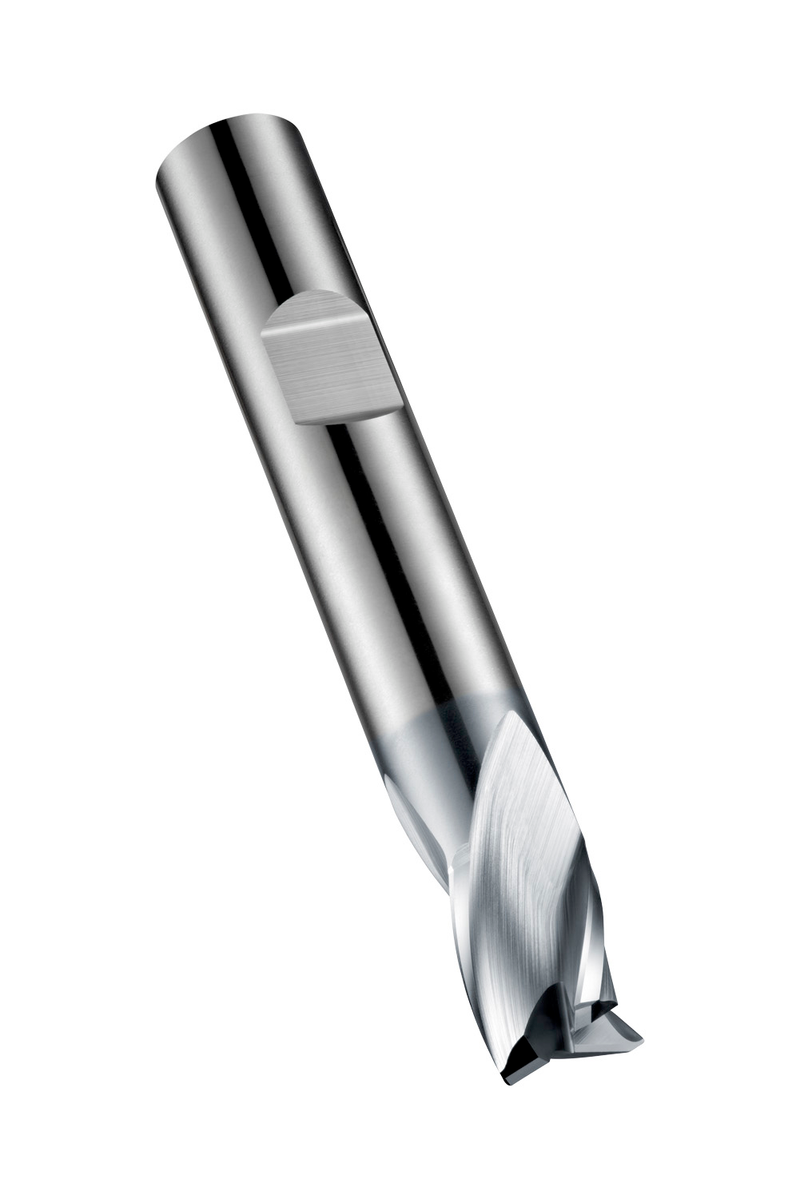

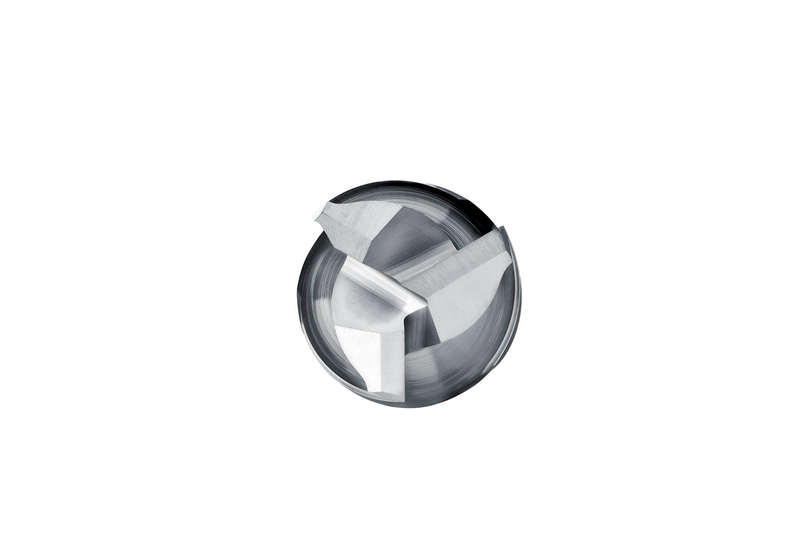

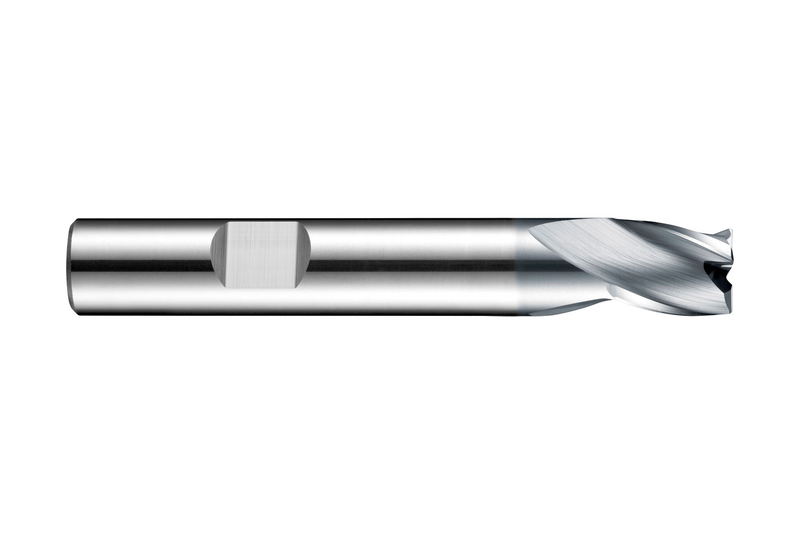

Fraise à rainurer à queue cylindrique série extra-courte, 3 dents, diamètre 10mm avec une longueur de coupe de 11mm, une longueur totale de 66mm et des bords chanfreinés à 45° de 0,2mm, selon la norme DIN 6527 K avec un queue Weldon de 10mm, en carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de dépouille de 9° pour le surfaçage en bout, le plongée, le fraisage de rainures et l'usinage en rampe dans les aciers et aciers moulés, les aciers inoxydables ferritiques, martensitiques et austénitiques, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S803HB10.0
GradeAlCrN
Product Number5982517
Product FamilyS803HB
Insert Geometry
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm

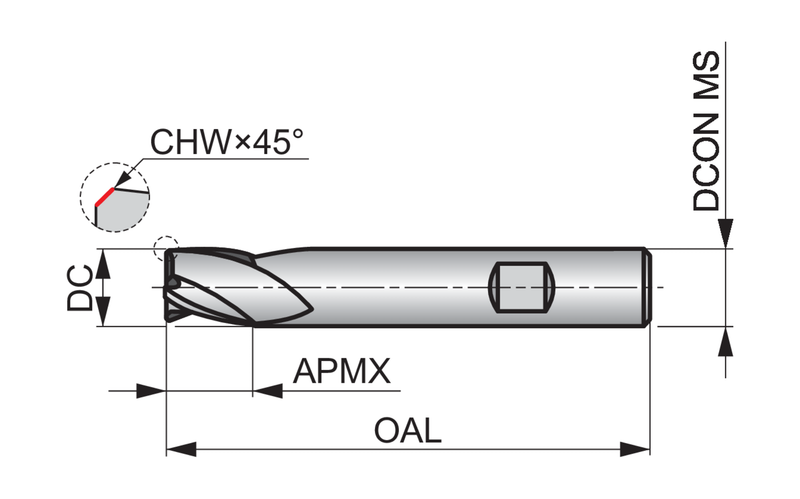

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 K
Reference Numbers
EDP Number641491
EAN7320760641491
File Type Download
S803HB10.0 — 3D Model STP Download
S803HB10.0 — 2D Model DXF Download
S803HB10.0 — Line Drawing PDF Download
