UGC DOR5982546
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$367.36 CAD - $367.36 CAD
$367.36 CAD
$367.36 CAD - $367.36 CAD
$367.36 CAD

Vendu en lots de : 1

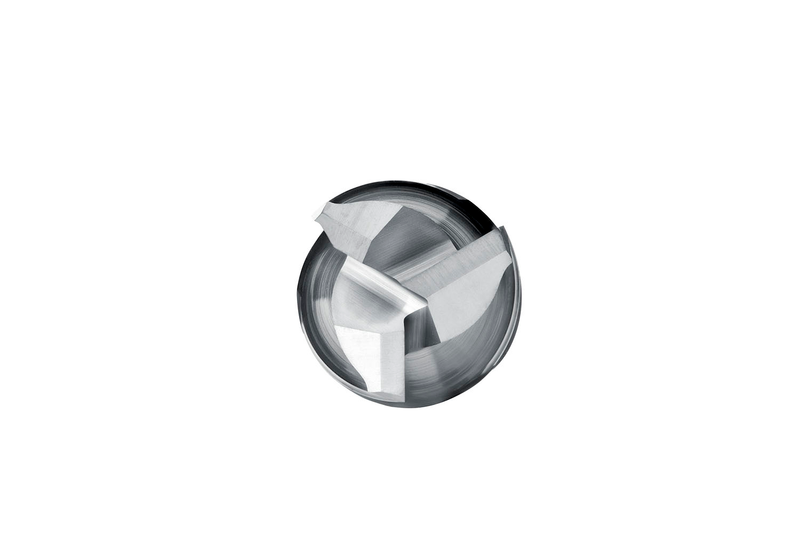

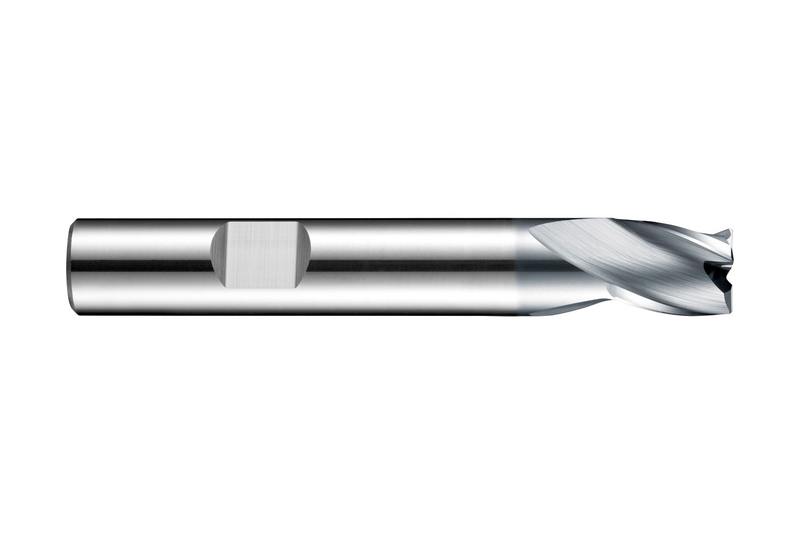

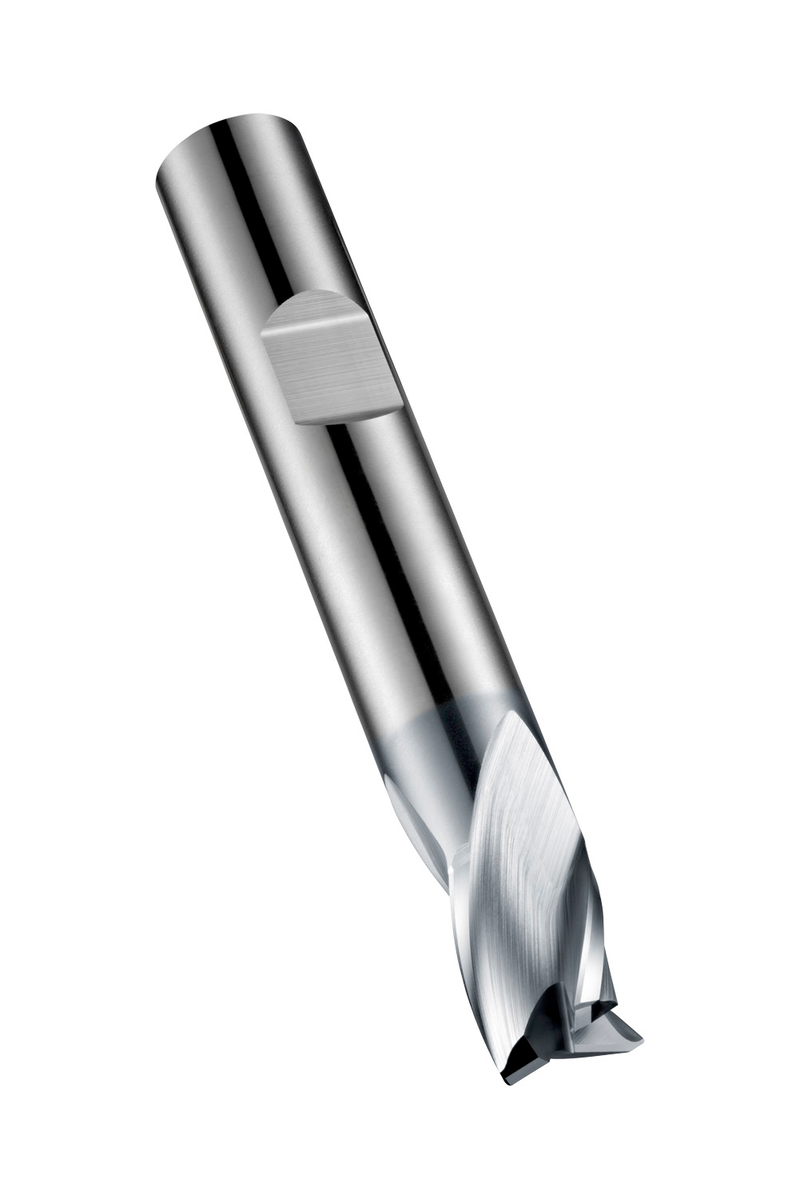

Fraise à rainurer série extra courte à 3 dents, diamètre 20mm, longueur de coupe 20mm, longueur totale 92mm, avec chanfreins d'angle à 45° de 0.3mm, conforme à la norme DIN 6527 K avec queue Weldon 20mm, carbure monobloc avec revêtement AlCrN, hélice à 28° et angle de dépouille à 9° pour le fraisage d'épaulements, le plongement, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte, l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S803HB20.0
GradeAlCrN
Product Number5982546
Product FamilyS803HB
Insert Geometry

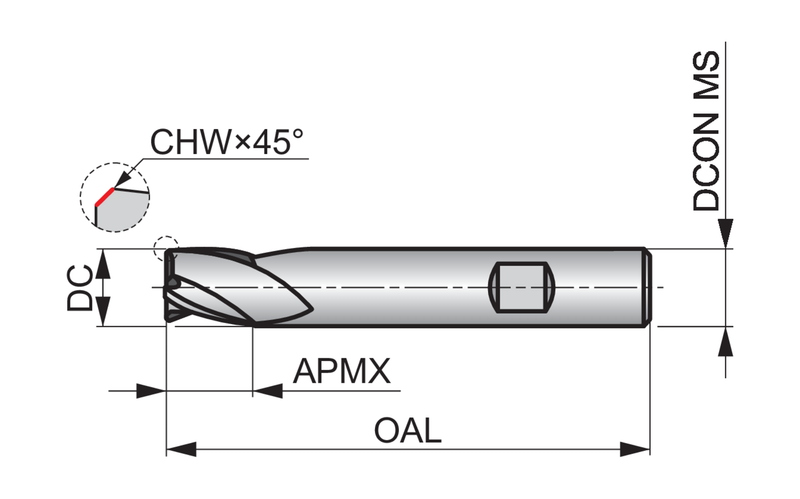

Depth of Cut Max — in (APMX)0.7874"
Depth of Cut Max — mm (APMX)20.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 K
Reference Numbers
EDP Number641590
EAN7320760641590
File Type Download
S803HB20.0 — 3D Model STP Download
S803HB20.0 — 2D Model DXF Download
S803HB20.0 — Line Drawing PDF Download
