S803HB3.8
S803HB3.8
S803HB3.8
S803HB3.8

S803HB3.8

UGC DOR5982551
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.37 CAD - $62.37 CAD
$62.37 CAD
$62.37 CAD - $62.37 CAD
$62.37 CAD

Vendu en lots de : 1

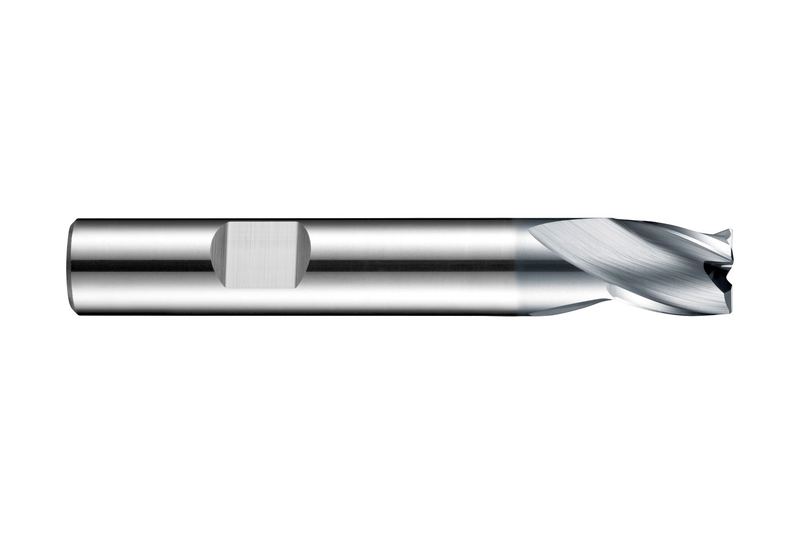

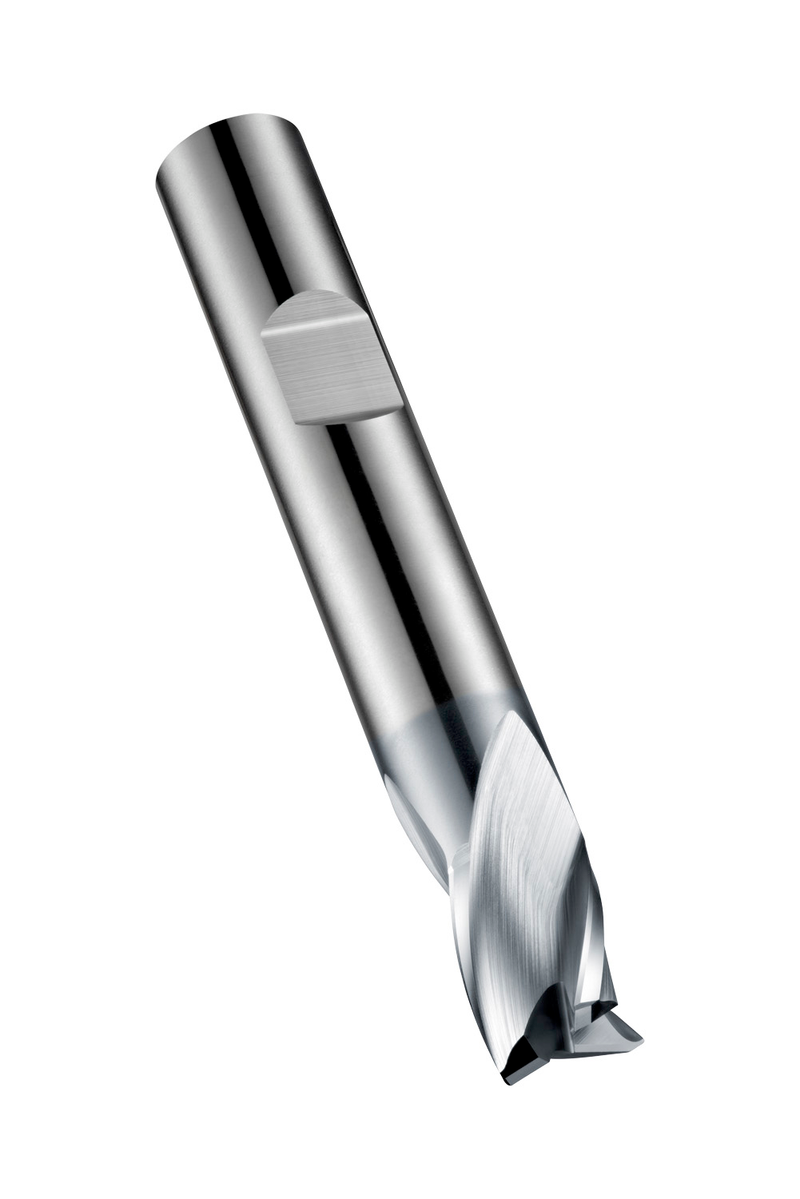

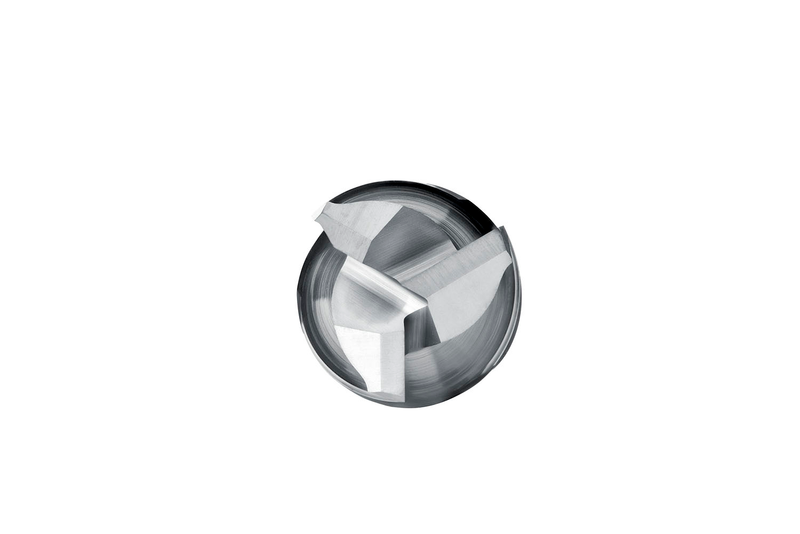

Fraise à rainurer à queue cylindrique, série extra-courte, 3 dents, diamètre 3,8 mm, longueur de coupe 5 mm, longueur totale 54 mm et chanfrein 45° de 0,08 mm, conformément à la norme DIN 6527 K avec une queue Weldon 6 mm, carbure monobloc avec revêtement AlCrN, hélice 28° et angle de dépouille 9° pour le fraisage d'épaulements, le plongement, le fraisage de rainures et le ramping dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S803HB3.8
GradeAlCrN
Product Number5982551
Product FamilyS803HB
Insert Geometry
Depth of Cut Max — in (APMX)0.1969"
Depth of Cut Max — mm (APMX)5.0 mm

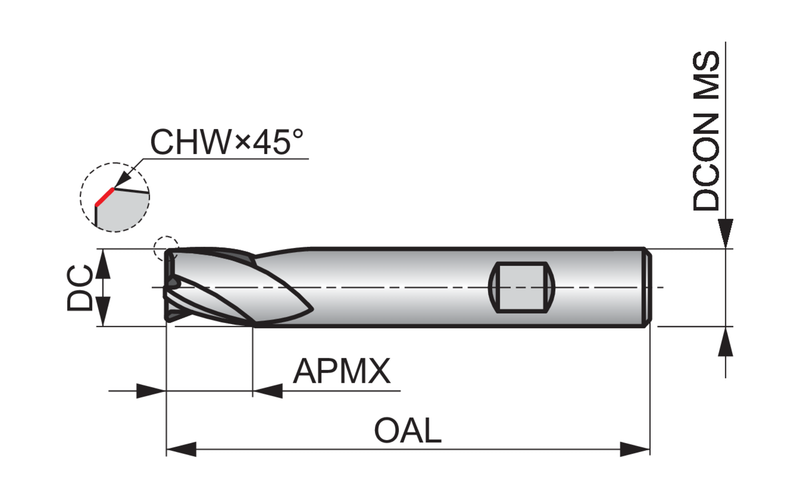

Dimensions
Cutting Diameter — in (DC)0.1496"
Cutting Diameter — mm (DC)3.8 mm
Overall Length — in (OAL)2.126"
Overall Length — mm (OAL)54.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 K
Reference Numbers
EDP Number641361
EAN7320760641361
File Type Download
S803HB3.8 — 3D Model STP Download
S803HB3.8 — 2D Model DXF Download
S803HB3.8 — Line Drawing PDF Download
