S803HB4.0
S803HB4.0
S803HB4.0
S803HB4.0

S803HB4.0

UGC DOR5982553
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$54.97 CAD - $54.97 CAD
$54.97 CAD
$54.97 CAD - $54.97 CAD
$54.97 CAD

Vendu en lots de : 1

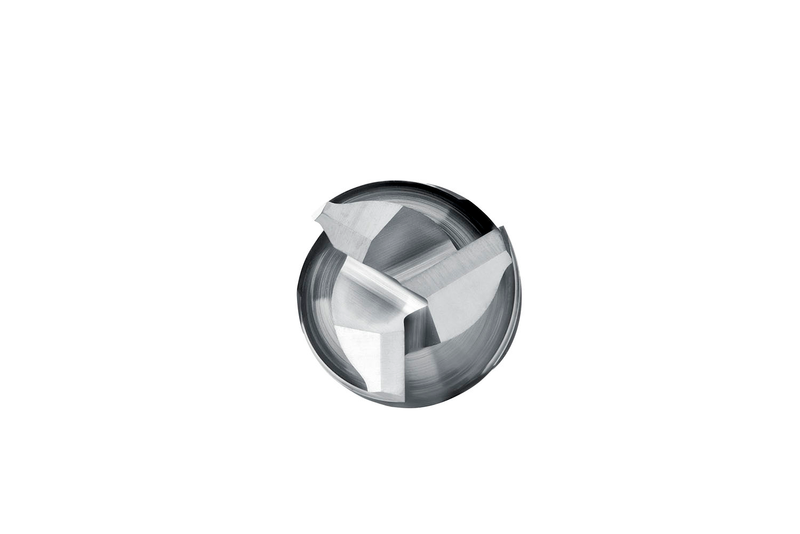

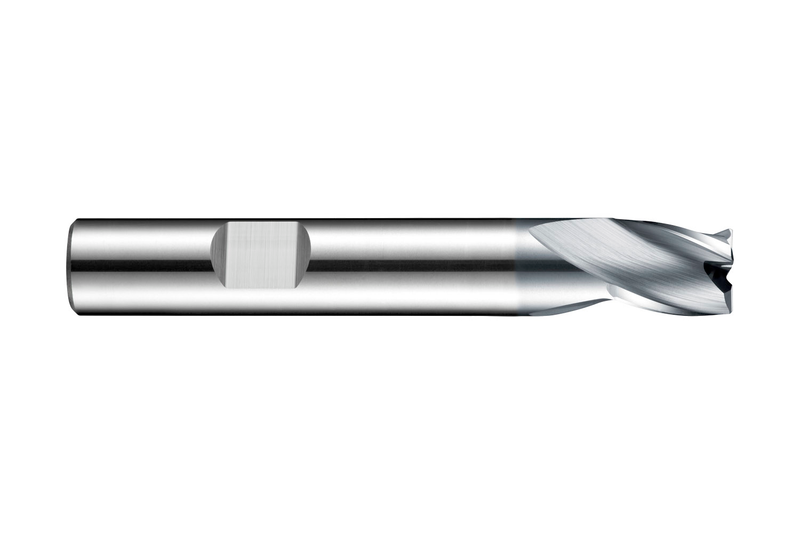

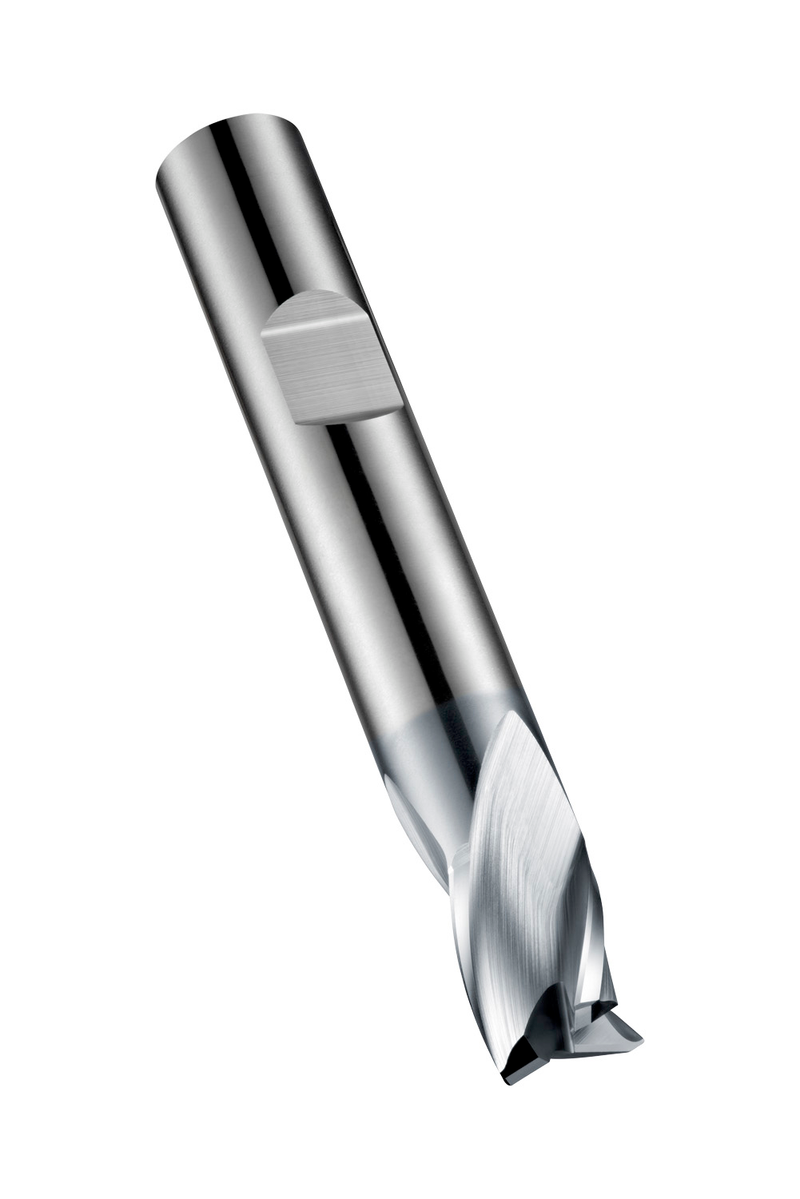

Fraise-scie à rainurer série extra-courte à 3 dents, diamètre 4mm, longueur de coupe 5mm, longueur totale 54mm et chanfrein 45° de 0.13mm, selon la norme DIN 6527 K avec une queue Weldon de 6mm, carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de dépouille de 9° pour le fraisage d'épaulements, le plongée, le fraisage de rainures et le fraisage en rampe dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S803HB4.0
GradeAlCrN
Product Number5982553
Product FamilyS803HB
Insert Geometry
Depth of Cut Max — in (APMX)0.1969"
Depth of Cut Max — mm (APMX)5.0 mm

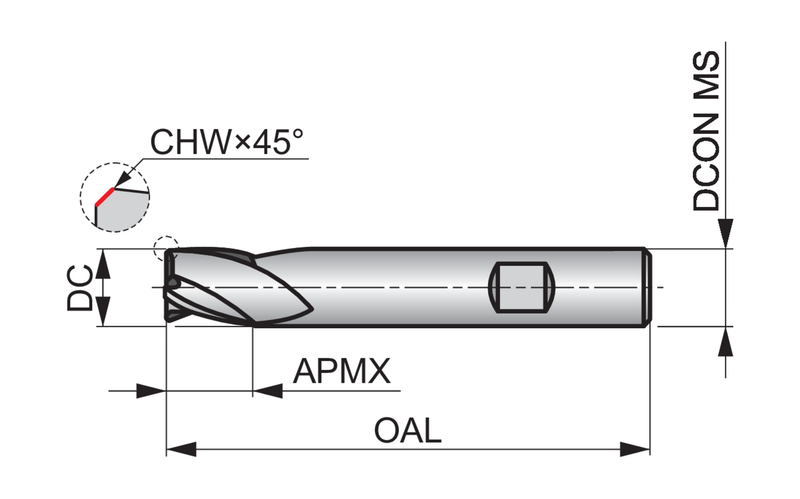

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.126"
Overall Length — mm (OAL)54.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 K
Reference Numbers
EDP Number641378
EAN7320760641378
File Type Download
S803HB4.0 — 3D Model STP Download
S803HB4.0 — 2D Model DXF Download
S803HB4.0 — Line Drawing PDF Download
