S803HB6.75
S803HB6.75
S803HB6.75
S803HB6.75

S803HB6.75

UGC DOR5982567
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$84.57 CAD - $84.57 CAD
$84.57 CAD
$84.57 CAD - $84.57 CAD
$84.57 CAD

Vendu en lots de : 1

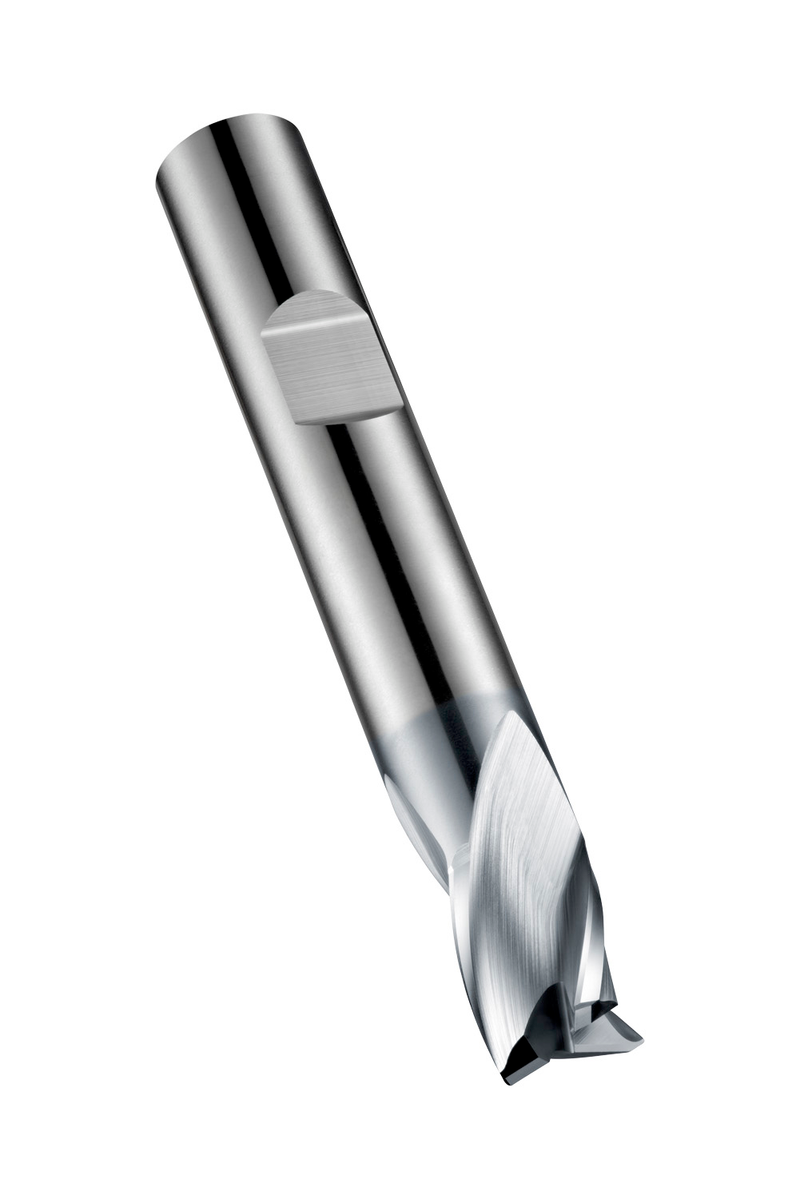

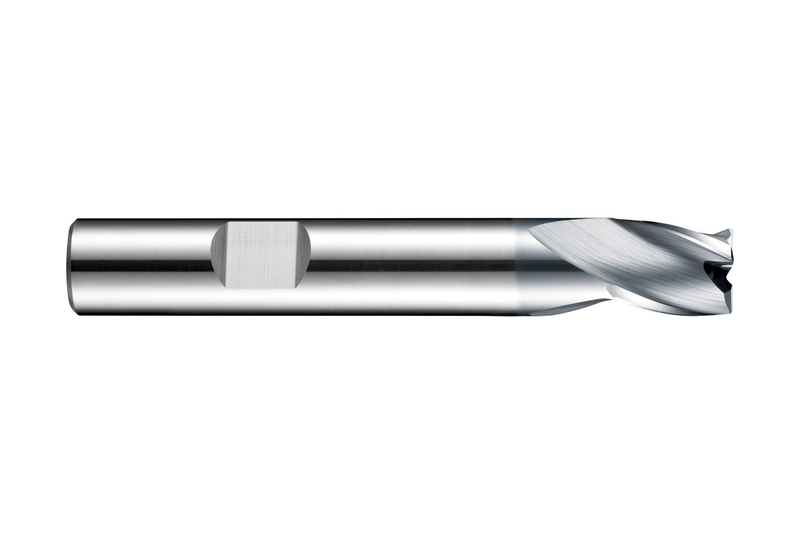

Fraise-scie à rainurer série extra-courte à 3 dents, diamètre 6,75 mm avec longueur de coupe de 8 mm, longueur totale de 58 mm et chanfrein d'angle à 45° de 0,13 mm, conforme à la norme DIN 6527 K avec queue Weldon de 8 mm, en carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de dépouille de 9° pour le fraisage d'épaulements, le plongeage, le fraisage de rainures et le surfaçage dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S803HB6.75
GradeAlCrN
Product Number5982567
Product FamilyS803HB

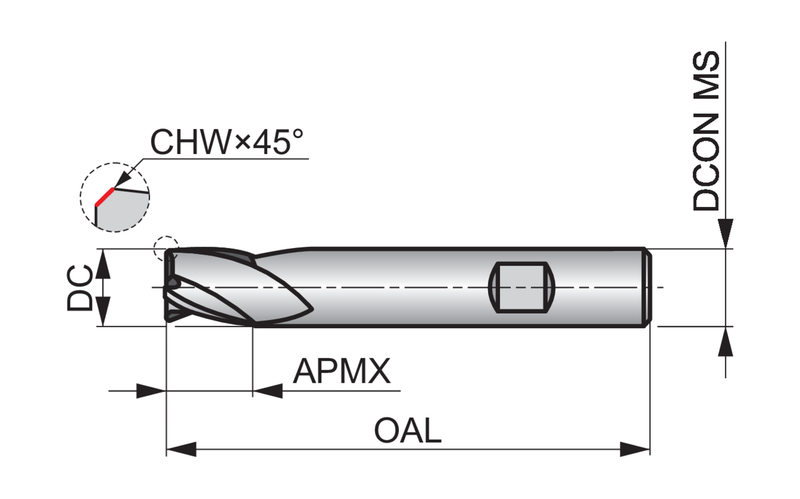

Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.2657"
Cutting Diameter — mm (DC)6.75 mm
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm

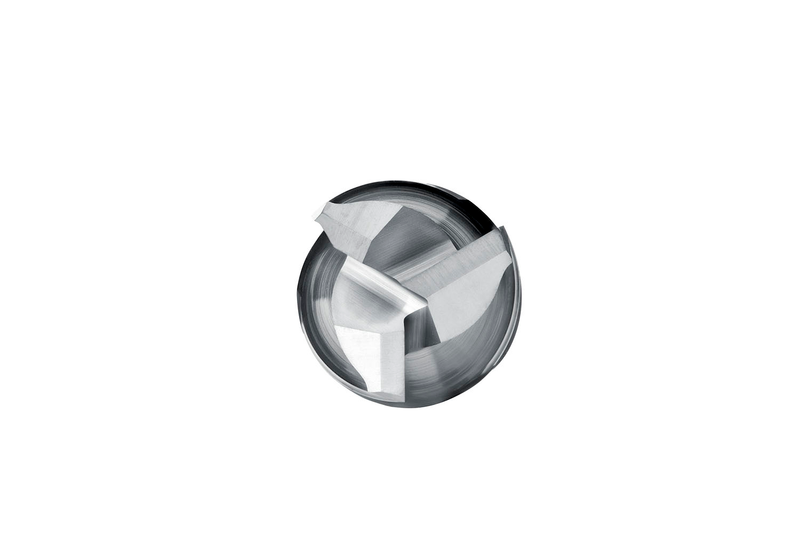

Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 K
Reference Numbers
EDP Number641439
EAN7320760641439
File Type Download
S803HB6.75 — 3D Model STP Download
S803HB6.75 — 2D Model DXF Download
S803HB6.75 — Line Drawing PDF Download
