S803HA7.0
S803HA7.0
S803HA7.0
S803HA7.0

S803HA7.0

UGC DOR5982576
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$80.34 CAD - $80.34 CAD
$80.34 CAD
$80.34 CAD - $80.34 CAD
$80.34 CAD

Vendu en lots de : 1

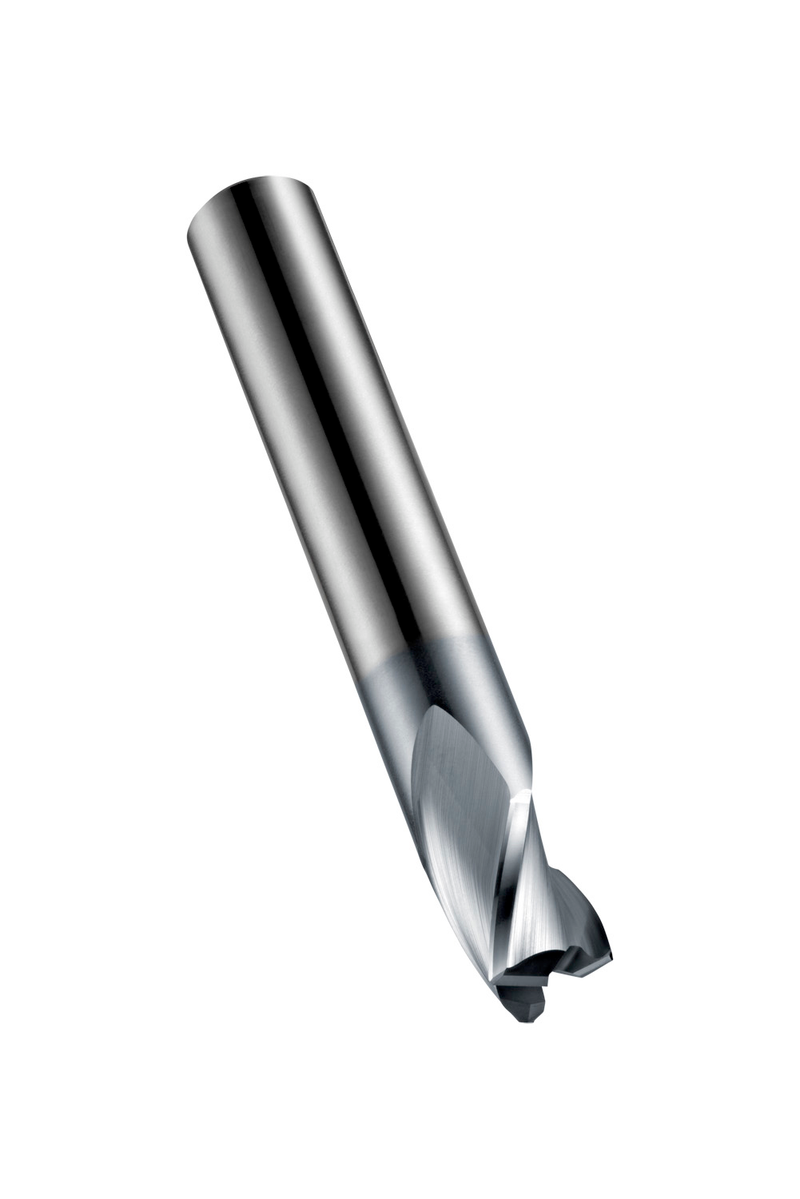

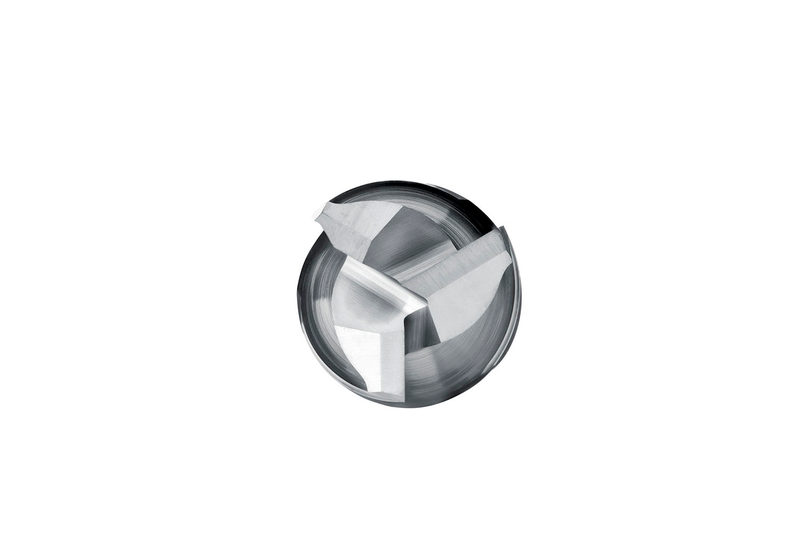

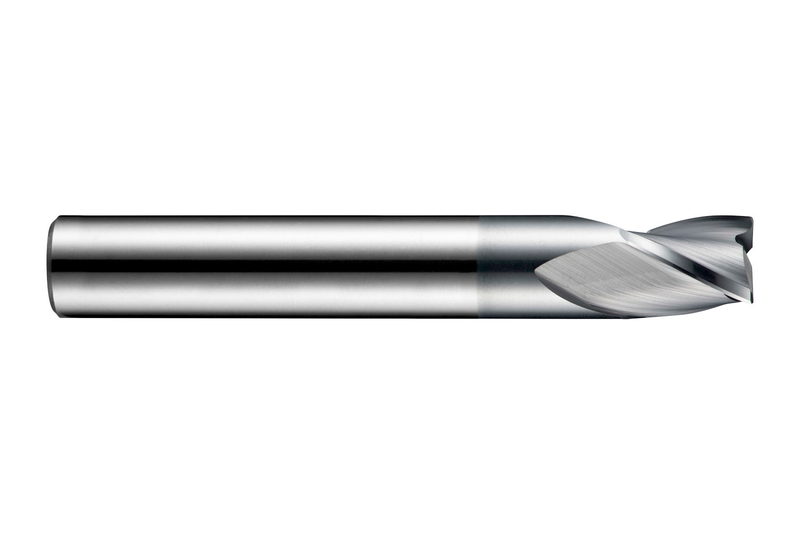

Fraise courte 3 dents à queue cylindrique, diamètre 7mm, longueur de coupe 8mm, longueur totale 58mm et chanfrein d'angle de 0,13mm à 45°, selon la norme DIN 6527 K avec queue cylindrique de 8mm, carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de dépouille de 9° pour le fraisage d'épaulement, le plongement, le fraisage de rainures et le fraisage en rampe dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S803HA7.0
GradeAlCrN
Product Number5982576
Product FamilyS803HA
Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm

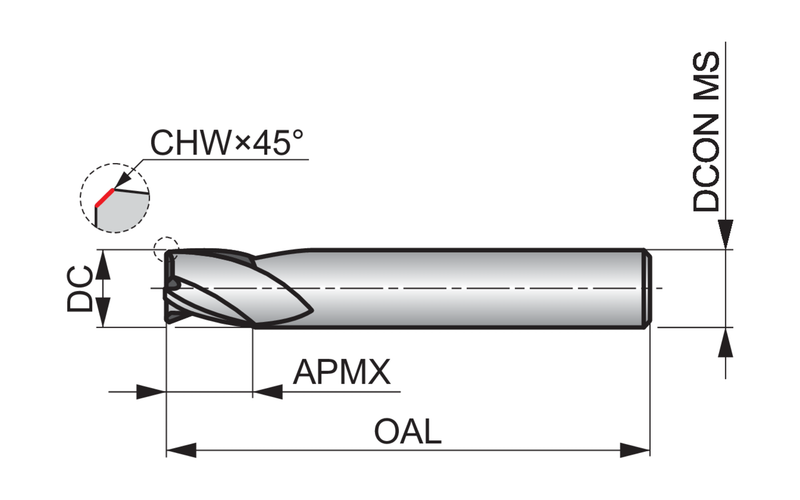

Dimensions
Cutting Diameter — in (DC)0.2756"
Cutting Diameter — mm (DC)7.0 mm
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 K
Reference Numbers
EDP Number641149
EAN7320760641149
File Type Download
S803HA7.0 — 3D Model STP Download
S803HA7.0 — 2D Model DXF Download
S803HA7.0 — Line Drawing PDF Download
