UGC DOR5982577
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$150.11 CAD - $150.11 CAD
$150.11 CAD
$150.11 CAD - $150.11 CAD
$150.11 CAD

Vendu en lots de : 1

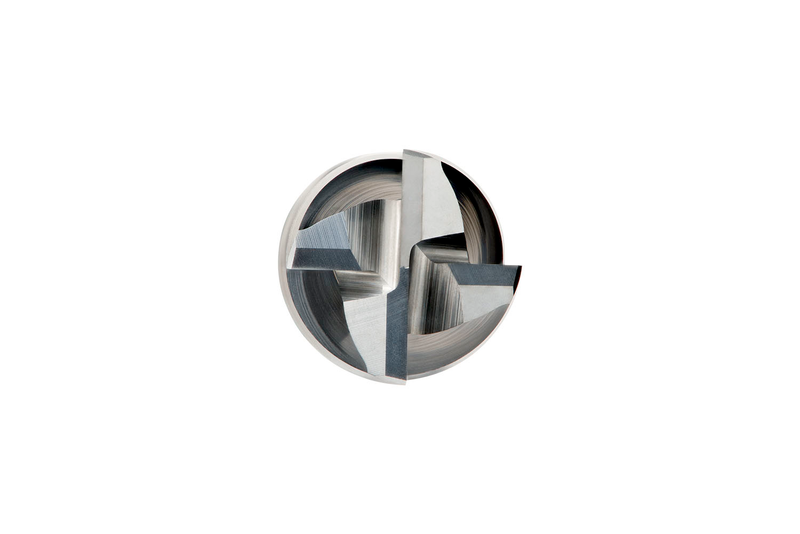

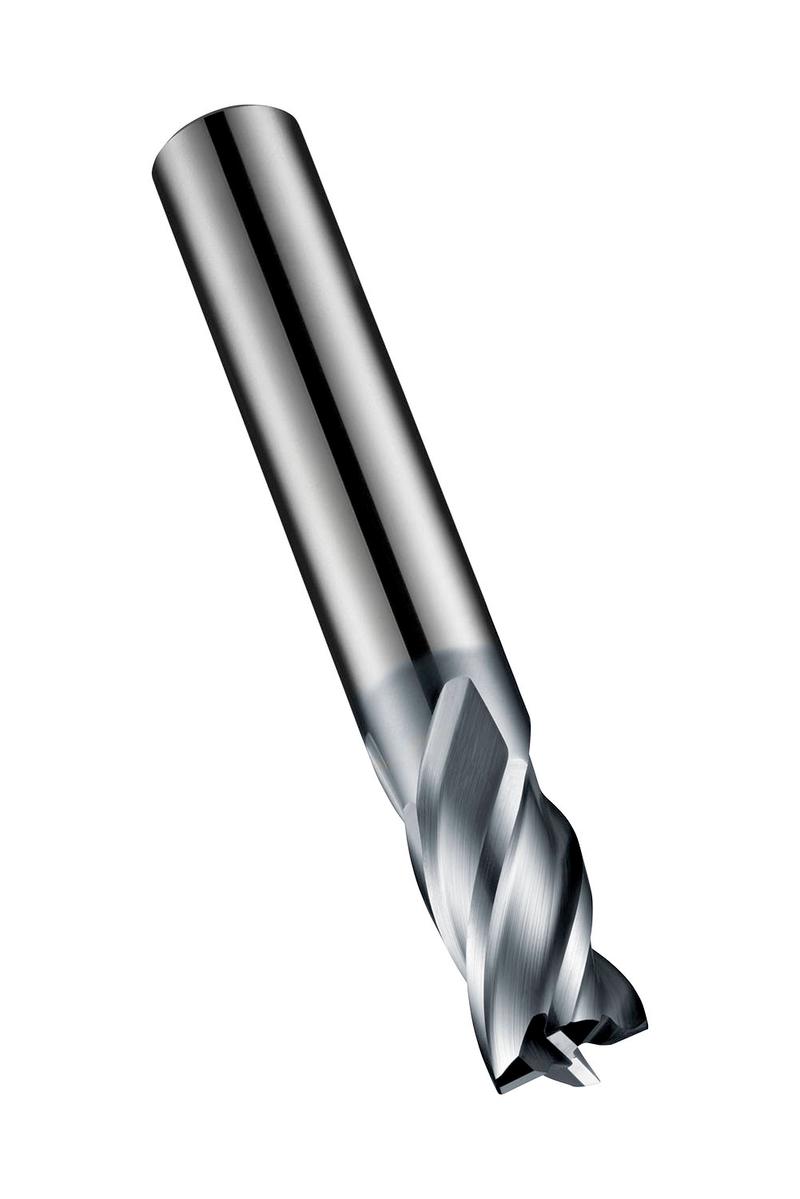

Fraise 4 dents série extra-courte, diamètre 12 mm avec longueur de coupe 16 mm, longueur totale 73 mm et chanfrein d'angle 45° de 0,2 mm, selon la norme DIN 6527 K avec queue cylindrique 12 mm, carbure monobloc avec revêtement AlCrN, hélice 34° et angle de dépouille 9° pour le fraisage d'épaulements et le plongée dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S804HA12.0
GradeAlCrN
Product Number5982577
Product FamilyS804HA
Insert Geometry
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm

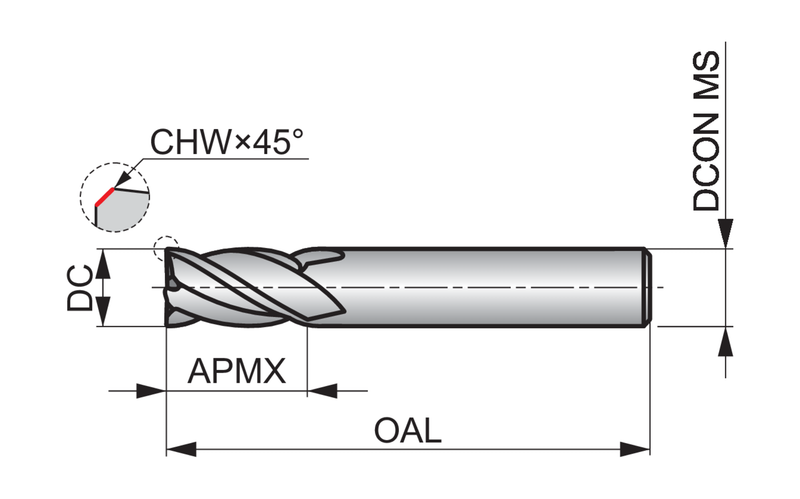

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.874"
Overall Length — mm (OAL)73.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 K
Reference Numbers
EDP Number641675
EAN7320760641675
File Type Download
S804HA12.0 — 3D Model STP Download
S804HA12.0 — 2D Model DXF Download
S804HA12.0 — Line Drawing PDF Download
