UGC DOR5982584
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.86 CAD - $52.86 CAD
$52.86 CAD
$52.86 CAD - $52.86 CAD
$52.86 CAD

Vendu en lots de : 1

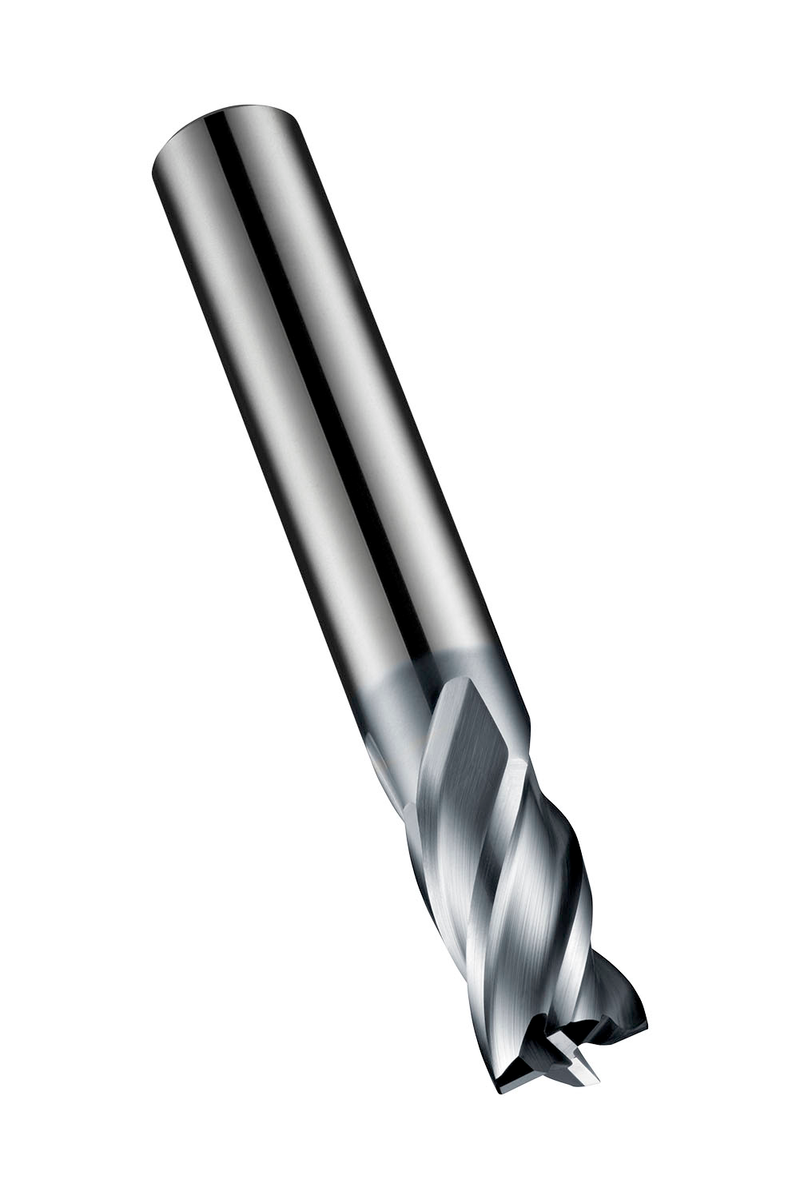

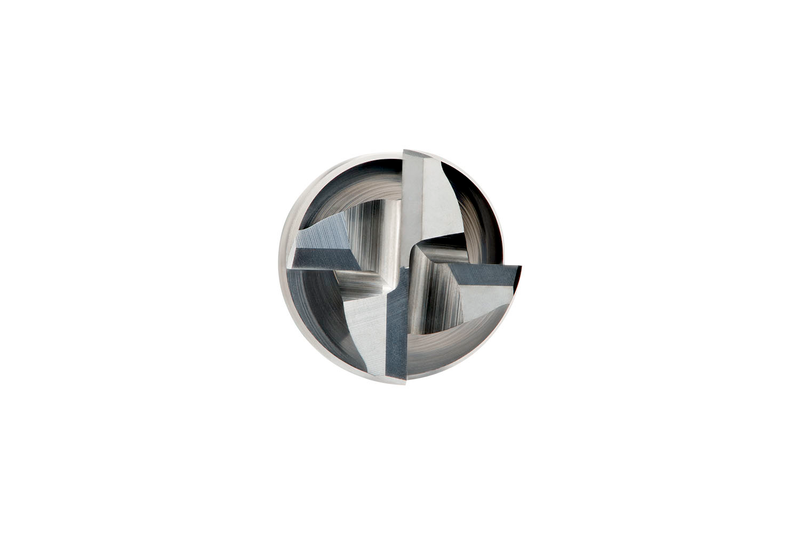

Fraise en bout extra-courte à 4 dents, diamètre 3mm avec une longueur de coupe de 5mm, longueur totale de 50mm et des arêtes chanfreinées de 0,08mm à 45°, selon la norme DIN 6527 K avec une queue cylindrique de 6mm, en carbure monobloc avec revêtement AlCrN, hélice de 34° et angle de dépouille de 9° pour le fraisage d'épaulements et le plongée dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S804HA3.0
GradeAlCrN
Product Number5982584
Product FamilyS804HA

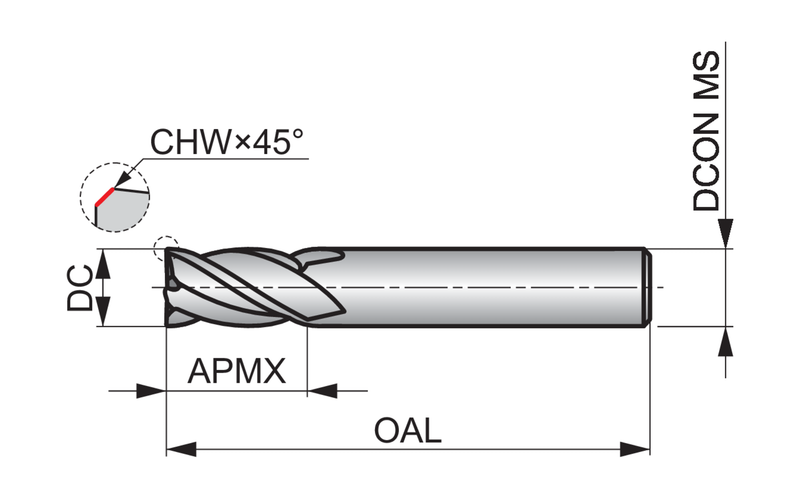

Insert Geometry
Depth of Cut Max — in (APMX)0.1969"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 K
Reference Numbers
EDP Number641613
EAN7320760641613
File Type Download
S804HA3.0 — 3D Model STP Download
S804HA3.0 — 2D Model DXF Download
S804HA3.0 — Line Drawing PDF Download
