UGC DOR5982586
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.61 CAD - $57.61 CAD
$57.61 CAD
$57.61 CAD - $57.61 CAD
$57.61 CAD

Vendu en lots de : 1

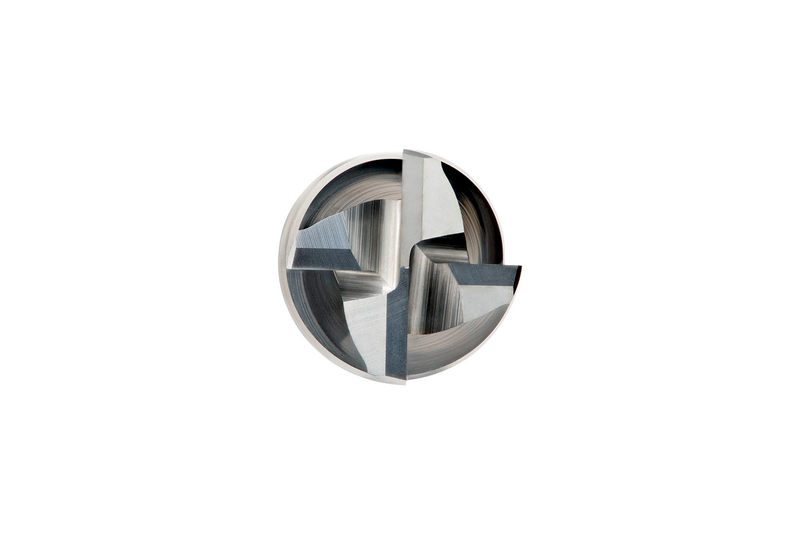

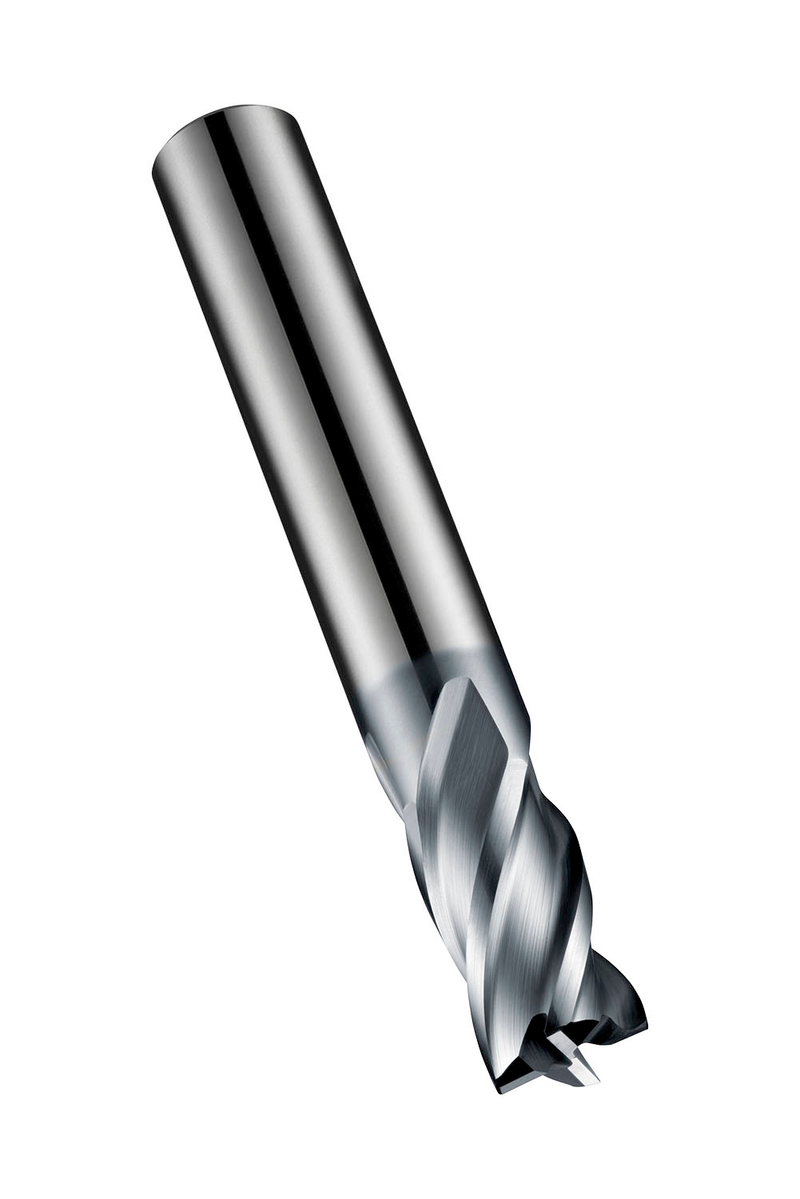

Fraise 4 dents en carbure monobloc, série extra-courte, diamètre 4 mm, longueur de coupe 8 mm, longueur totale 54 mm, chanfrein à 45° de 0,13 mm sur l’arête, conforme à la norme DIN 6527 K, queue cylindrique 6 mm, revêtement AlCrN, hélice 34° et angle de dépouille 9° pour le fraisage d’épaulements et en plongée dans l’acier et l’acier moulé, l’acier inoxydable ferritique, martensitique et austénitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S804HA4.0
GradeAlCrN
Product Number5982586
Product FamilyS804HA
Insert Geometry

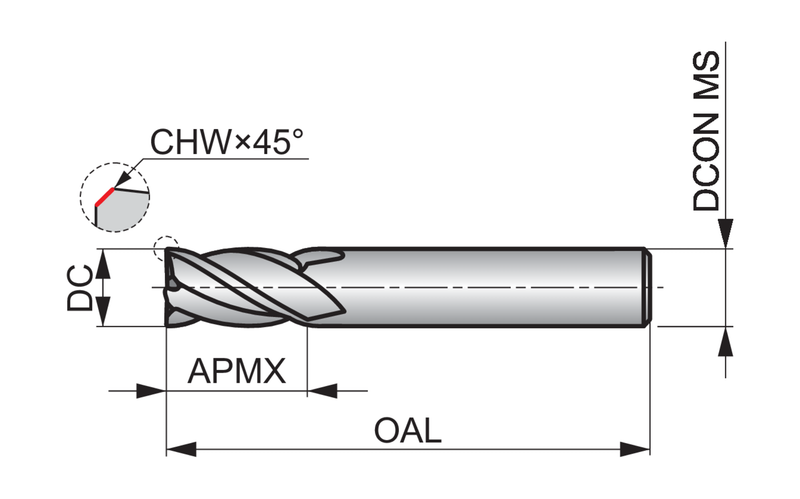

Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.126"
Overall Length — mm (OAL)54.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 K
Reference Numbers
EDP Number641620
EAN7320760641620
File Type Download
S804HA4.0 — 3D Model STP Download
S804HA4.0 — 2D Model DXF Download
S804HA4.0 — Line Drawing PDF Download
