S804HB10.0
S804HB10.0
S804HB10.0
S804HB10.0

S804HB10.0

UGC DOR5982598
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$115.76 CAD - $115.76 CAD
$115.76 CAD
$115.76 CAD - $115.76 CAD
$115.76 CAD

Vendu en lots de : 1

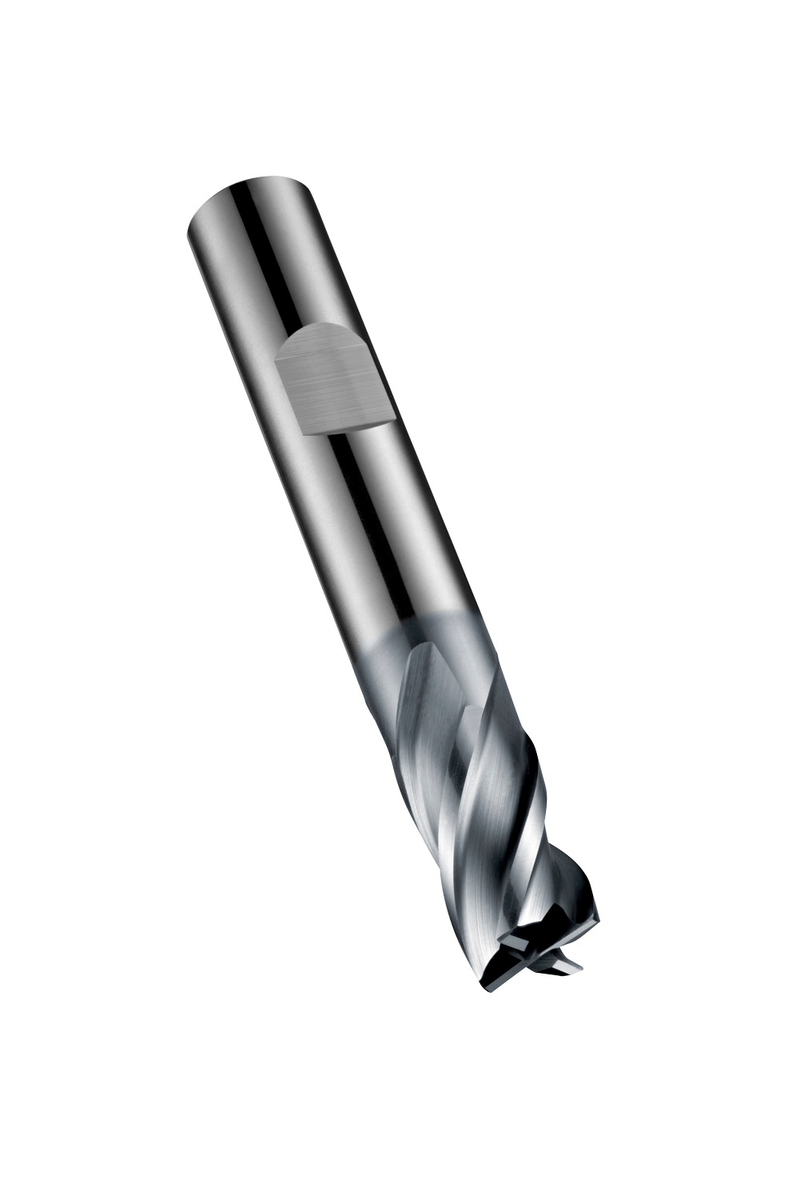

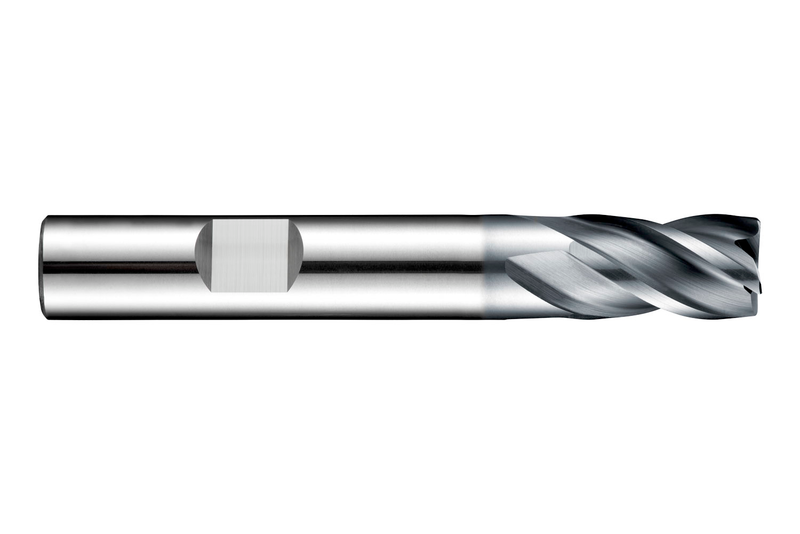

Fraise en bout série extra-courte à 4 dents, diamètre 10mm avec longueur de coupe 14mm, longueur totale 66mm et chanfrein 45° de 0.2mm, selon la norme DIN 6527 K avec une queue Weldon 10mm, en carbure monobloc avec revêtement AlCrN, hélice 34° et angle de dépouille 9° pour le fraisage d'épaulements et en plongée dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S804HB10.0
GradeAlCrN
Product Number5982598
Product FamilyS804HB

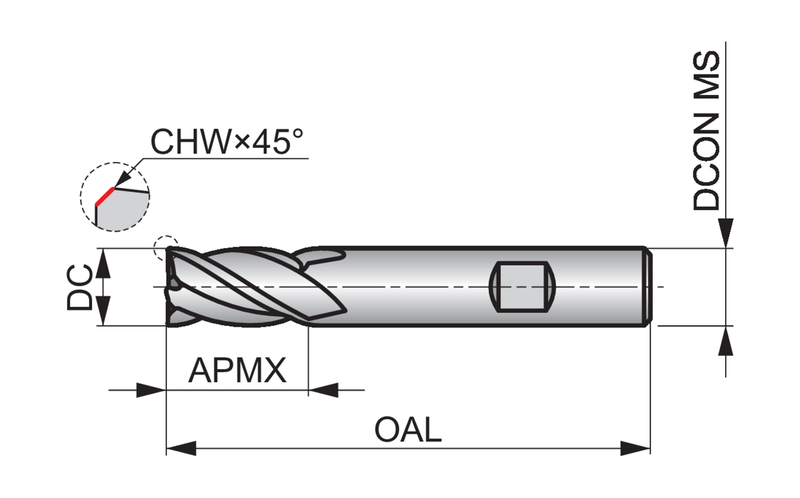

Insert Geometry
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm

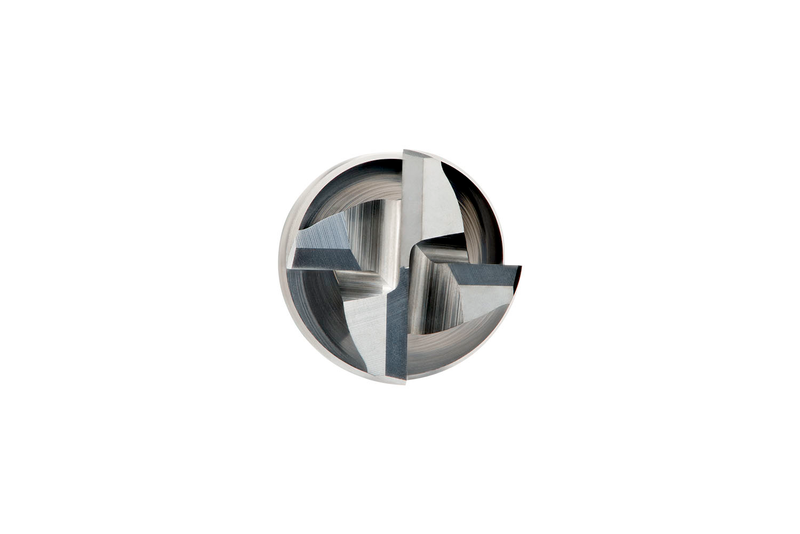

Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 K
Reference Numbers
EDP Number641774
EAN7320760641774
File Type Download
S804HB10.0 — 3D Model STP Download
S804HB10.0 — 2D Model DXF Download
S804HB10.0 — Line Drawing PDF Download
