UGC DOR5982602
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.77 CAD - $106.77 CAD
$106.77 CAD
$106.77 CAD - $106.77 CAD
$106.77 CAD

Vendu en lots de : 1

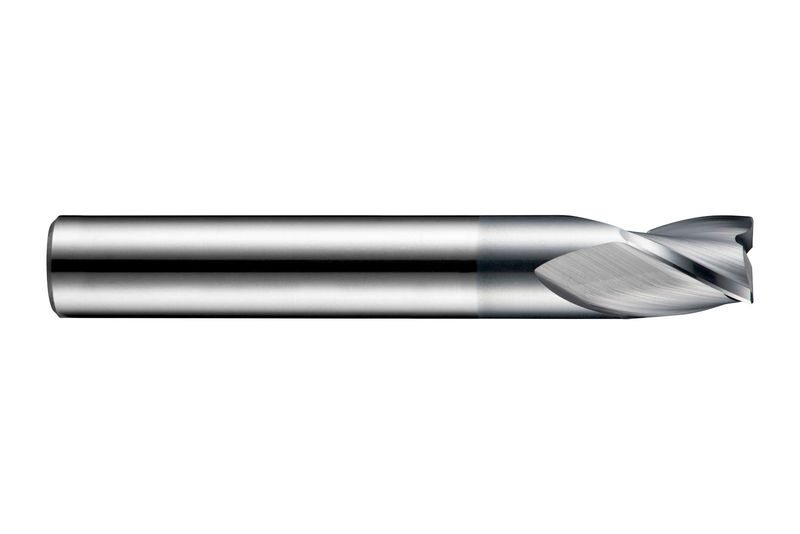

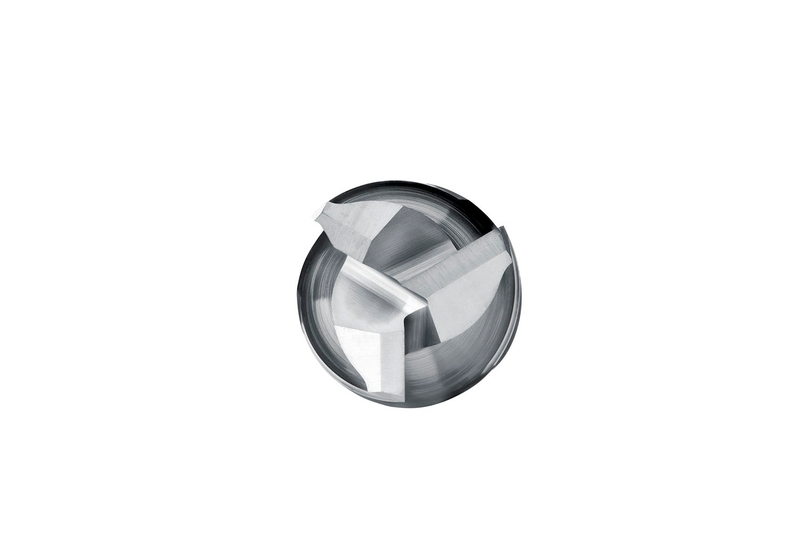

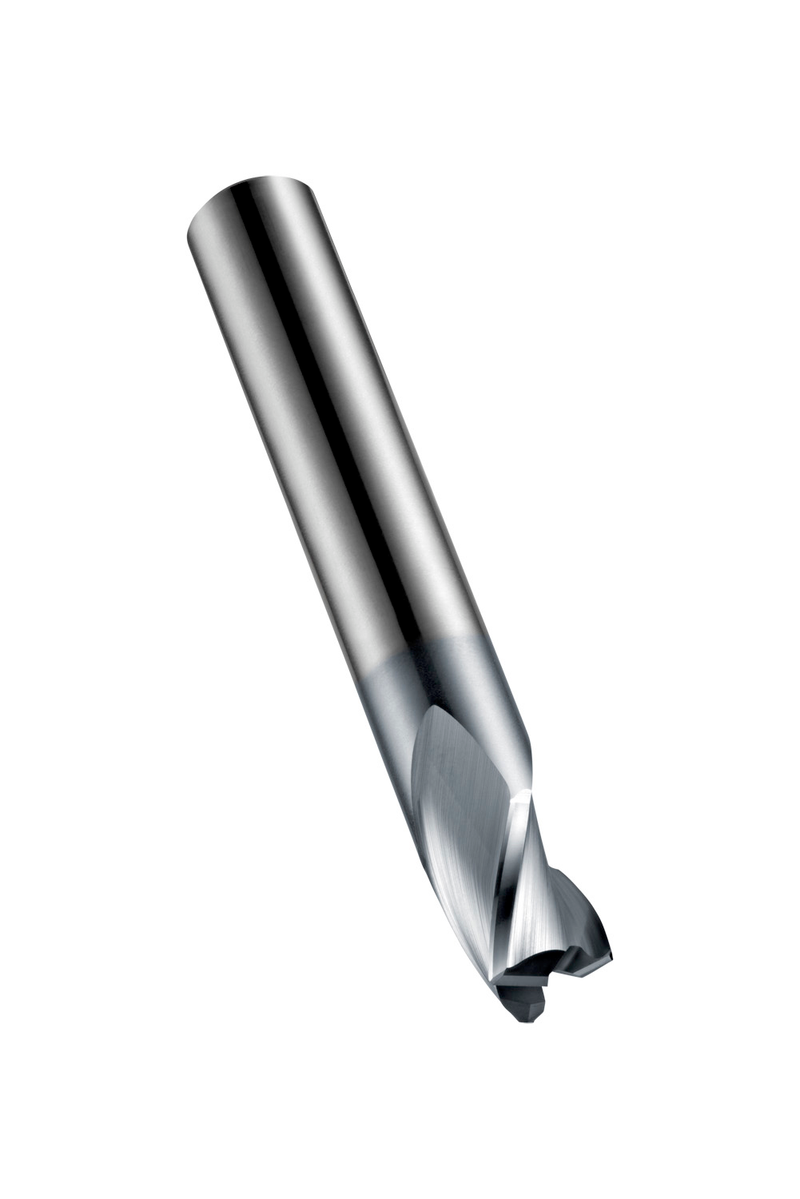

Fraise-scie extra courte à 3 dents, diamètre 9mm avec longueur de coupe de 10mm, longueur totale de 66mm et chanfrein d'angle de 0.2mm à 45°, selon la norme DIN 6527 K avec une queue cylindrique de 10mm, carbure monobloc avec revêtement AlCrN, hélice à 28° et angle de dépouille à 9° pour le fraisage d'épaulements, le plongement, le fraisage de rainures et le fraisage en rampe dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S803HA9.0
GradeAlCrN
Product Number5982602
Product FamilyS803HA
Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm

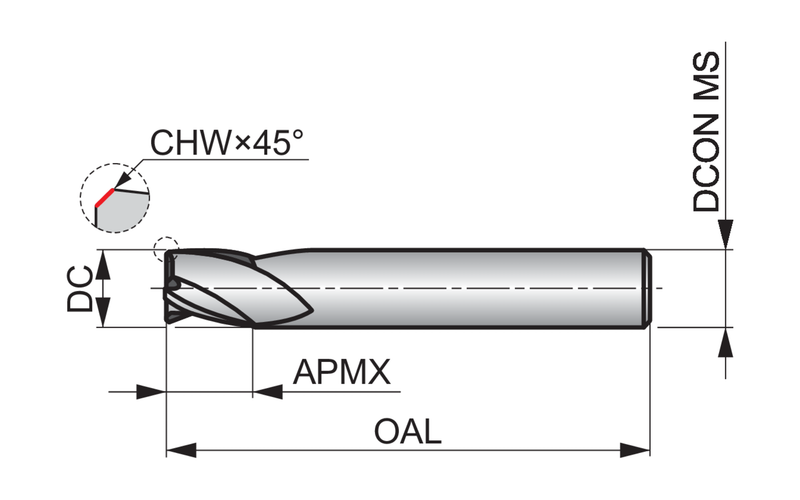

Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 K
Reference Numbers
EDP Number641170
EAN7320760641170
File Type Download
S803HA9.0 — 3D Model STP Download
S803HA9.0 — 2D Model DXF Download
S803HA9.0 — Line Drawing PDF Download
